Adhesive Sponge Rubber Assembly Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the adhesive sponge rubber so that the heat sensing tube is hidden.

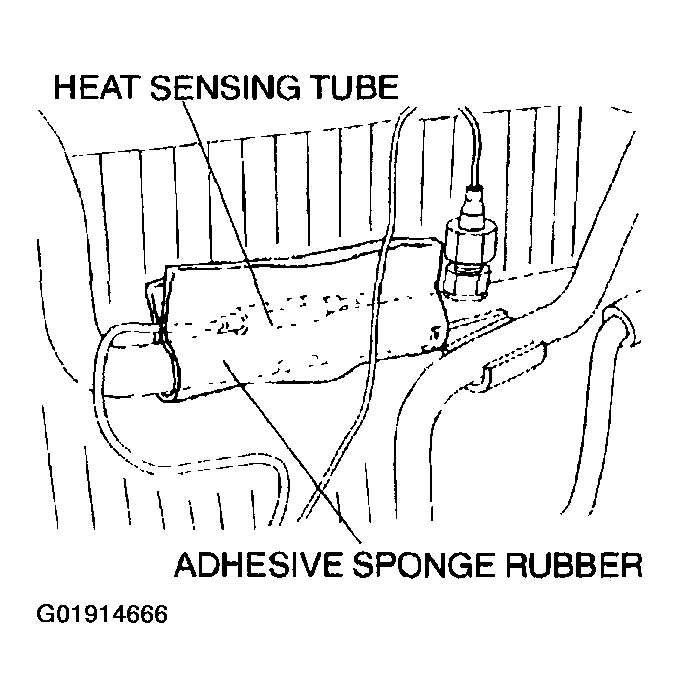

    Fig 1: Attaching Adhesive Sponge Rubber
    G01914666Courtesy of MAZDA MOTORS CORP.
