Front Shock Absorber & Spring Installation Note

Face the mounting block direction indicator toward the rear outboard position, and install the shock absorber.

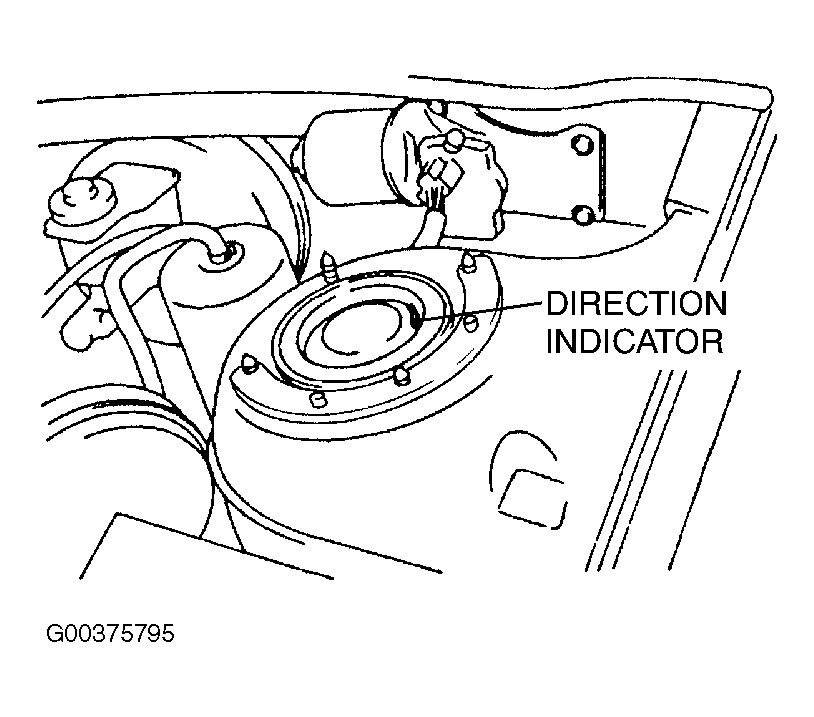

Fig 1: Identifying Directional Indicator
G00375795Courtesy of MAZDA MOTORS CORP.
