Connecting Rod Inspection

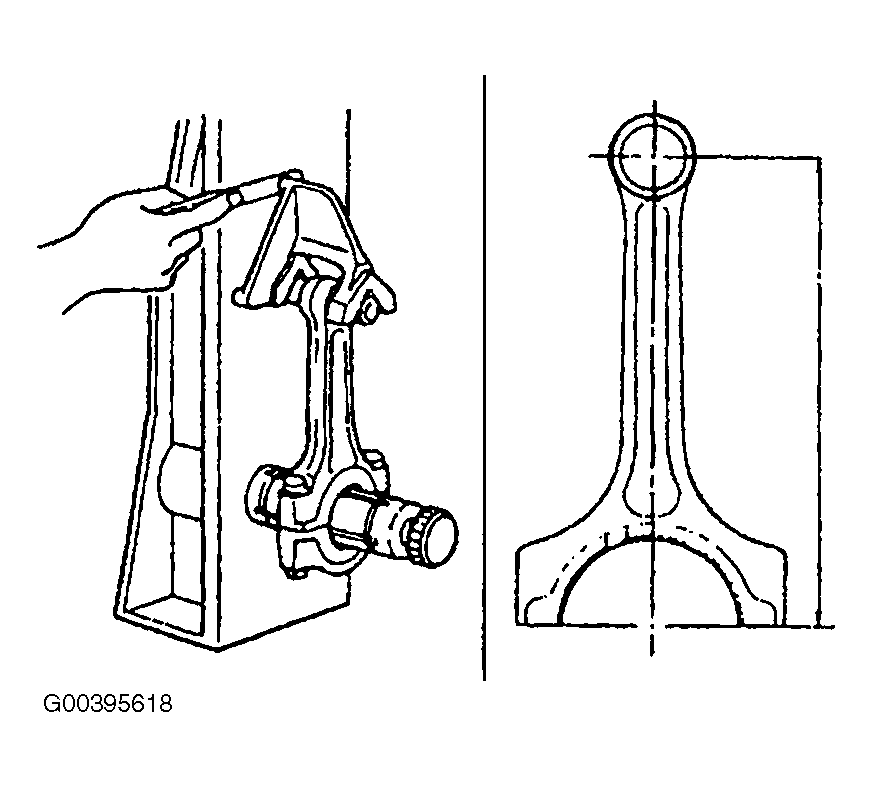

Measure each connecting rod for bending and distortion. Replace the connecting rod as necessary.
Bending
0.05 mm {0.0020 in} max./50 mm {1.97 in}
Distortion
0.05 mm {0.0020 in} max./50 mm {1.97 in}
Center-To-Center Distance
135.15-135.25 mm {5.3209-5.3247 in}
