Keyless Control System

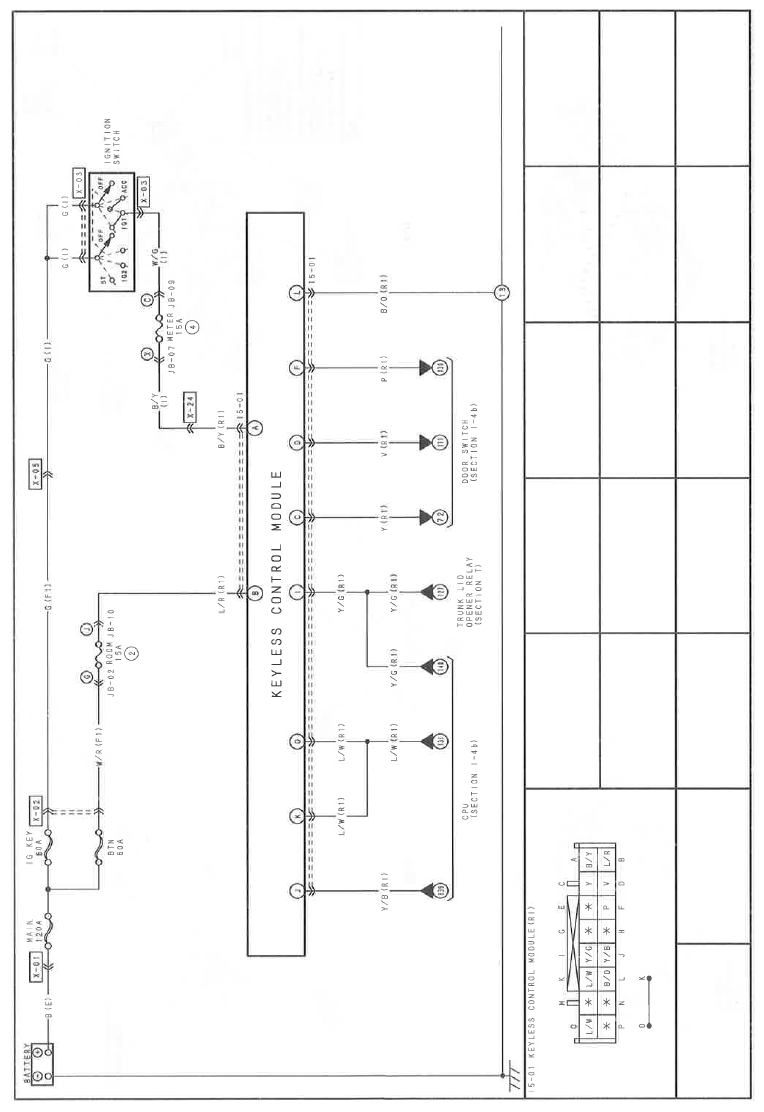

Fig 1: Keyless Control System Wiring Diagram (I-5; 1 Of 2)
G11547841Courtesy of MAZDA MOTORS CORP.
Fig 2: Keyless Control System Wiring Diagram (I-5; 2 Of 2)
G11547842Courtesy of MAZDA MOTORS CORP.
