System Circuit Diagram/Connector Diagram

System circuit diagram/connector diagram

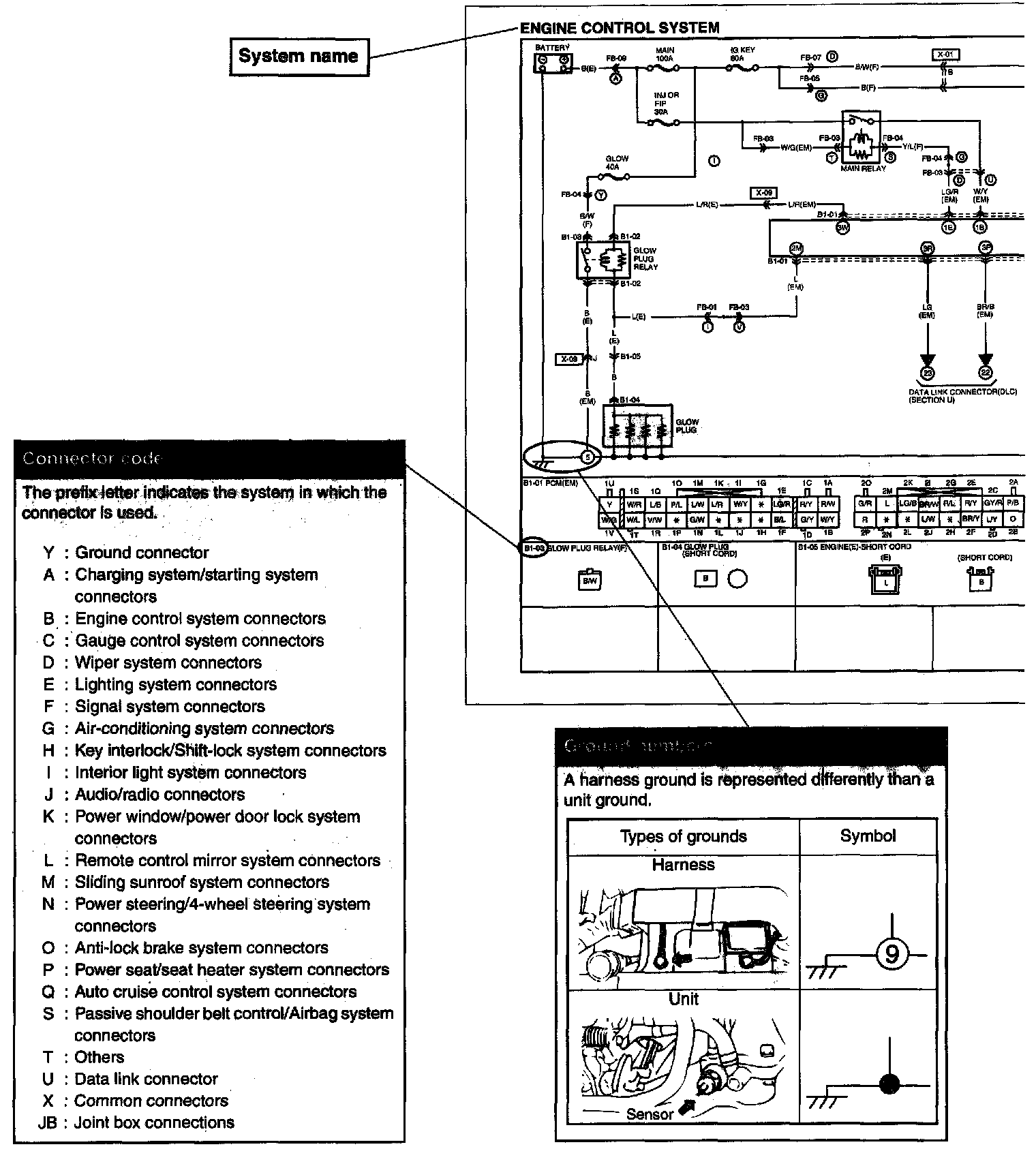

Part 1:

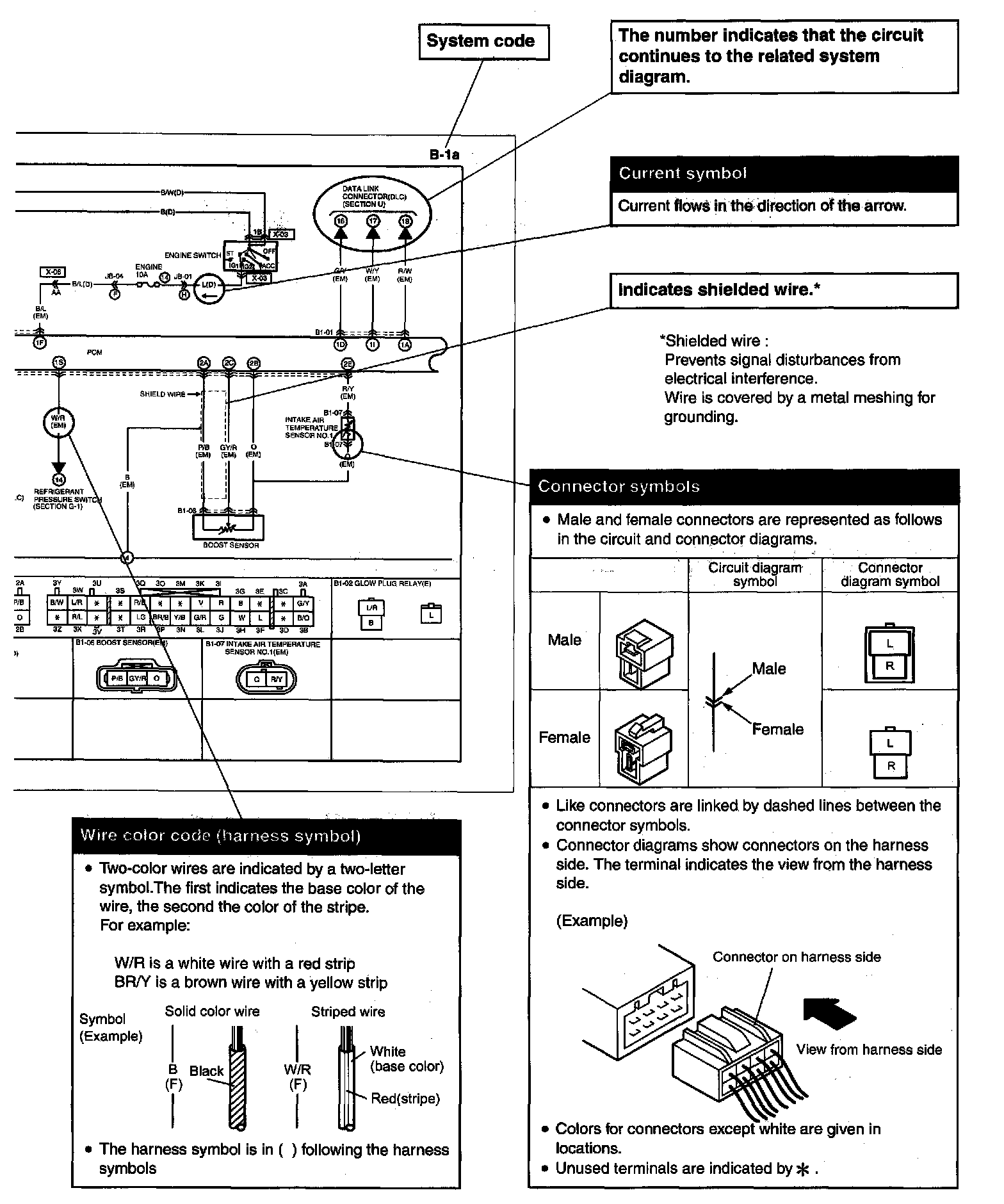

Part 2:




These diagrams show the circuits for each system, from the power supply to the. ground. The power supply side is on the upper part, the ground side on the lower part. The diagrams describe circuits with the ignition switch off.

Above is an explanation of the various points in the diagram.
