B-1a - Engine Control System/EC-AT Control / Ignition System

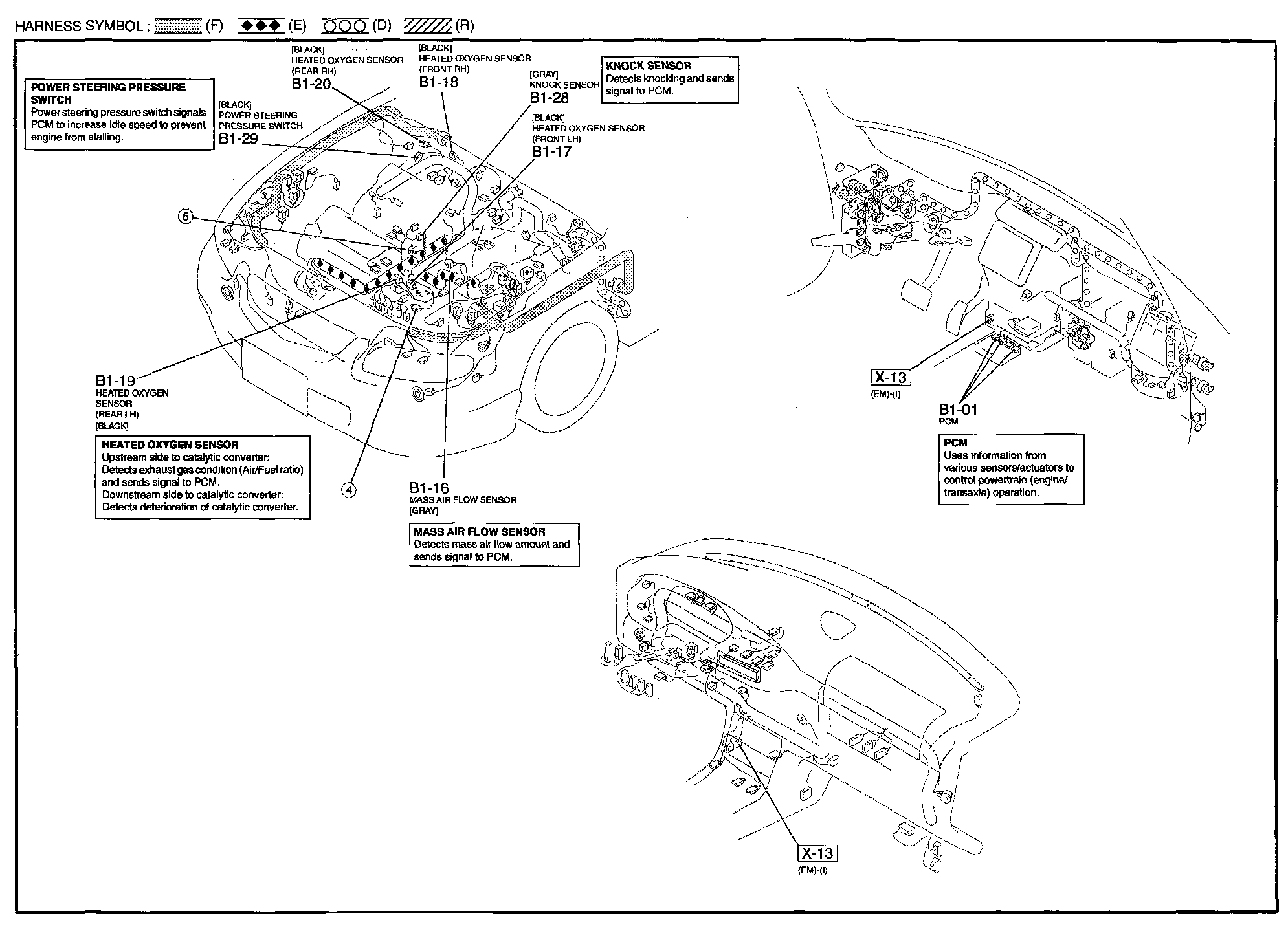

B-1a - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Harness/Connector Symbols:

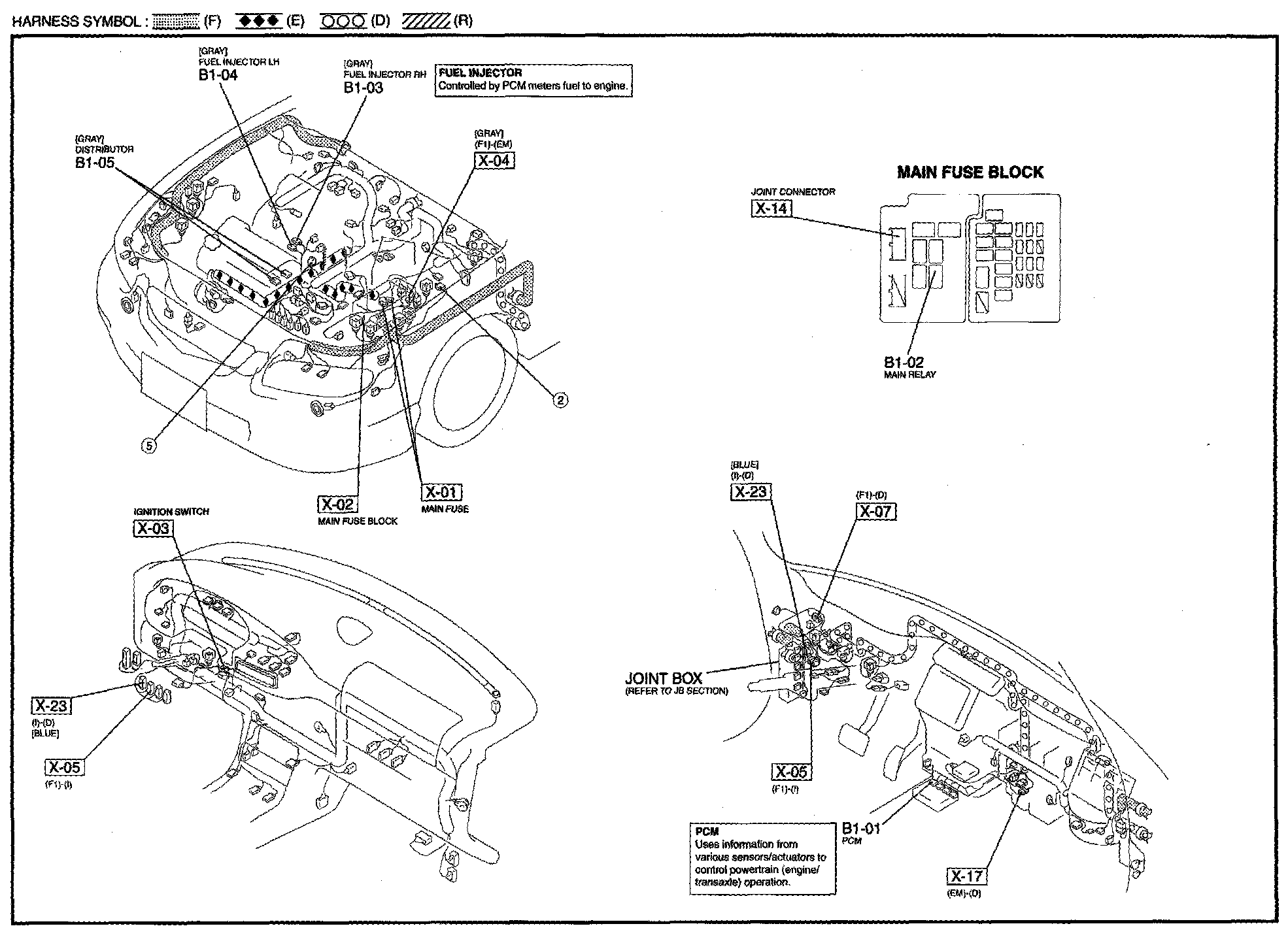

B-1b - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Harness/Connector Symbols:

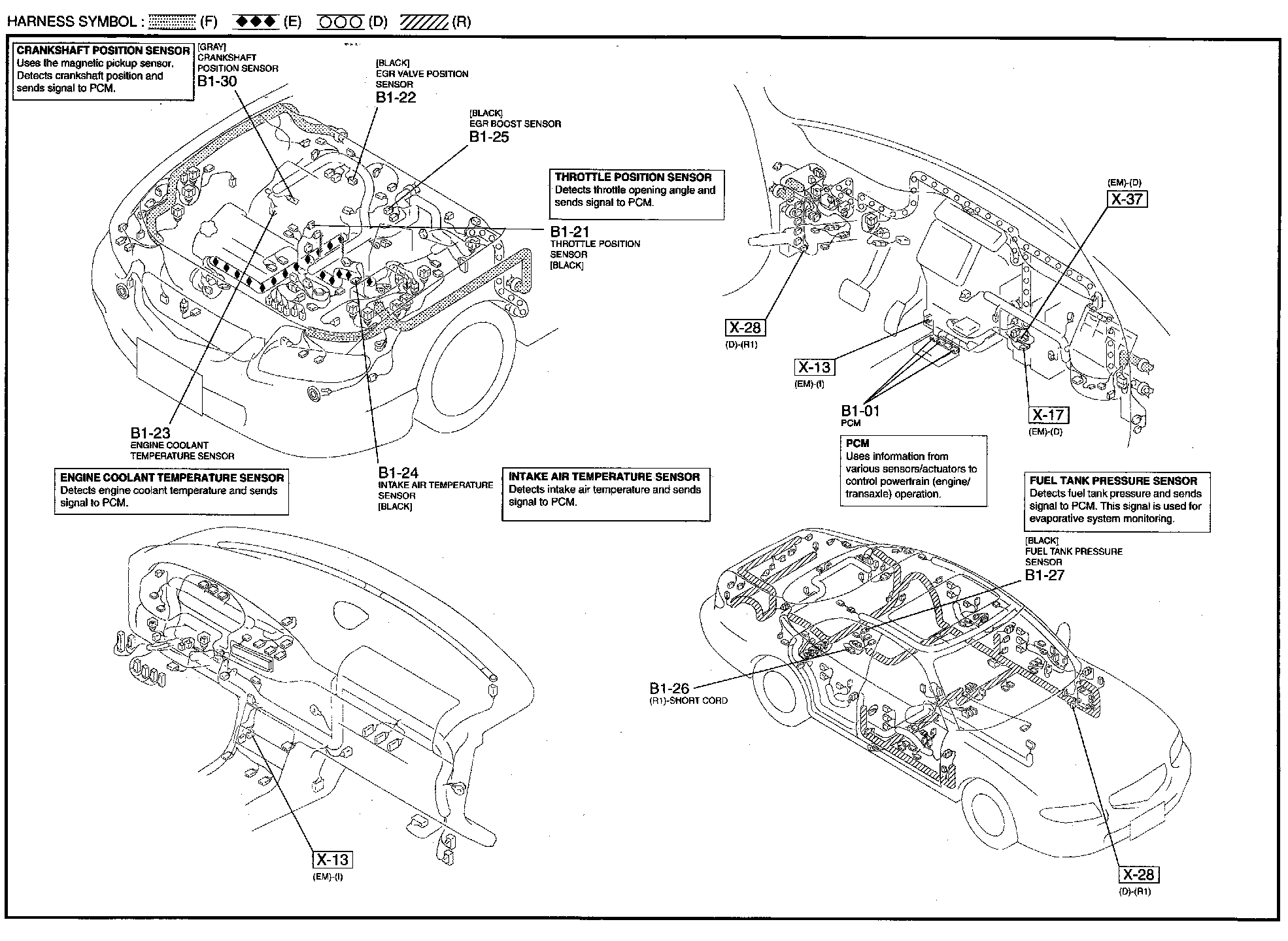

B-1c - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Harness/Connector Symbols:



B-1d - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Harness/Connector Symbols:



B-1e - Engine Control System (KL) / EC-AT Control System (KL) / Ignition System (KL) Harness/Connector Symbols:
