Cruise Control Servo: Service and Repair

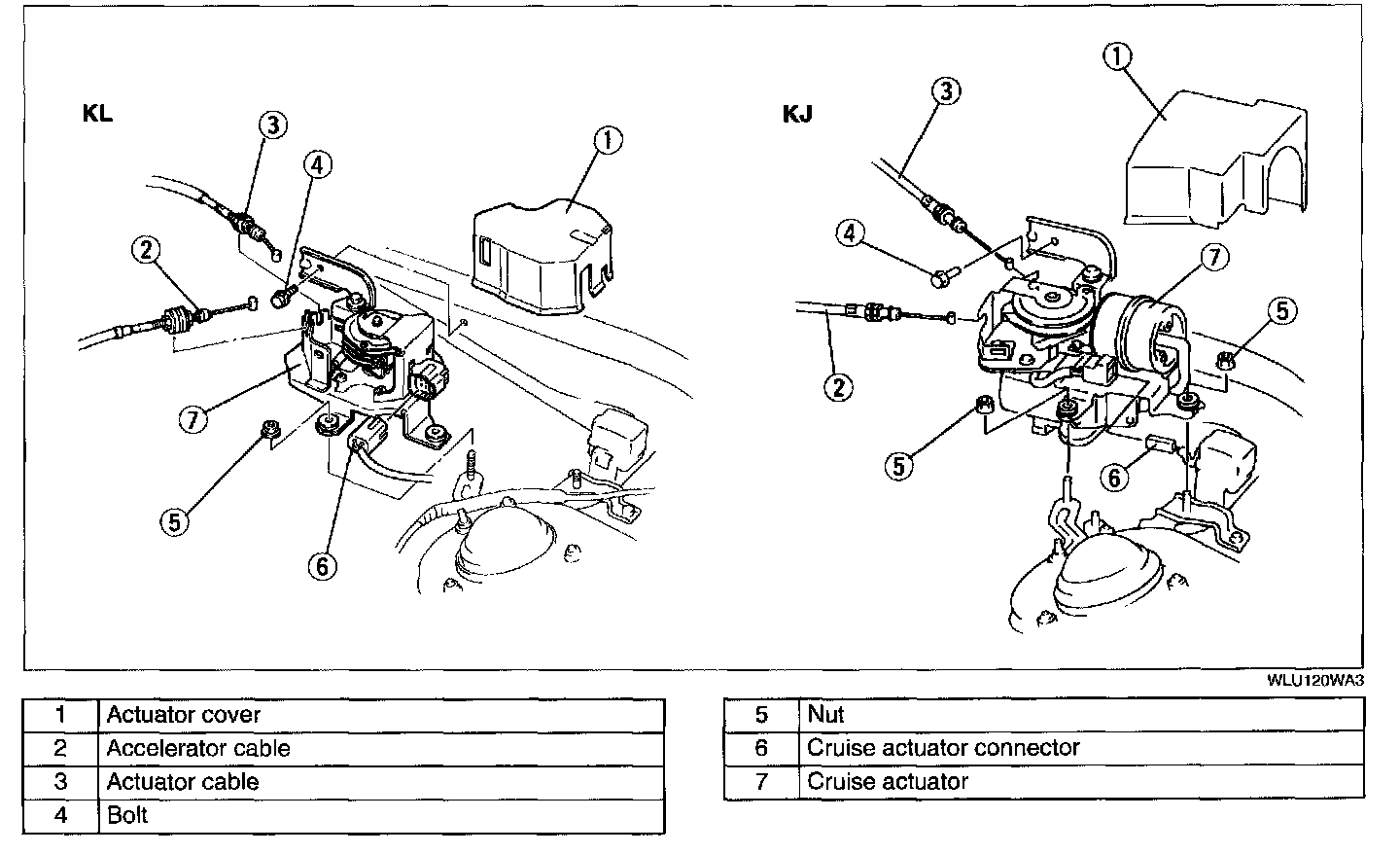

CRUISE ACTUATOR REMOVAL/INSTALLATION

KL (2.5L Engine):




1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the actuator cable.
