Component Tests and General Diagnostics

KEYLESS CONTROL MODULE INSPECTION

1. Remove the rear seat back.
2. Measure the voltage at the keyless control module terminals using a voltmeter.

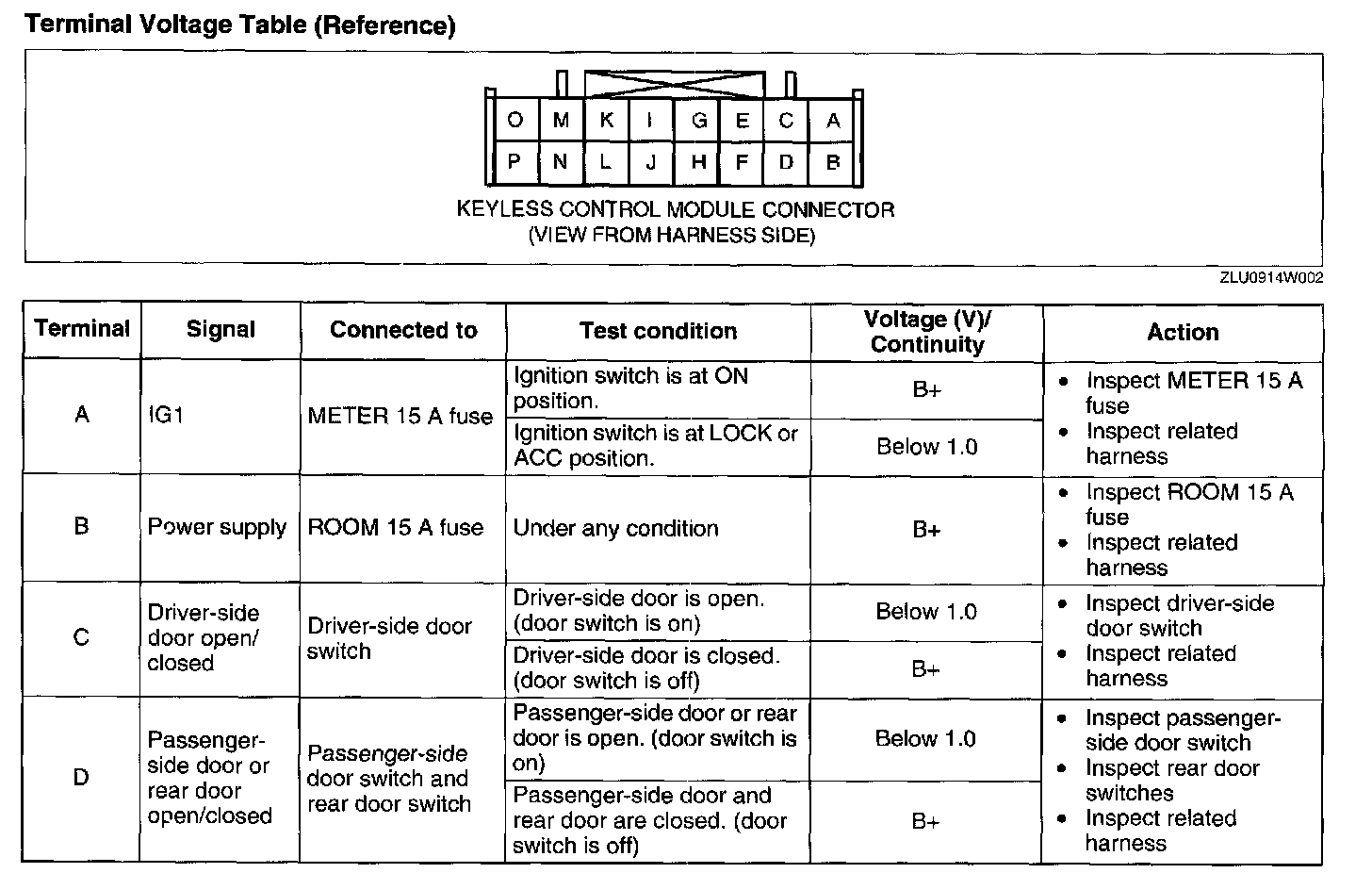

Terminal Voltage Table/Pinouts Part 1:

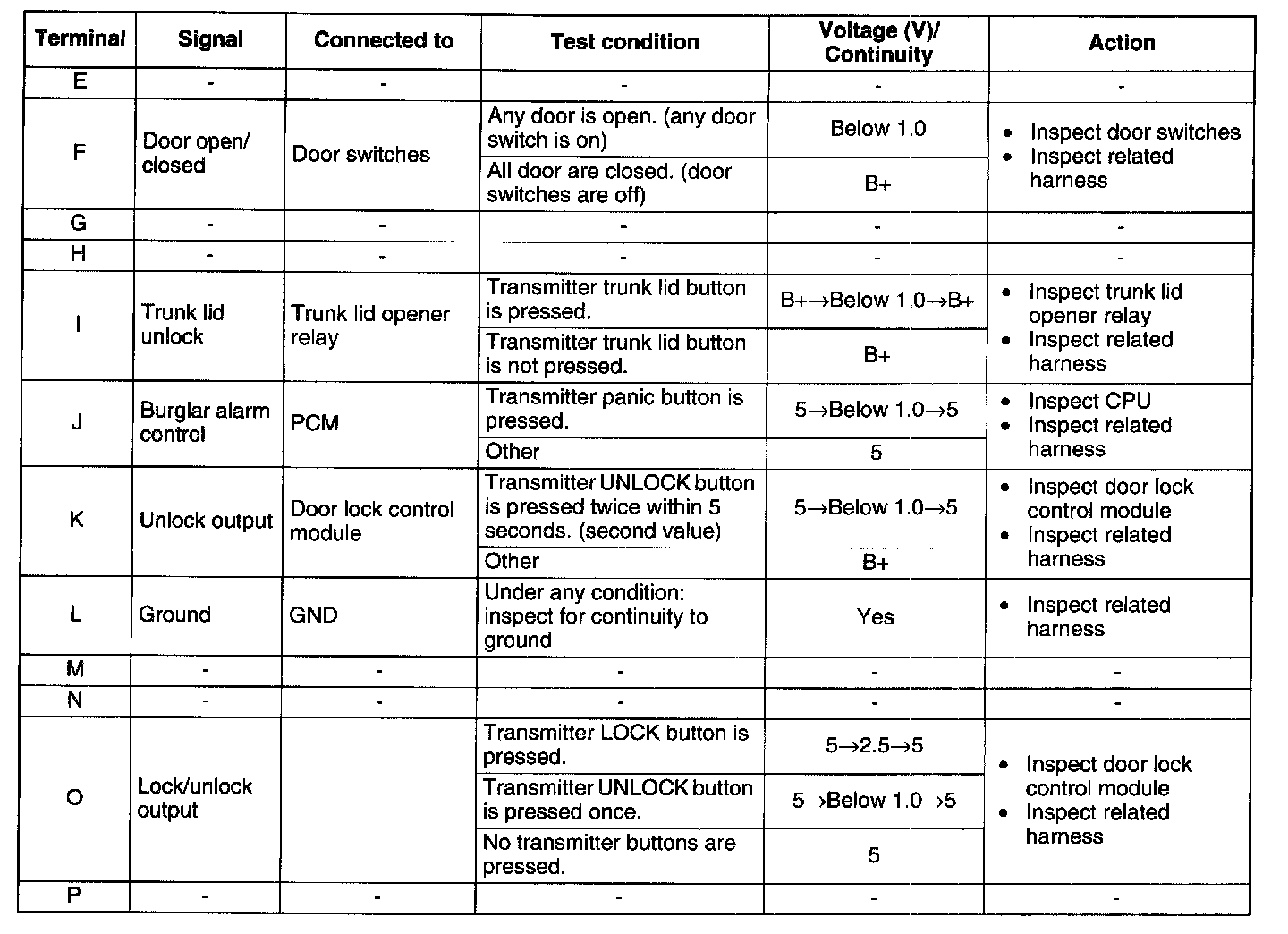

Pinouts Part 2:

3. Disconnect the keyless control module connector and check for continuity at terminal L.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, perform the symptom troubleshooting.
