Quick Diagnostic Symptom Chart

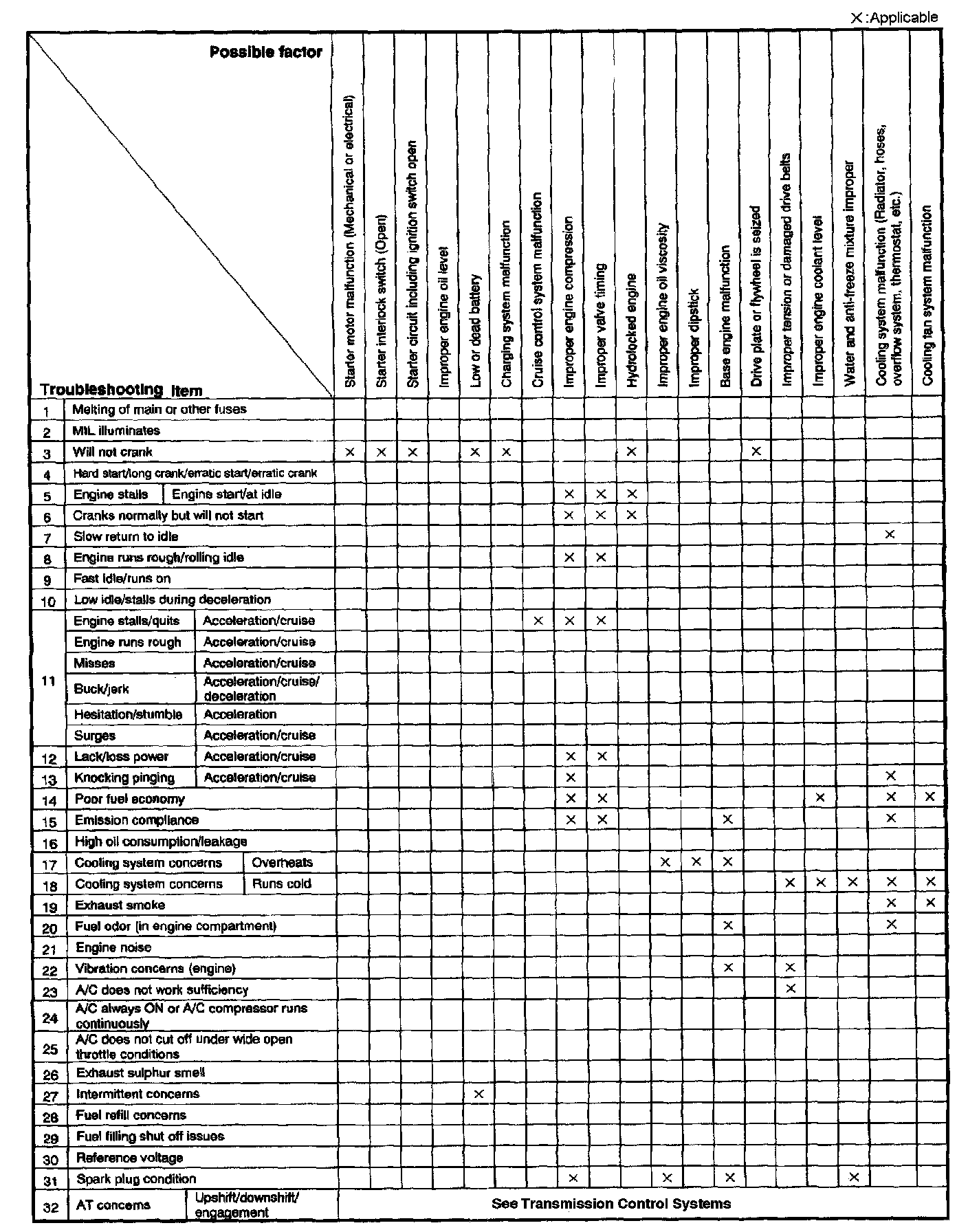

Symptom Quick Diagnostic Chart Part 1:

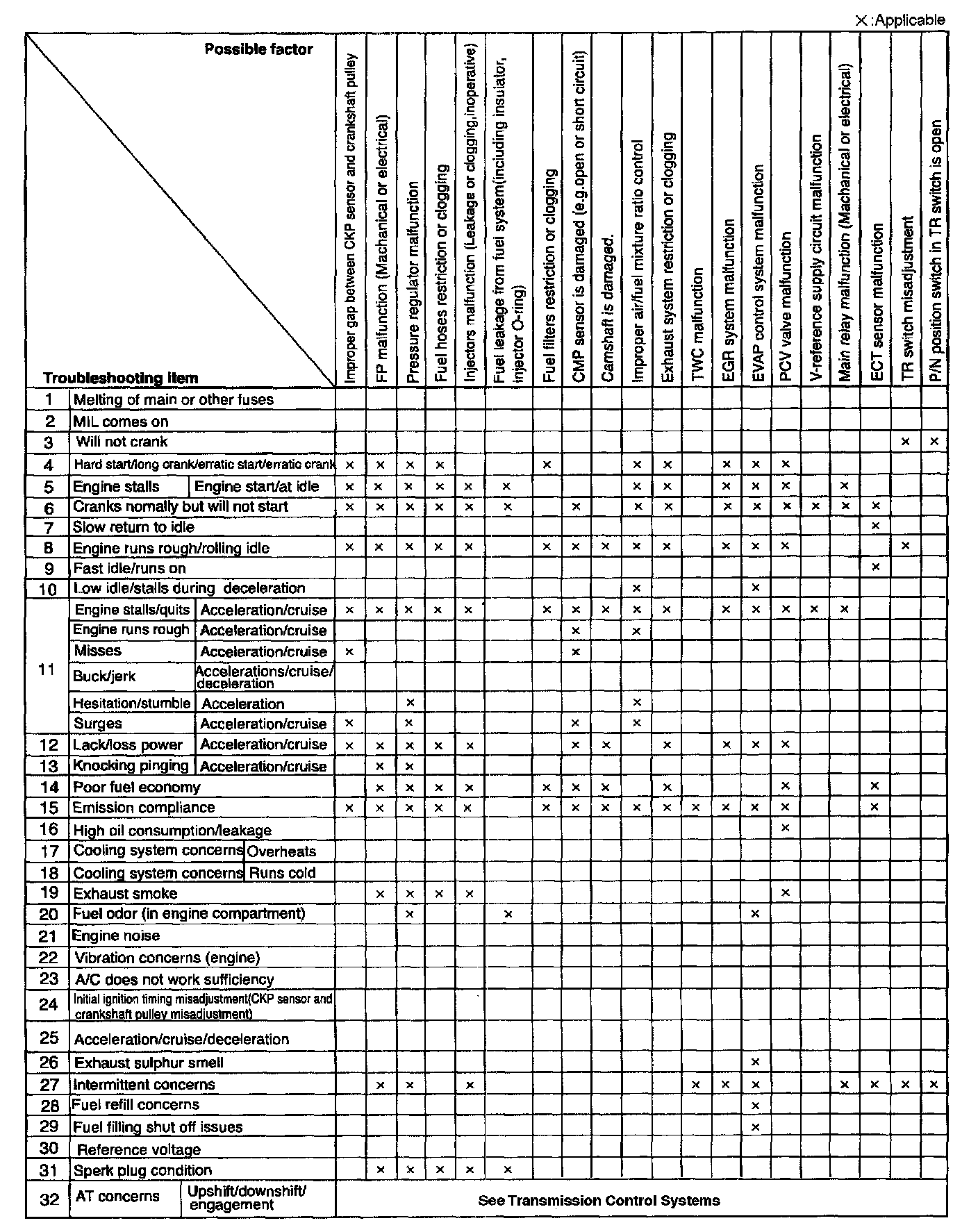

Symptom Quick Diagnostic Chart Part 2:

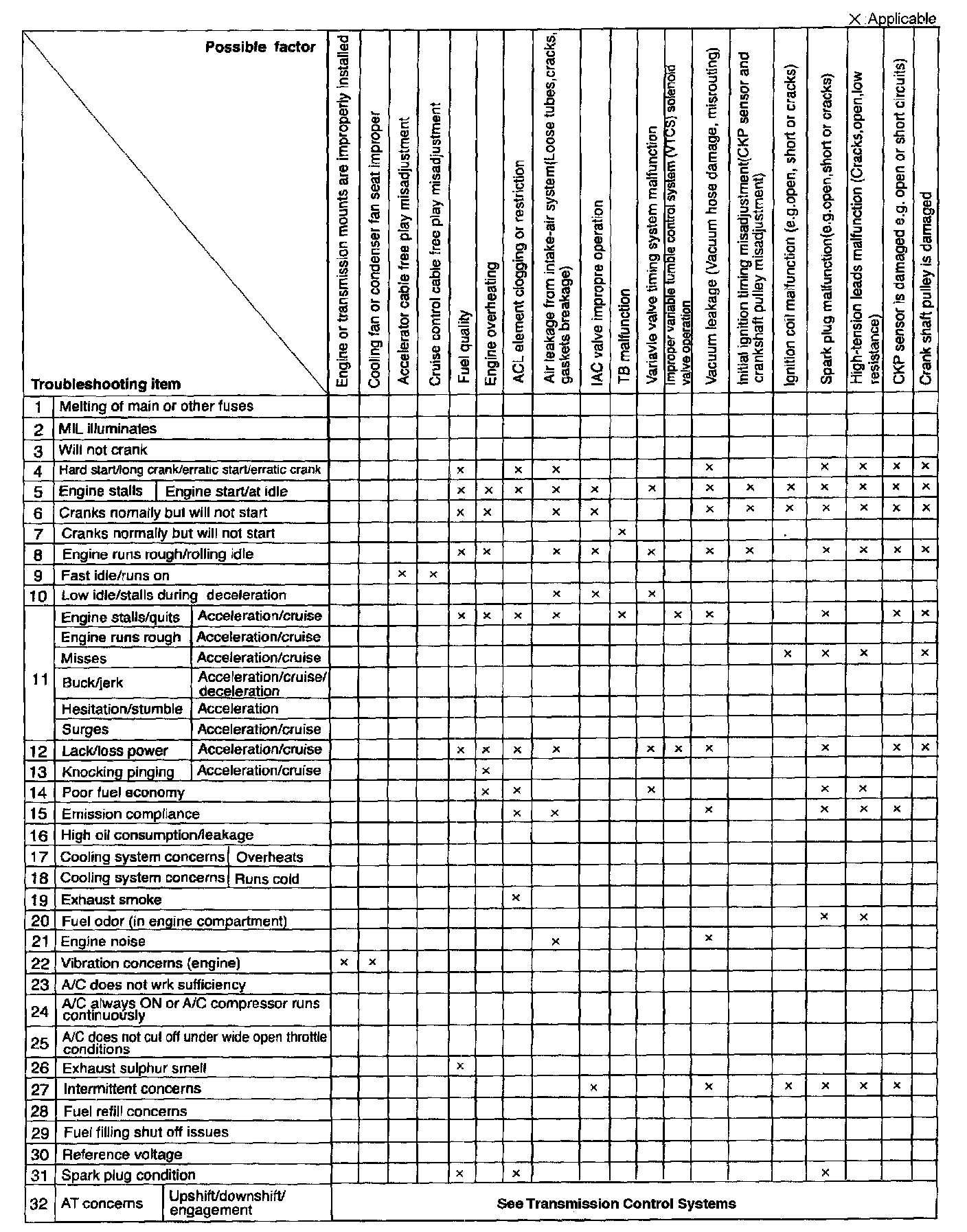

Symptom Quick Diagnostic Chart Part 3:



Symptom Quick Diagnostic Chart Part 4:
