Steering Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

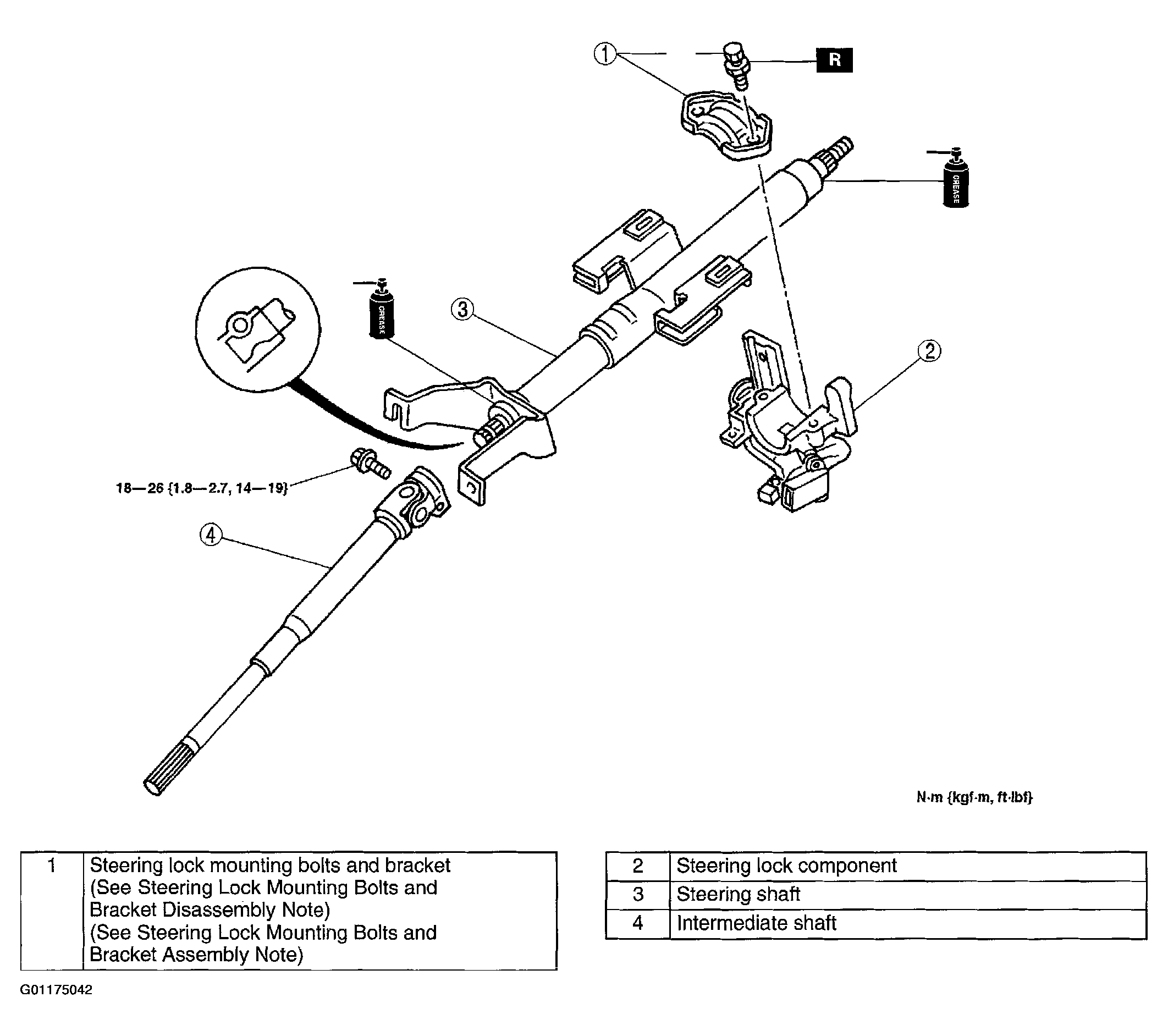

Fig 1: Disassembling & Assembling Steering Shaft
G01175042Courtesy of MAZDA MOTORS CORP.
