Washer Tank Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Partially peel off the right side mud guard.

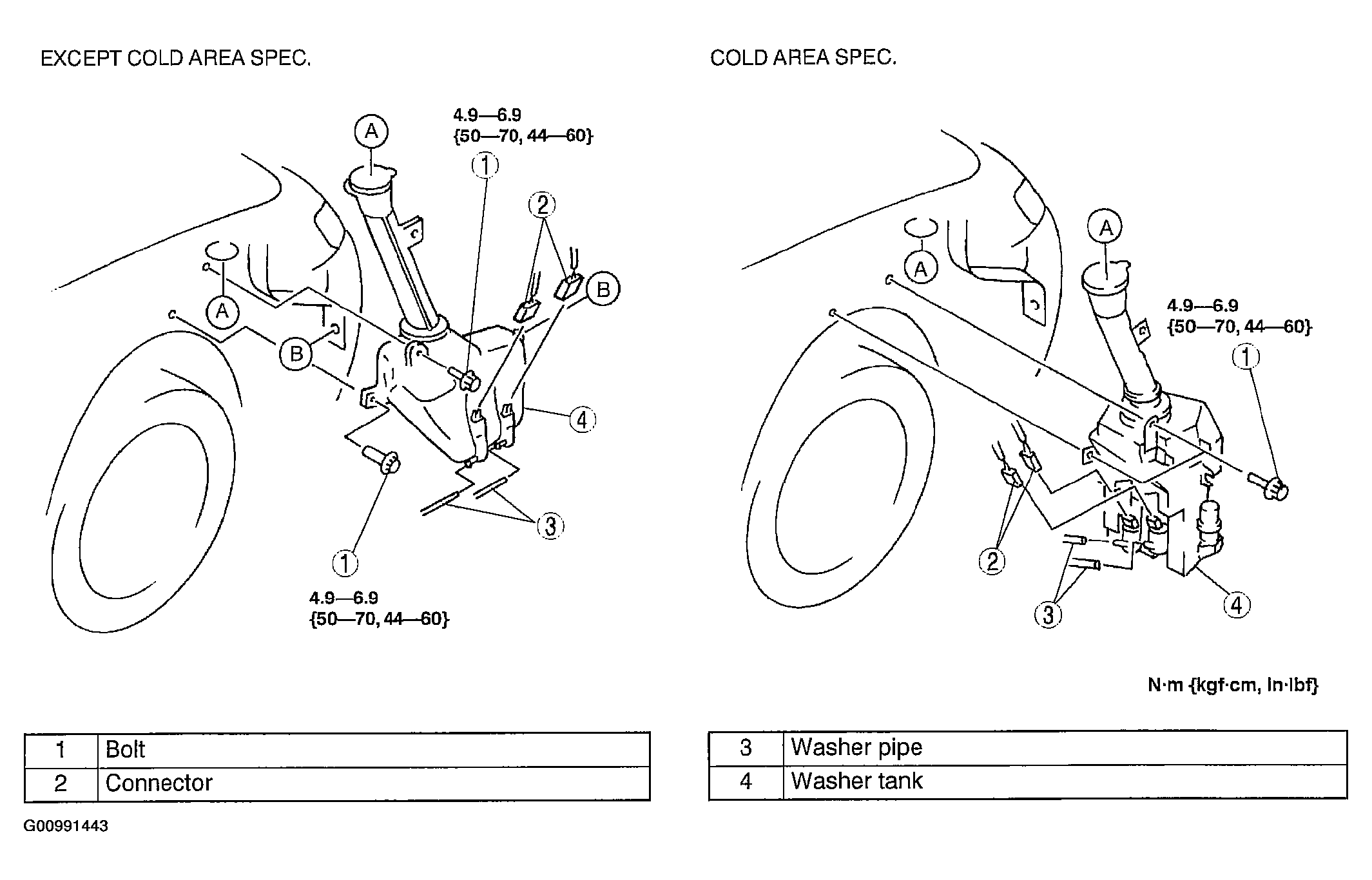

- Remove in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
