Oil Pan Gasket Installation Note

  1. Apply silicone sealant to the cylinder block as shown.

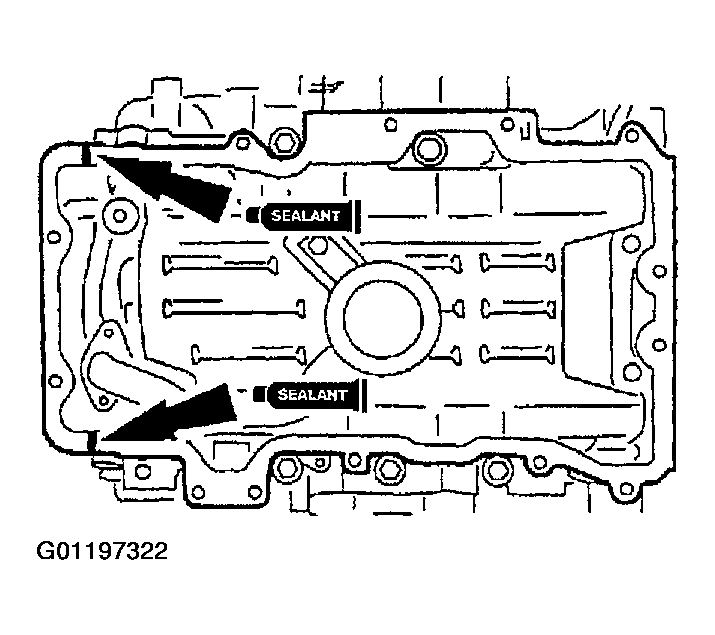

    Fig 1: Applying Silicone Sealant To Cylinder Block
    G01197322Courtesy of MAZDA MOTORS CORP.

    Dot Diameter

    1. 10 mm {0.39 in}
