Front Suspension System: Specifications

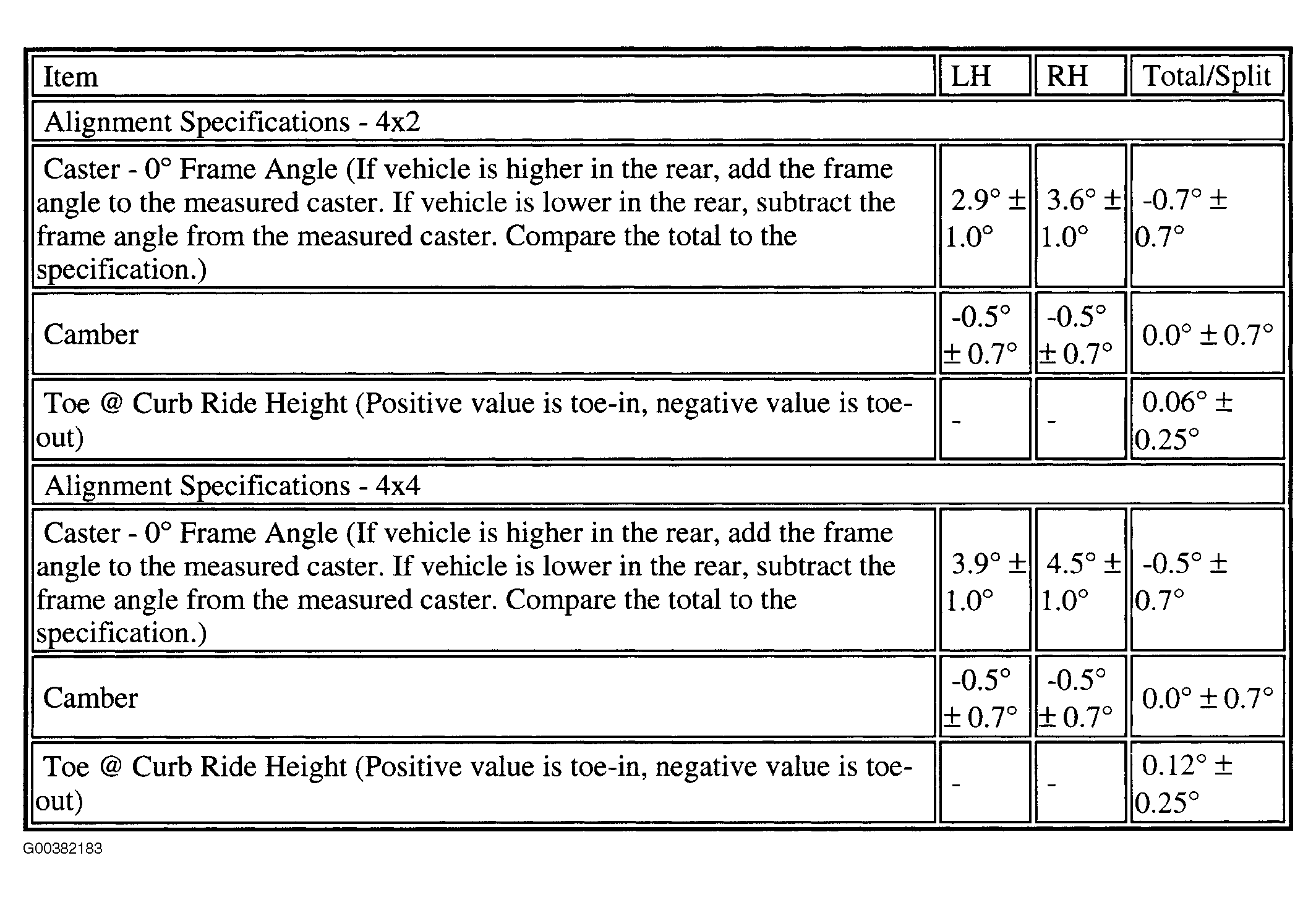

Fig 1: Specifications - Suspension
G00382183Courtesy of MAZDA MOTORS CORP.

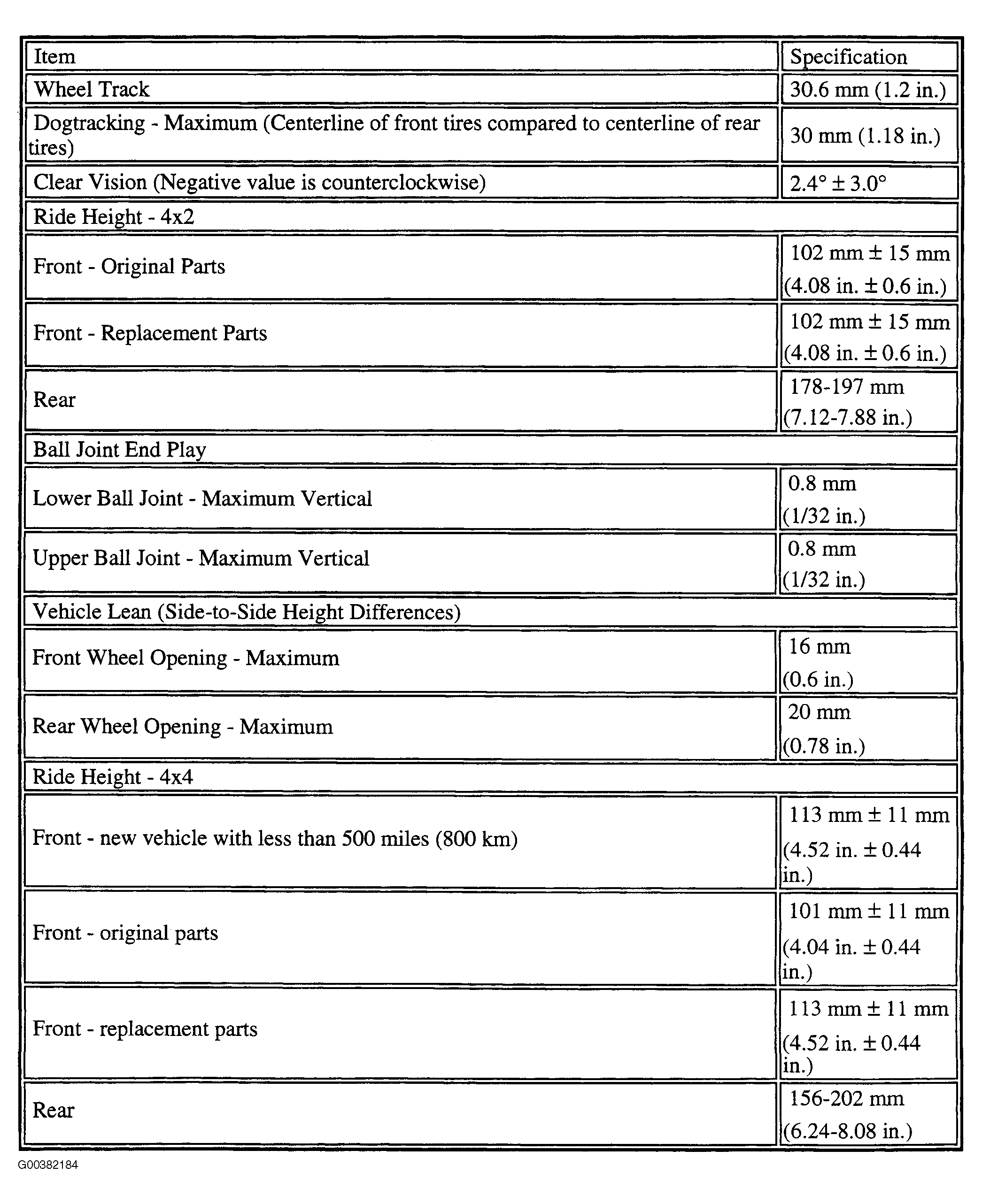

Fig 2: Specifications - General
G00382184Courtesy of MAZDA MOTORS CORP.
