Multi-Function Switch Removal/Installation
- Disconnect the negative battery cable.
- Remove the ignition lock cylinder. See LOCK CYLINDER REMOVAL/INSTALLATION
.
- If equipped, remove the tilt wheel handle.
- Remove the upper and lower steering column shrouds.

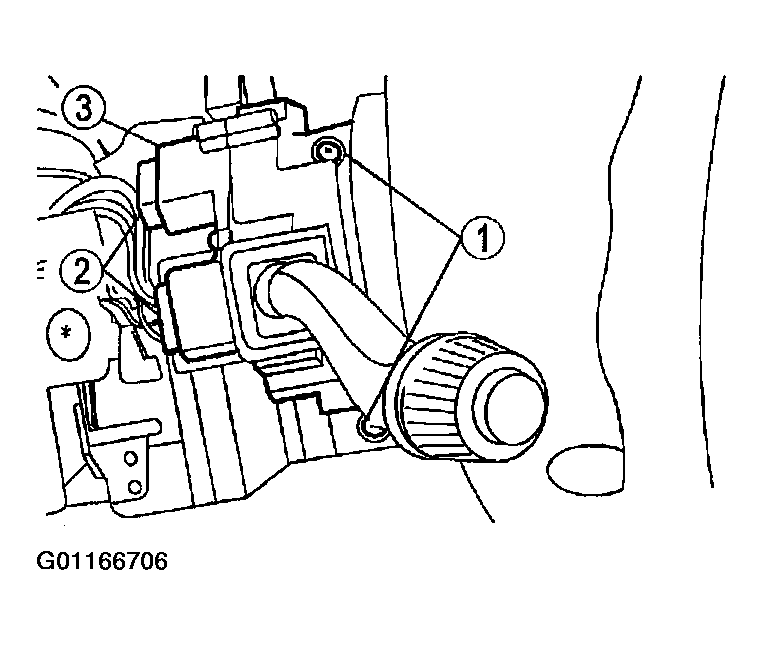

- Remove in order shown in Fig 1
.
- Screws
- Connectors
- Switch
Courtesy of MAZDA MOTORS CORP.
- Install in reverse order of removal.
- Tightening Torque
- 2-3 N.m {20-31 kgf.cm, 18-26 in.lbf}
