CII Pump Removal Note
- Remove the pump pulley. See POWER STEERING OIL PUMP PULLEY REMOVAL/INSTALLATION .

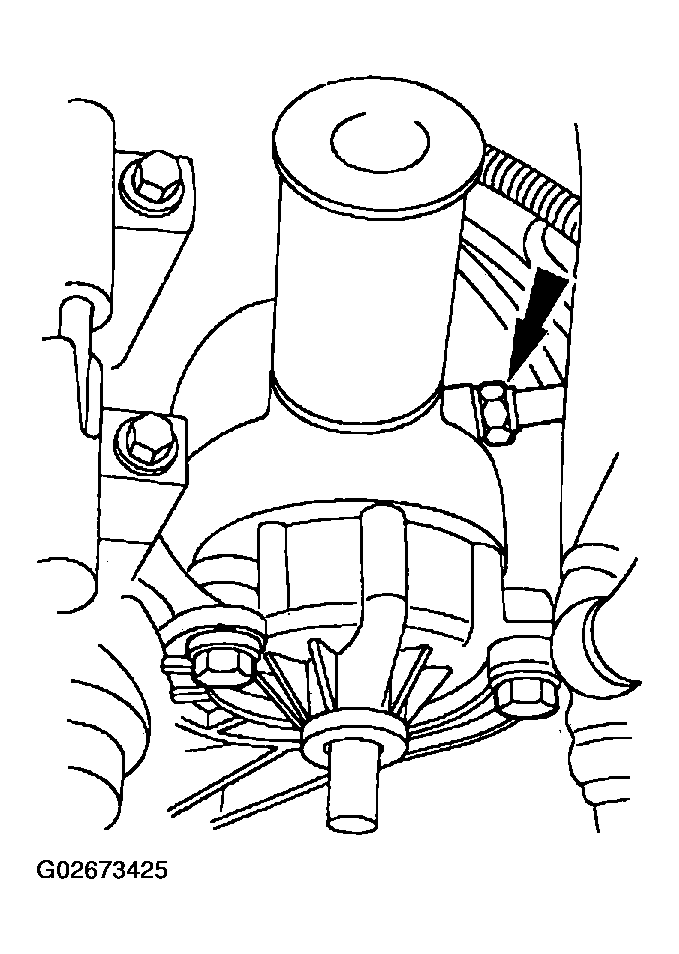

- Disconnect the power steering pressure hose.
Courtesy of MAZDA MOTORS CORP.

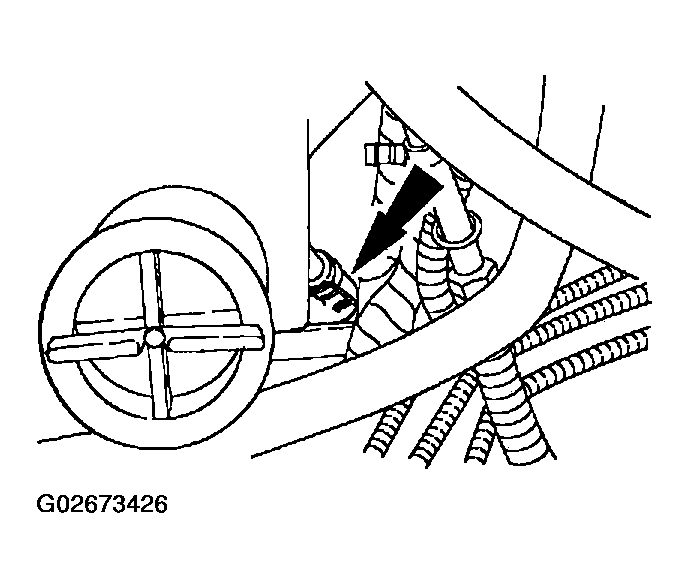

- Disconnect the power steering return hose.
Courtesy of MAZDA MOTORS CORP.
- Disconnect the power steering return line hose.

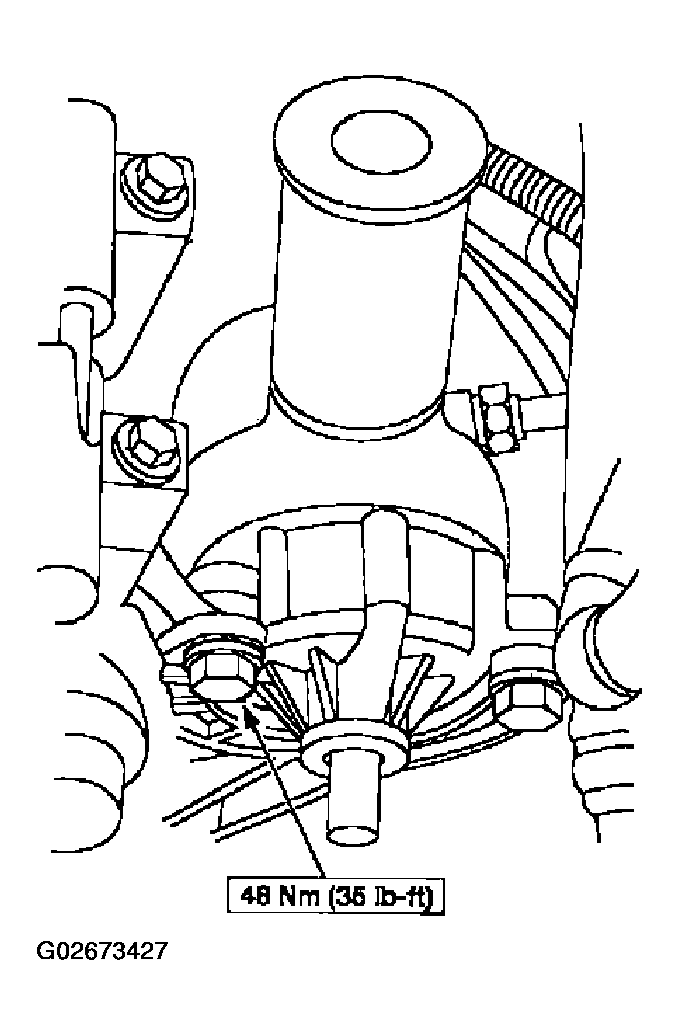

- Remove the bolts and the power steering pump.
Courtesy of MAZDA MOTORS CORP.
