Ignition Switch Inspection

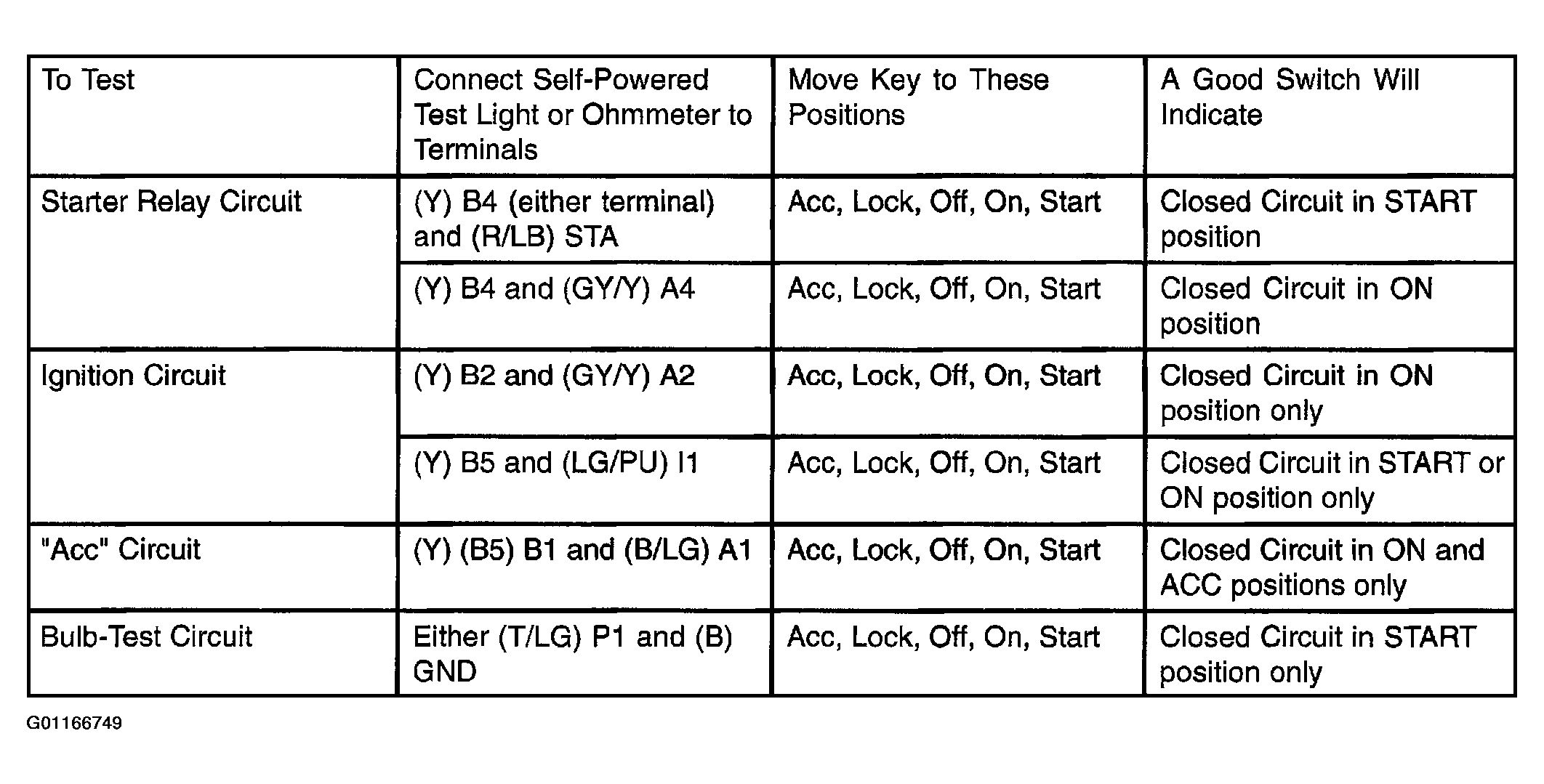

Fig 1: Inspection Ignition Switch

G01166749

Courtesy of MAZDA MOTORS CORP.
