Oil Pan Installation Note

CAUTION:

If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause thread damage.

Fig 1: Identifying Outcome If Old Sealant Is Left On Bolt Threads

G01136154

Courtesy of MAZDA MOTORS CORP.

Apply silicone sealant to the oil pan along the inside of the bolt holes and overlap the ends.
Thickness

2.0-3.0 mm {0.079-0.118 in}

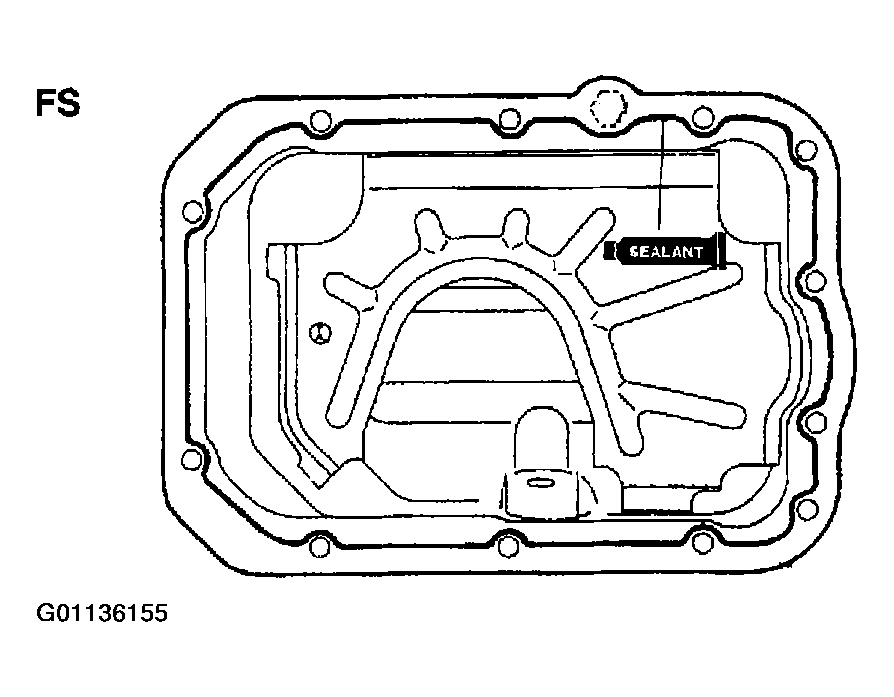

Fig 2: Identifying Oil Pan Sealant Application (2.0L)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Oil Pan Sealant Application (2.5L)
Courtesy of MAZDA MOTORS CORP.
