Power Outside Mirror Glass Removal

  1. Warm the frame and the mirror glass to approximately 70 °C {158 °F}  for 3 minutes  using a hot air blower.
  2. Put on gloves and protective eye wear.
  3. Insert a scraper between the mirror glass and the frame, and pry the glass loose.

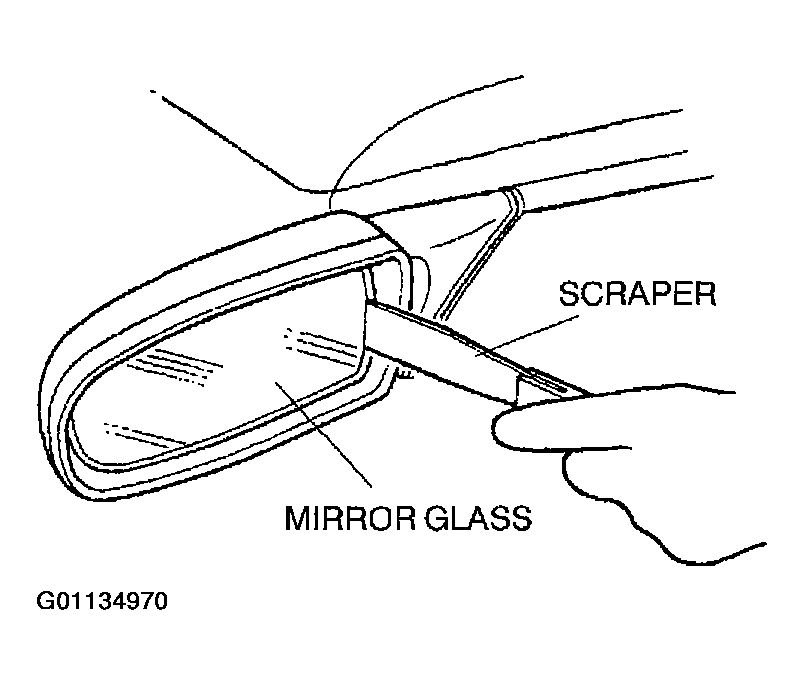

    Fig 1: Removing Glass Of Outside Power Mirror
    G01134970Courtesy of MAZDA MOTORS CORP.
