EC-At Control System (FS)/Engine Control System (FS)

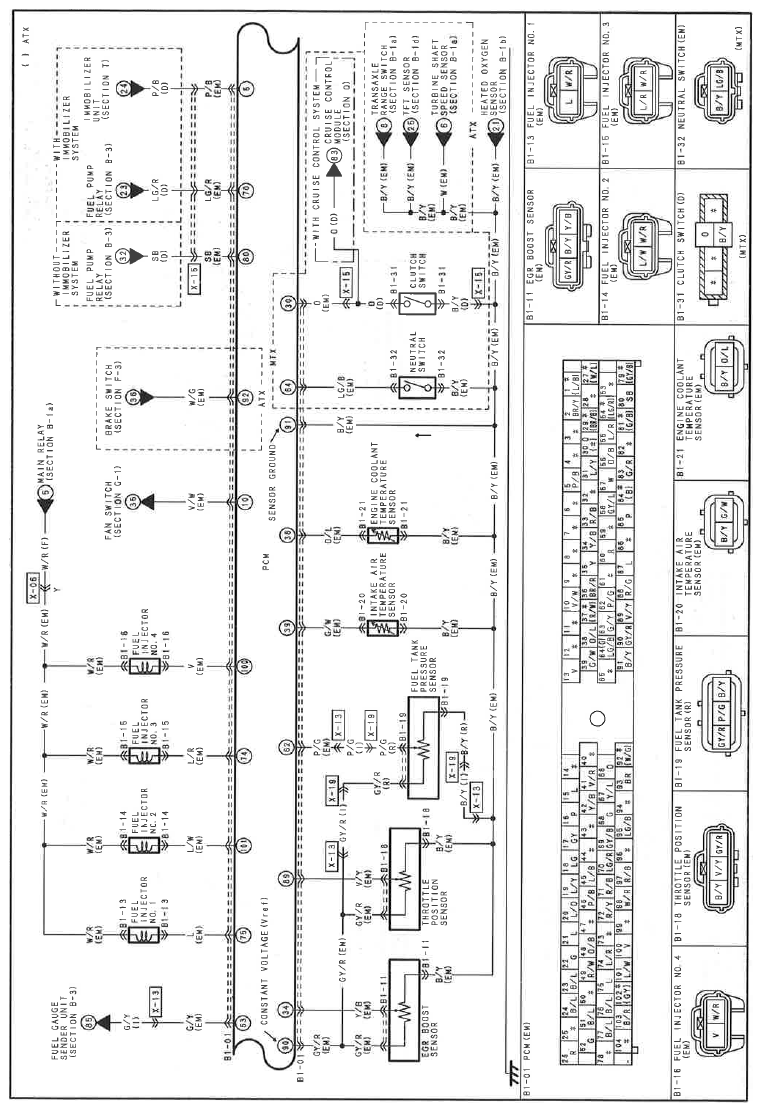

Fig 1: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

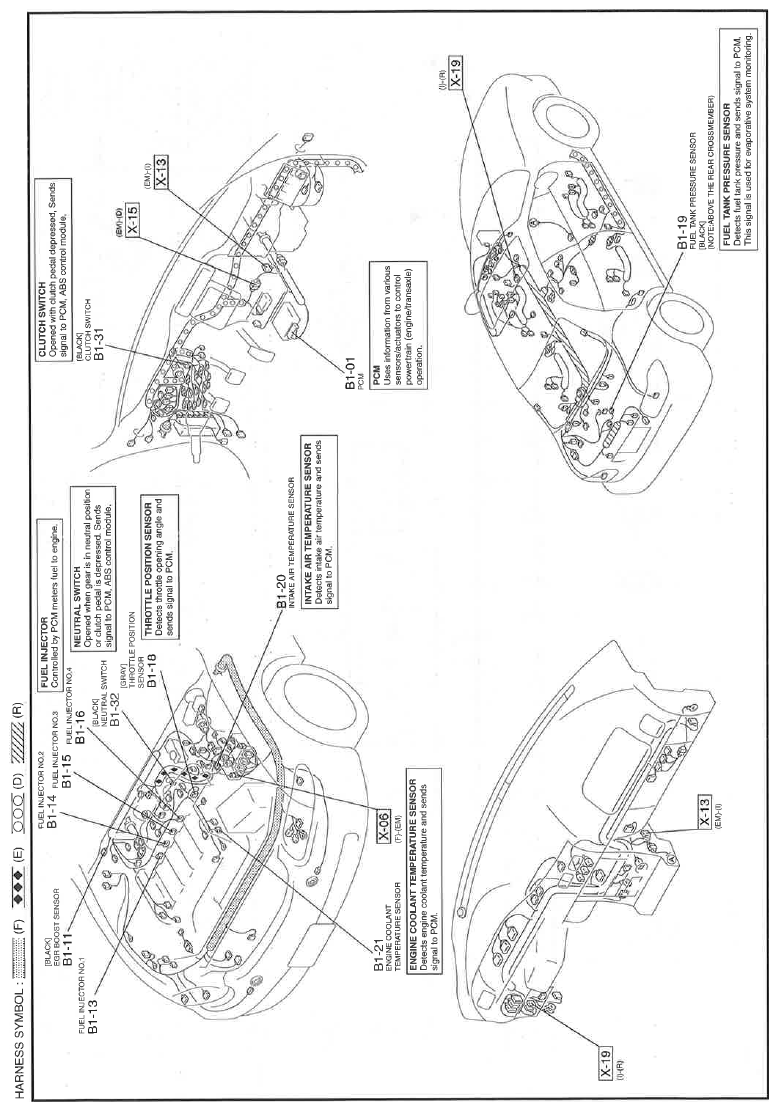

Fig 2: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

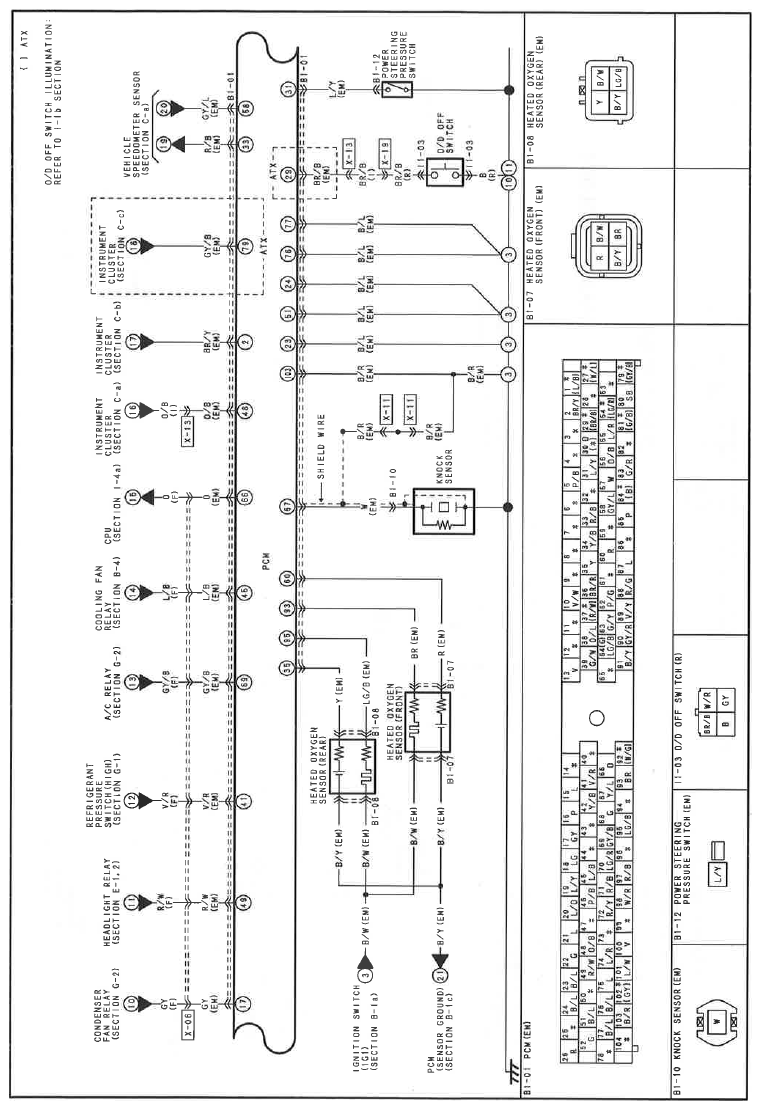

Fig 3: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

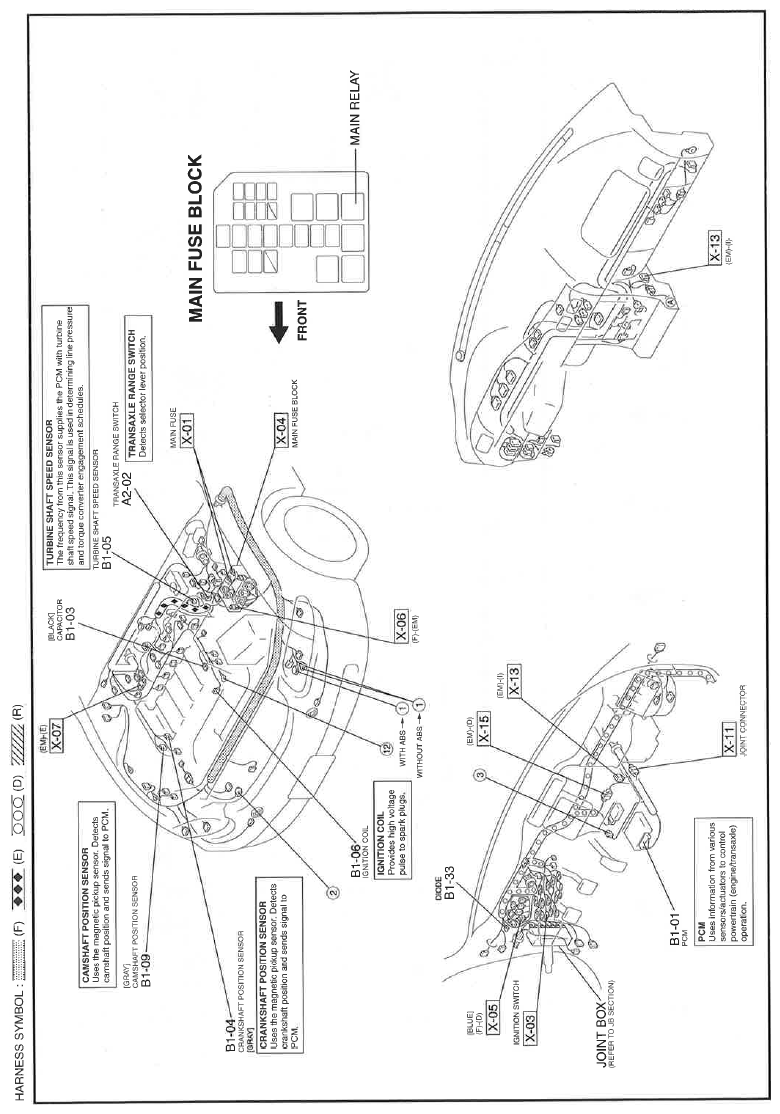

Fig 4: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

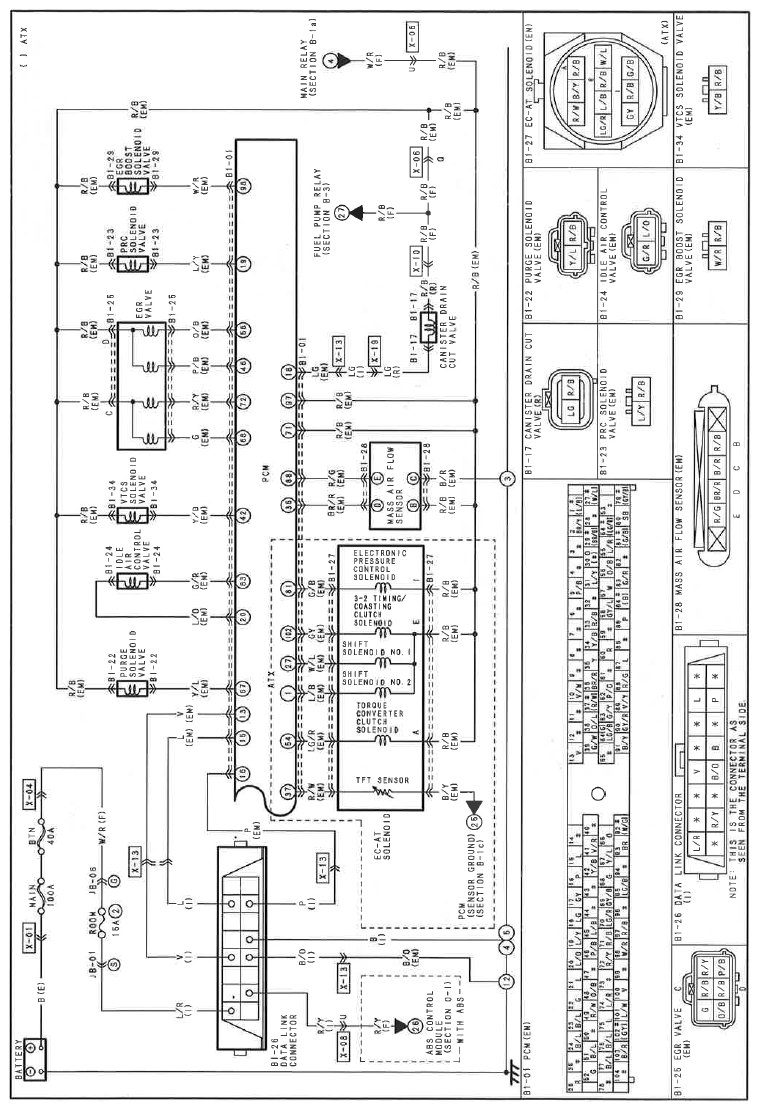

Fig 5: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1c; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

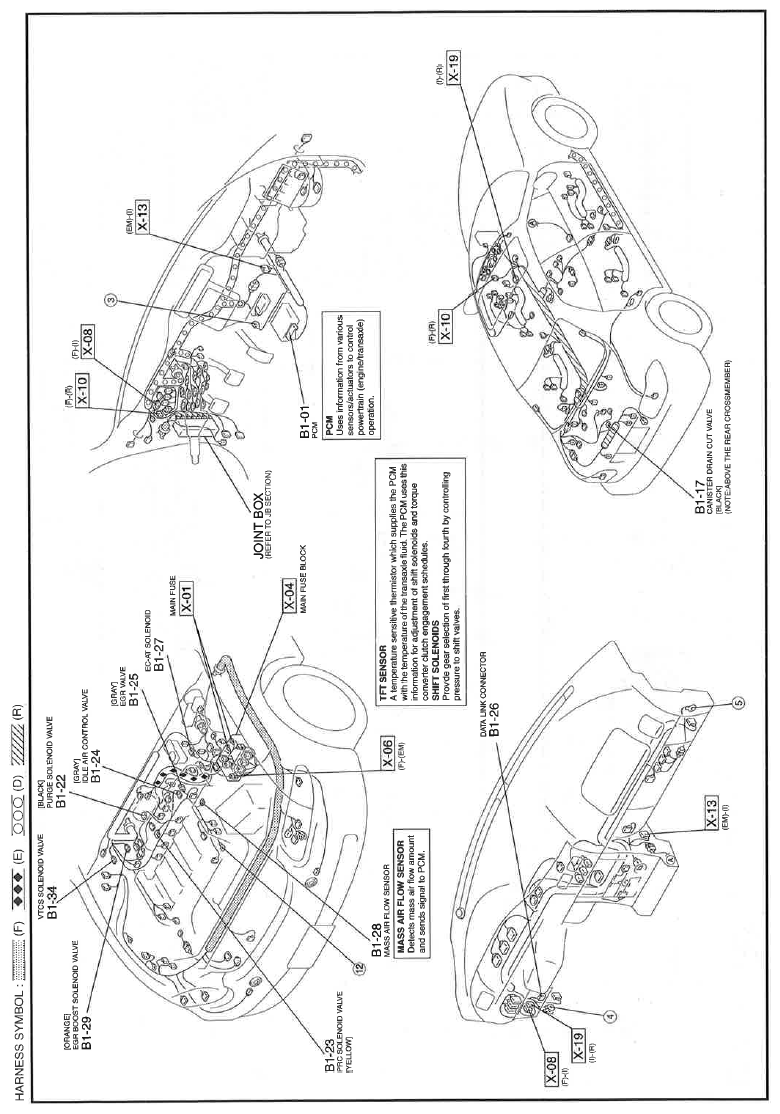

Fig 6: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1c; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

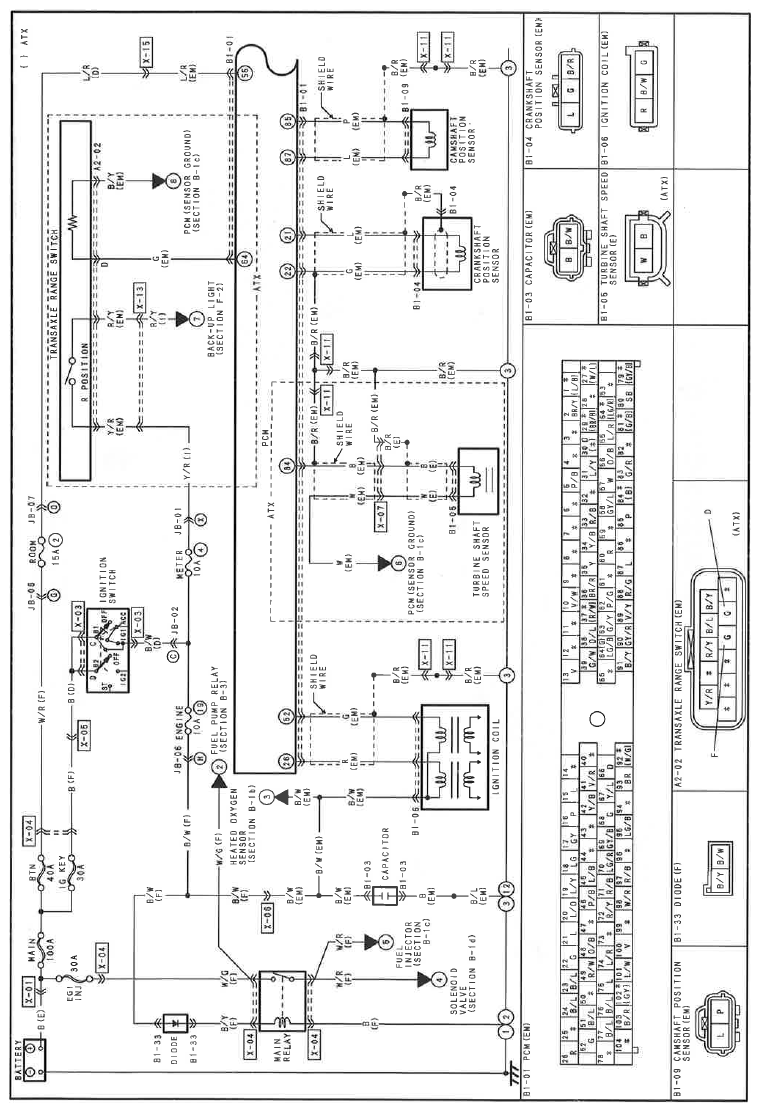

Fig 7: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1d; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

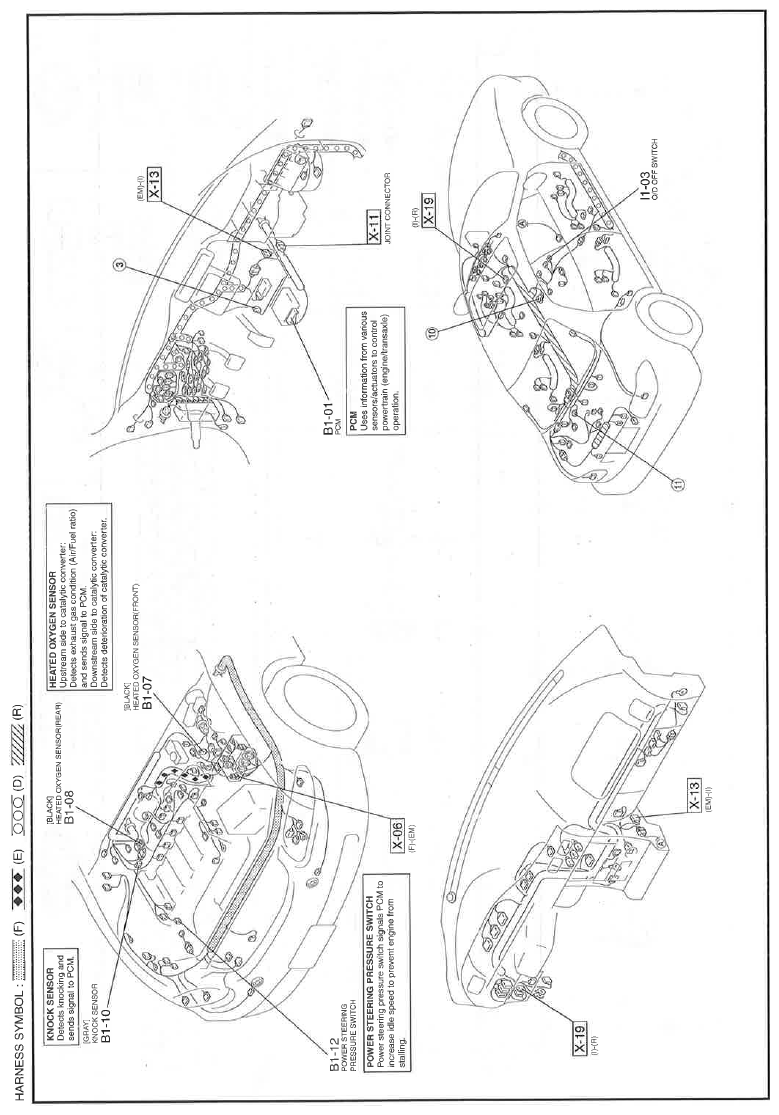

Fig 8: EC-AT Control System (FS) And Engine Control System (FS) Wiring Diagram (B-1d; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
