Torque Specifications

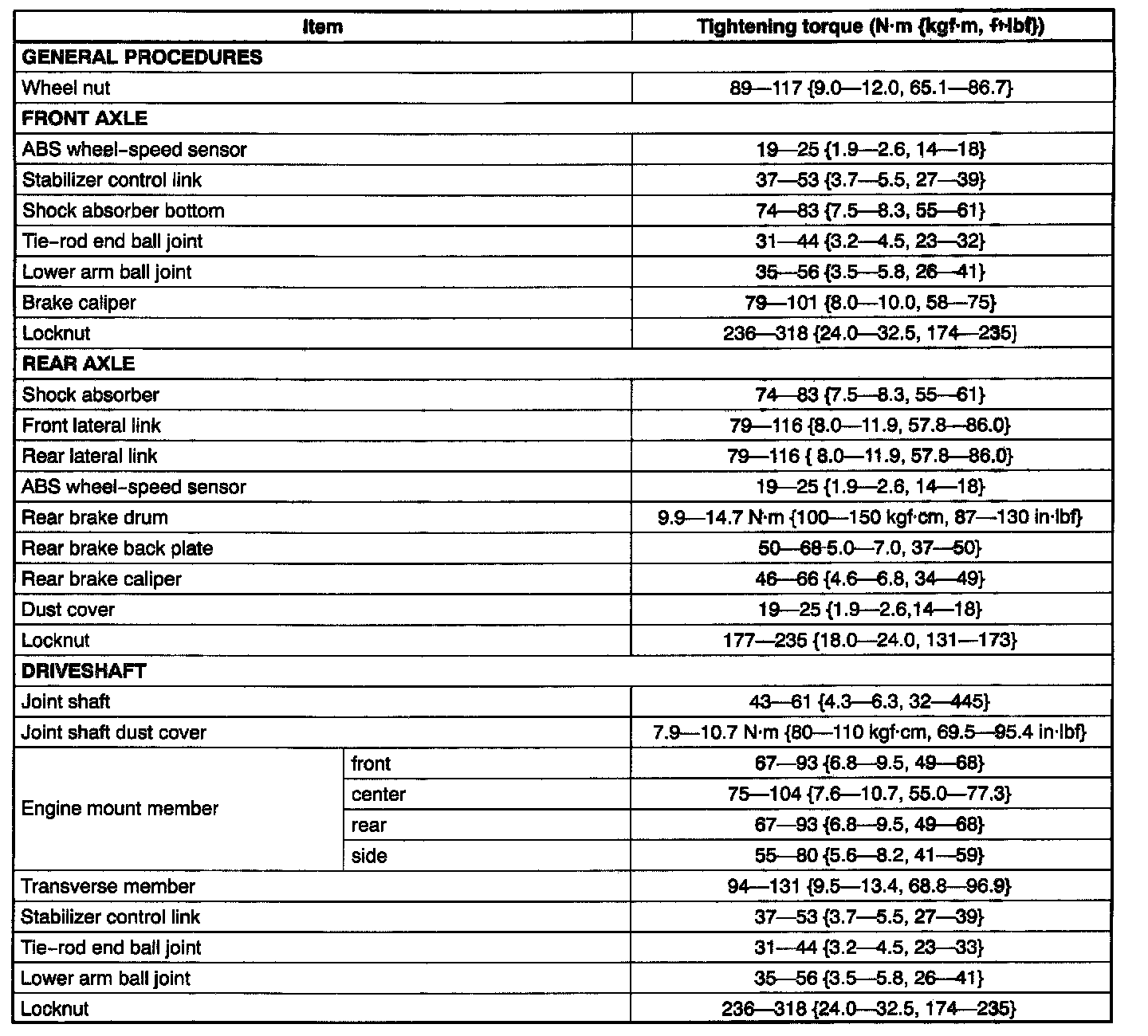

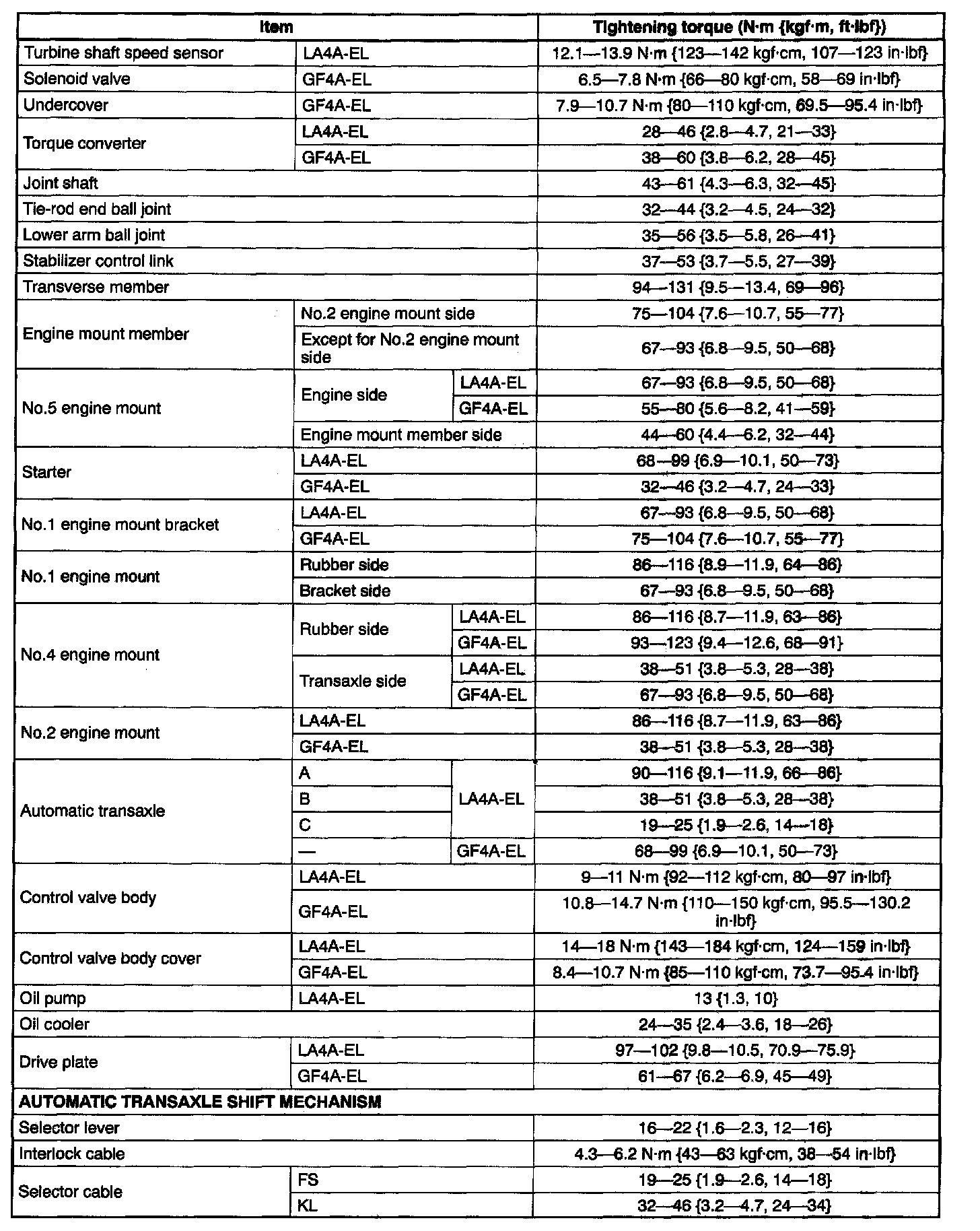

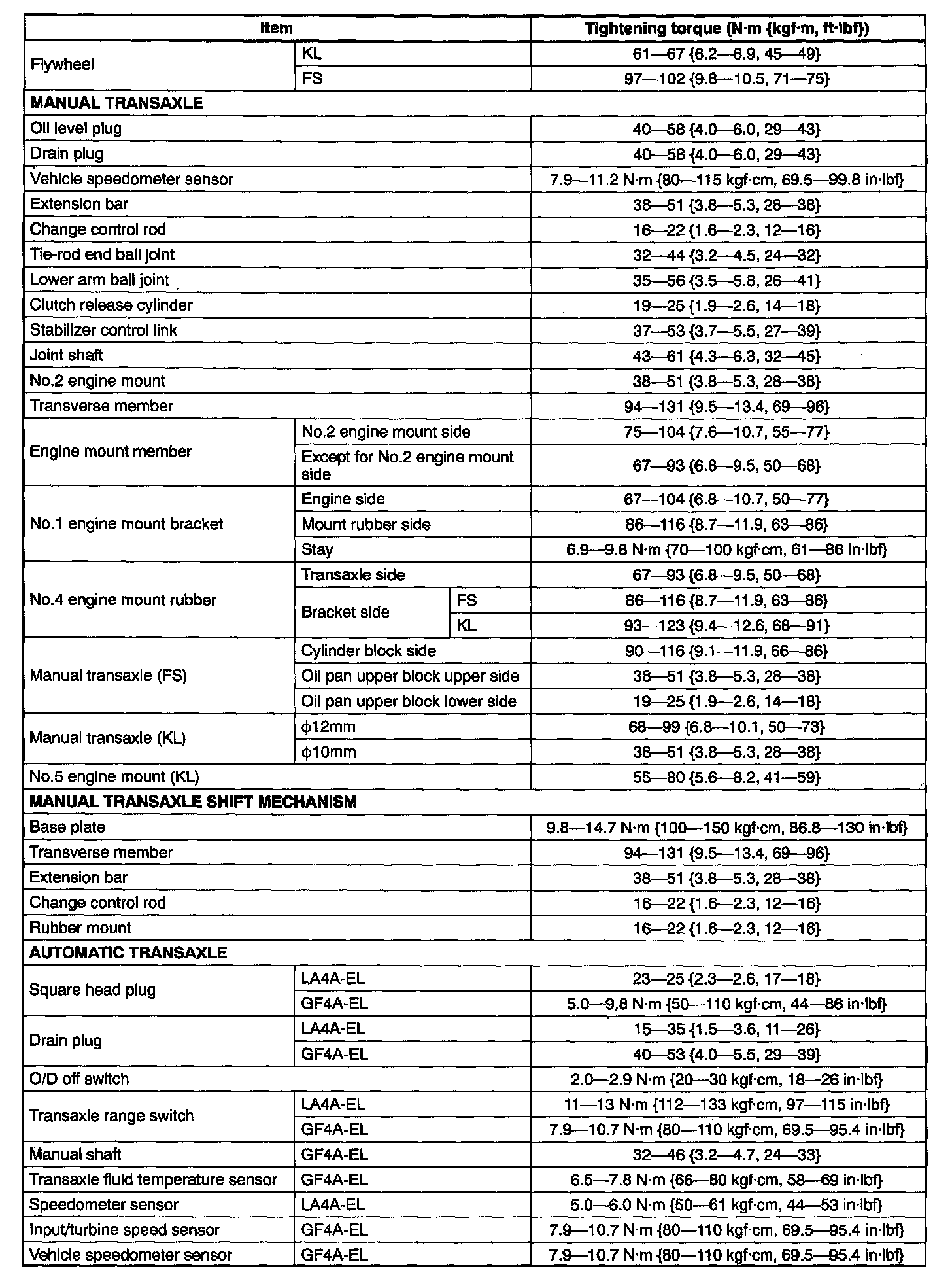

TIGHTENING TORQUE





Driveline/Axle





Clutch, Manual and Automatic Transaxle (Part 1 of 2)





Clutch, Manual and Automatic Transaxle (Part 2 of 3)





Clutch, Manual and Automatic Transaxle (Part 3 of 3)
