EC-AT Control System

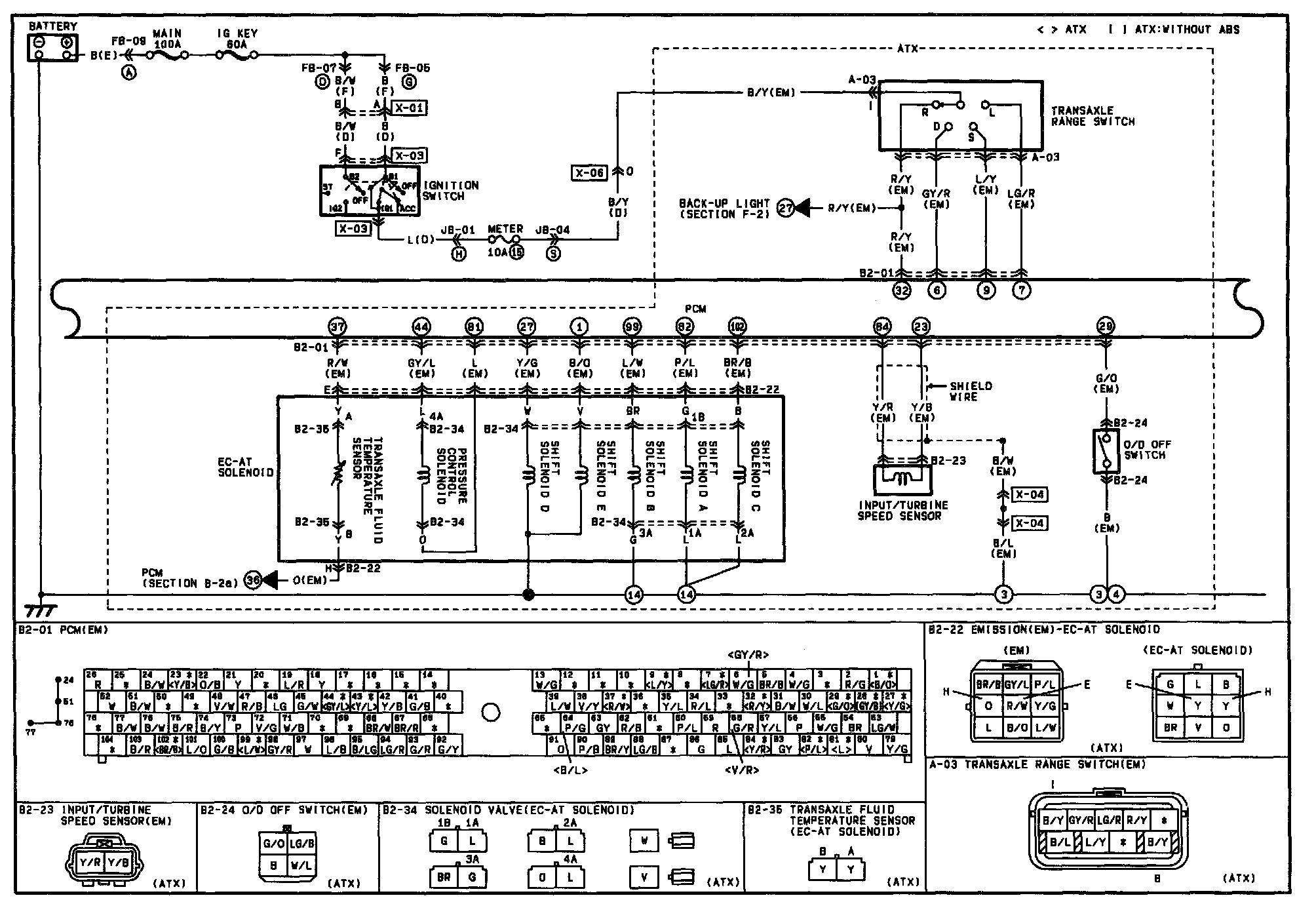

B-2a - EC-AT Control System (FS)/Engine Control System Circuit (FS):

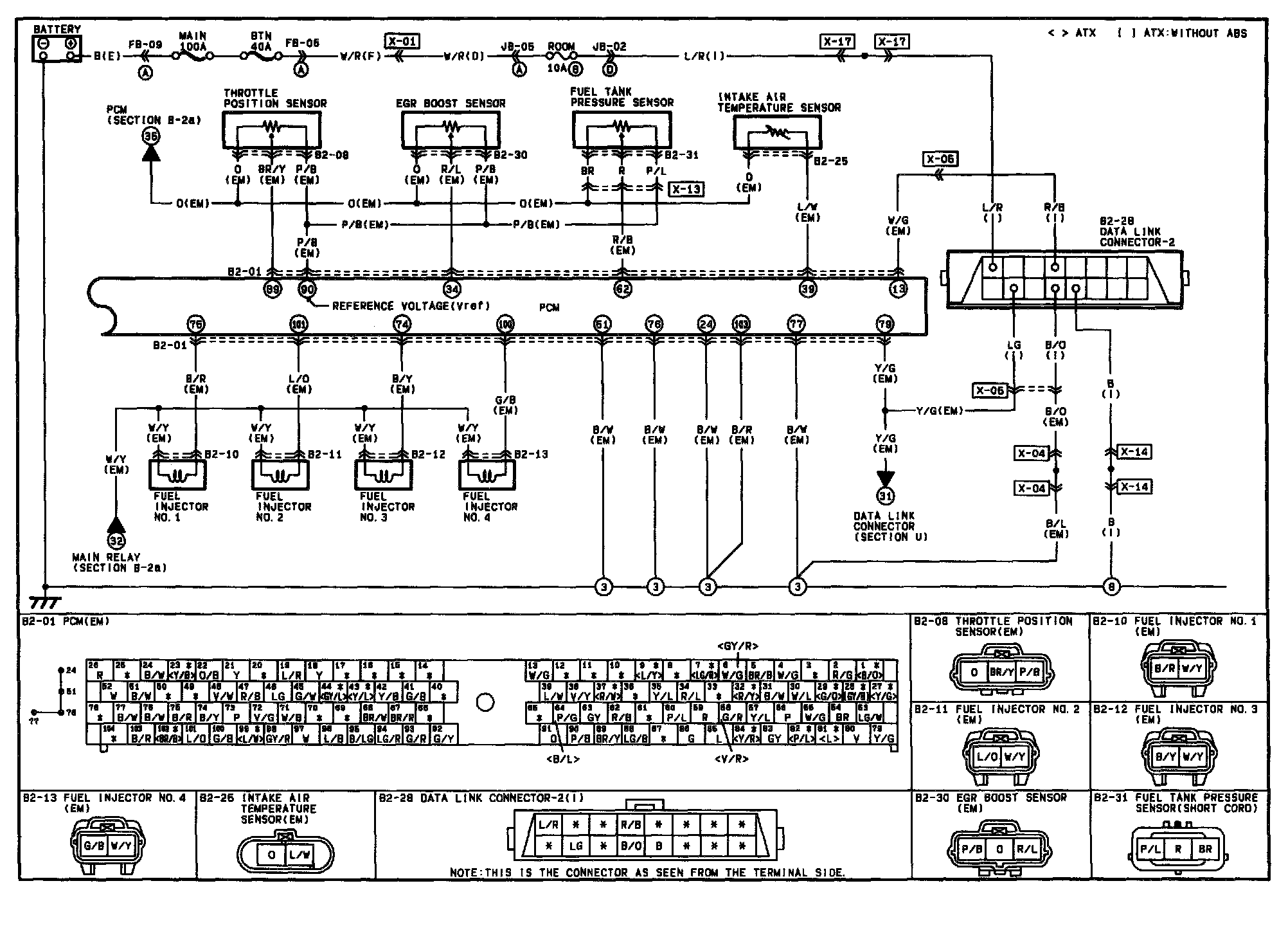

B-2b - EC-AT Control System (FS)/Engine Control System Circuit (FS):

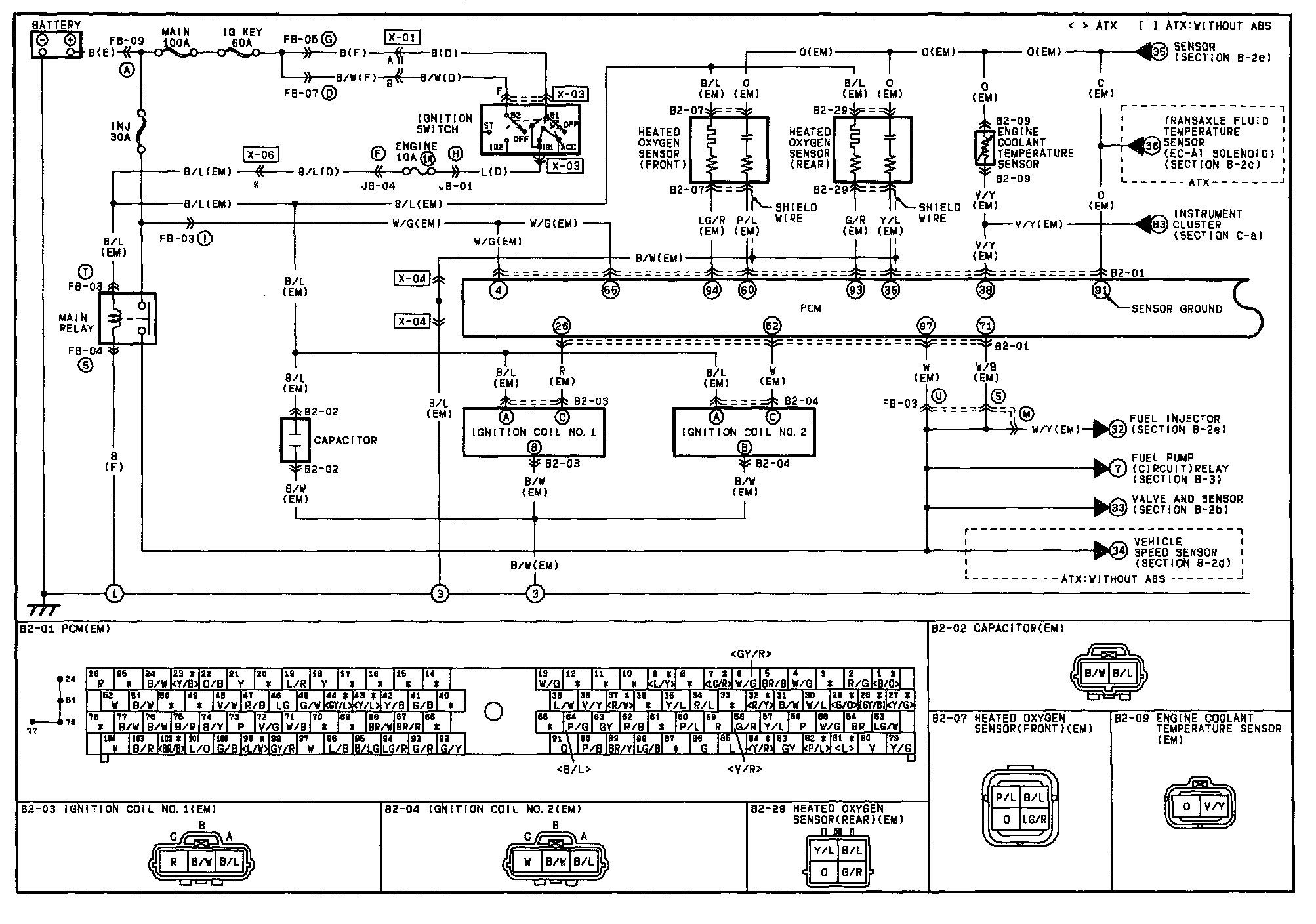

B-2c - EC-AT Control System (FS)/Engine Control System Circuit (FS):

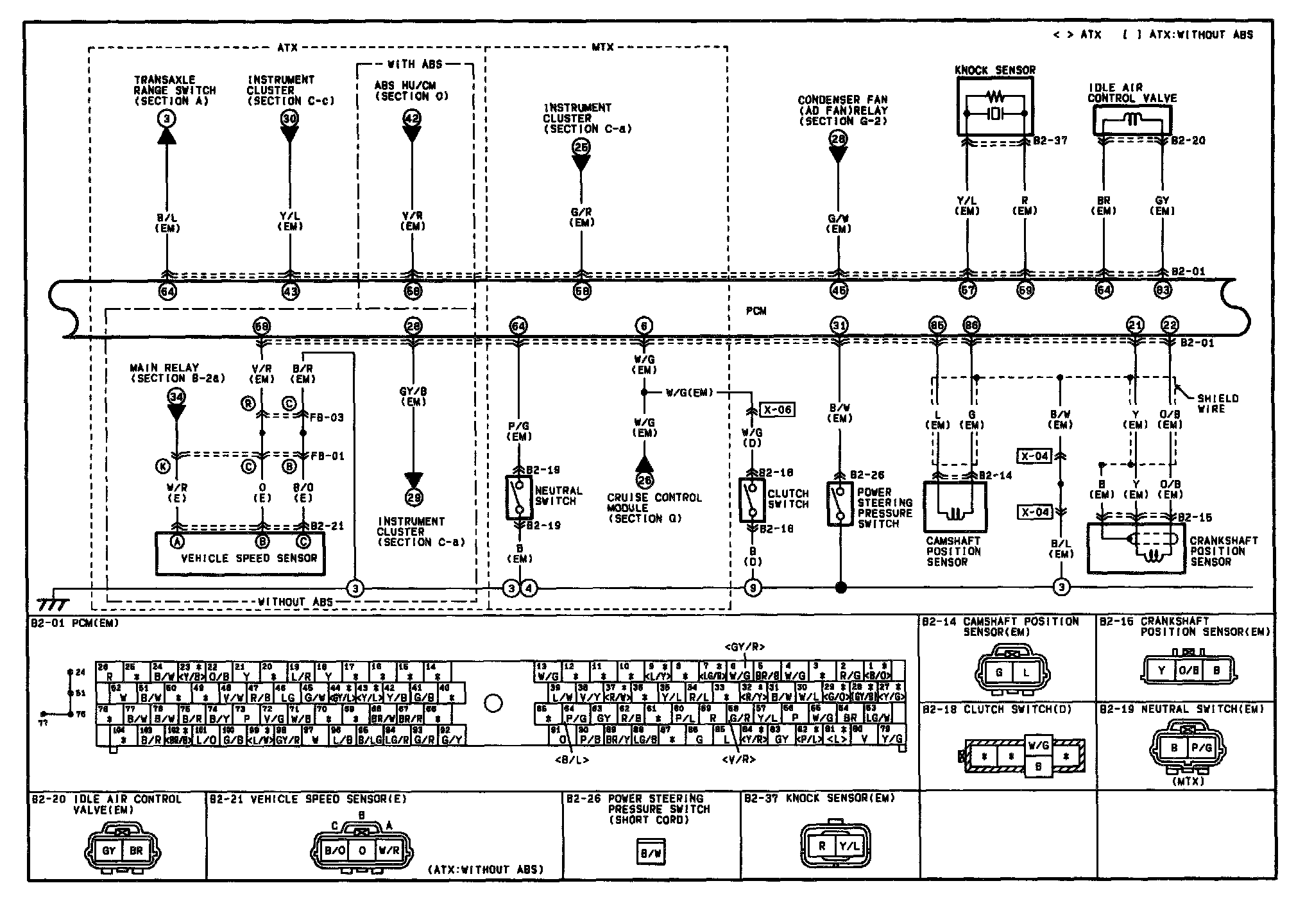

B-2d - EC-AT Control System (FS)/Engine Control System Circuit (FS):

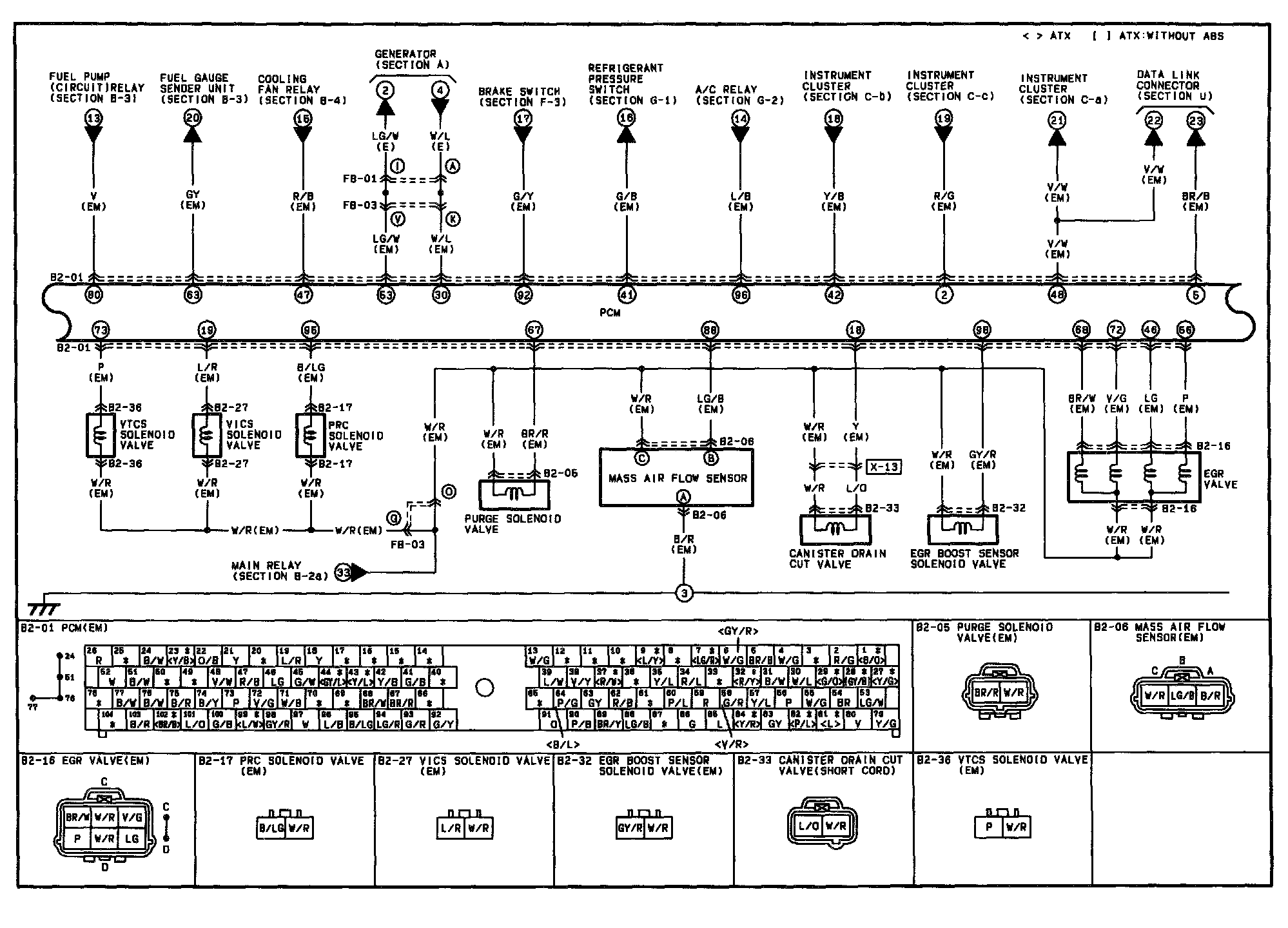

B-2e - EC-AT Control System (FS)/Engine Control System Circuit (FS):




Wiring Diagrams


NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
