Manual Transmission/Transaxle

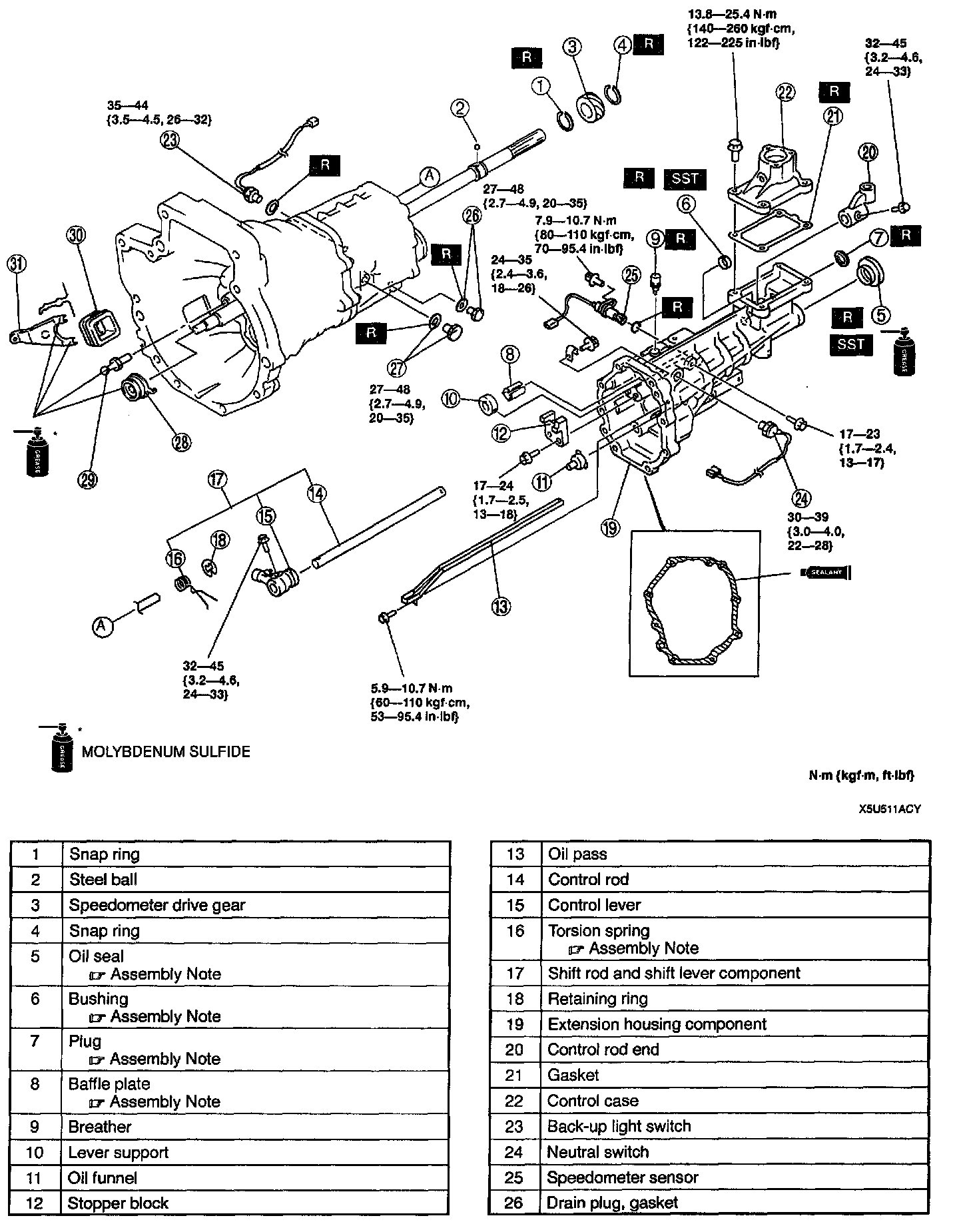

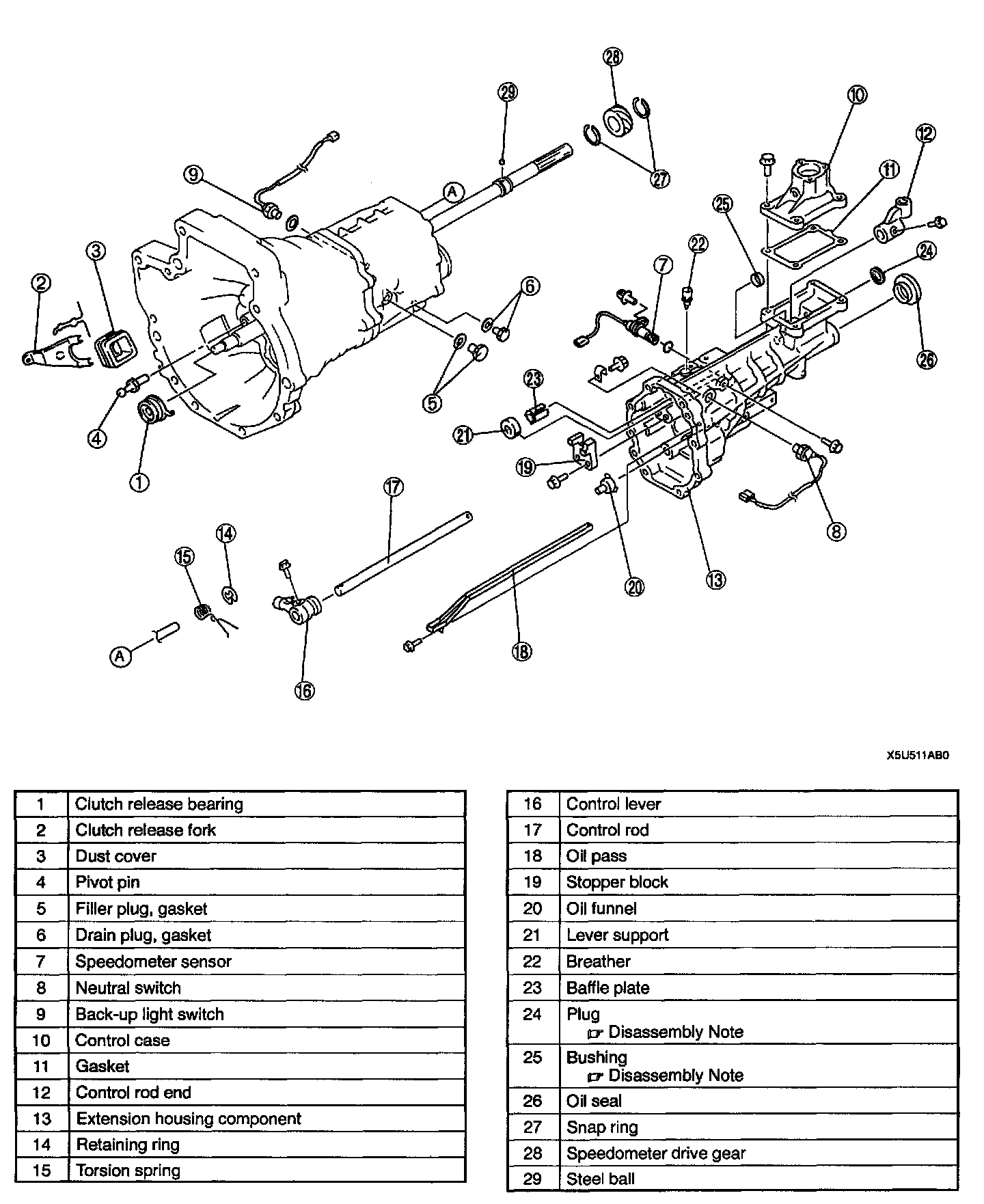

EXTENSION HOUSING COMPONENT





DISASSEMBLY

ASSEMBLY





Part 1 of 2





Part 2 of 2

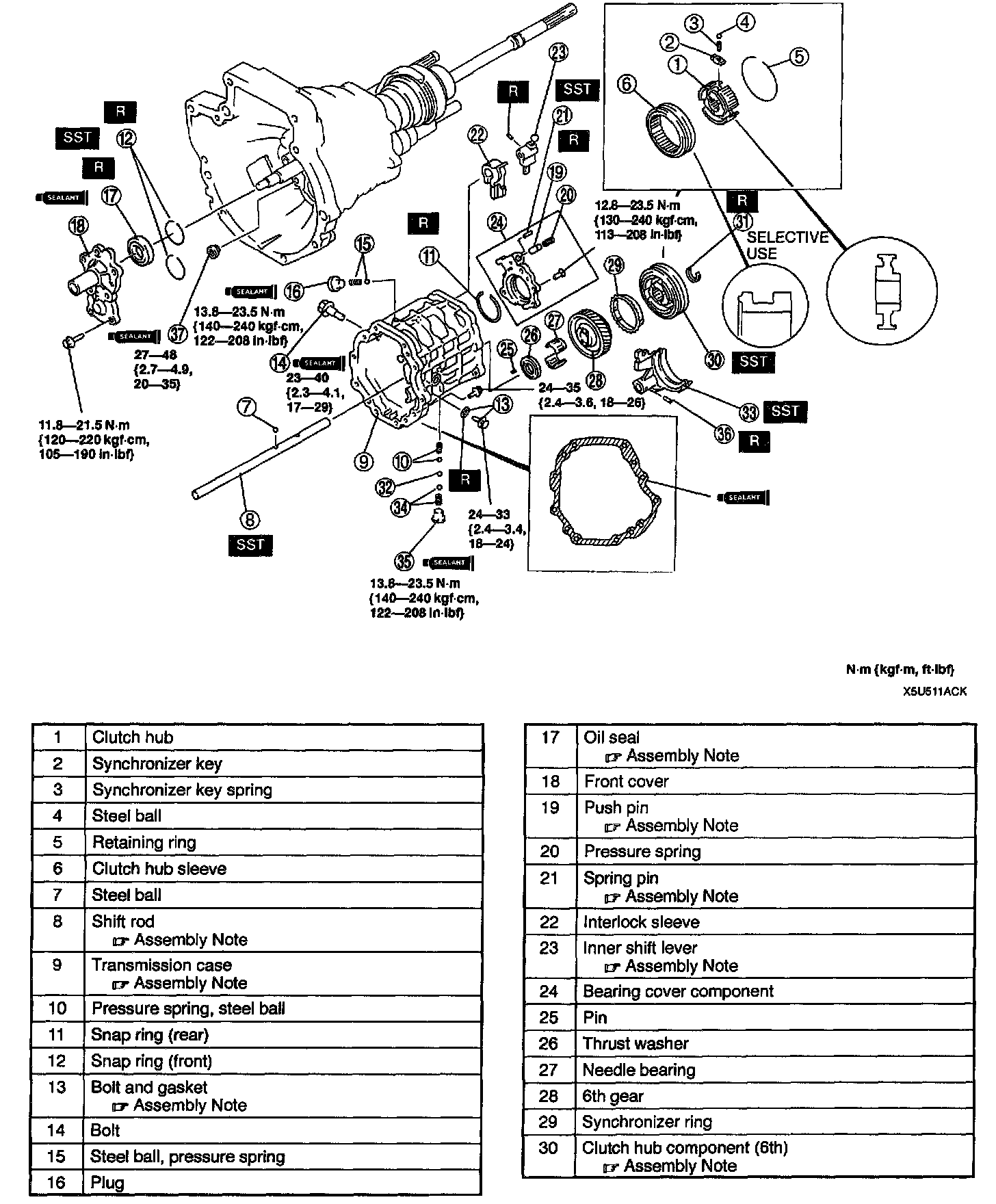

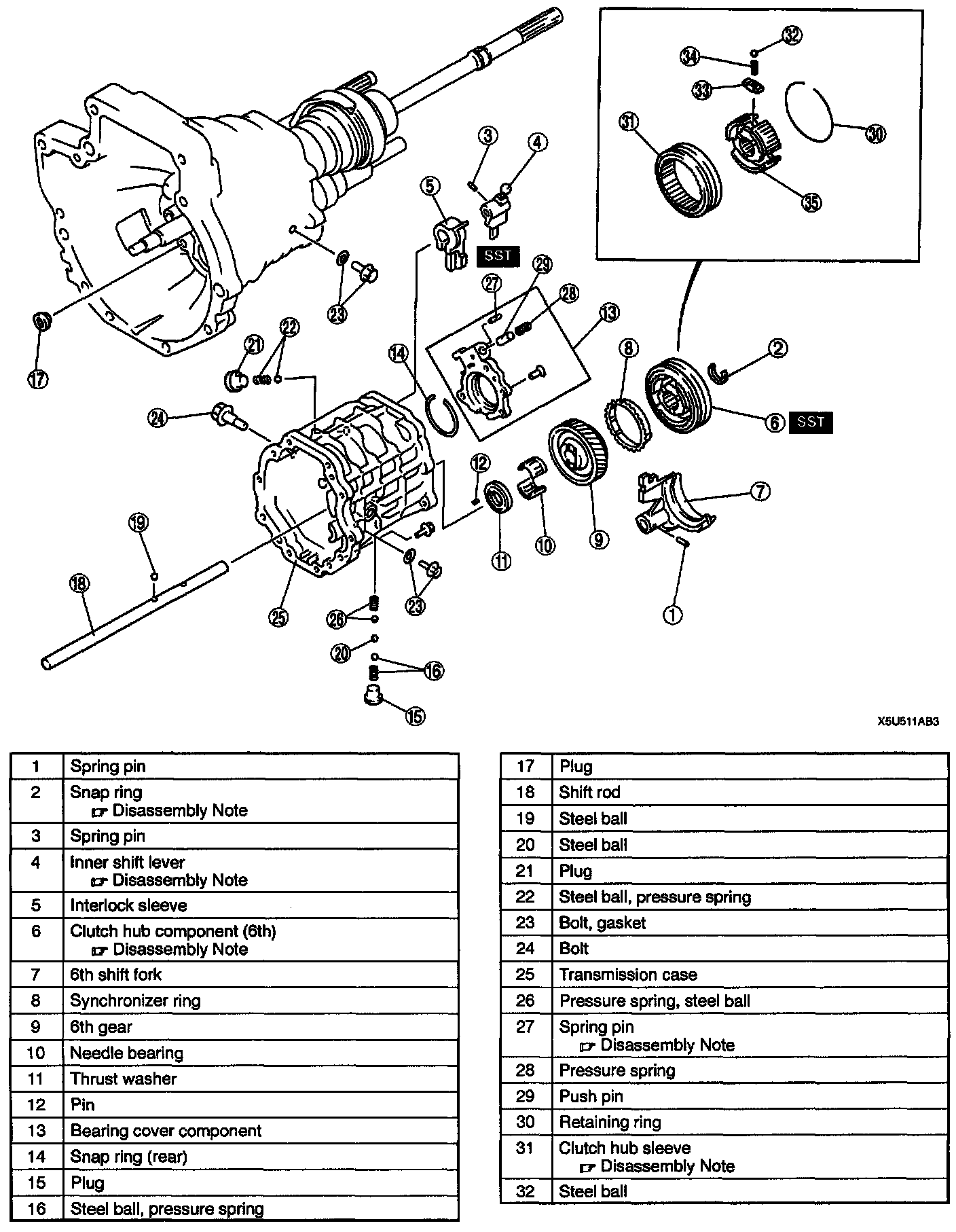

TRANSMISSION CASE AND 6TH GEAR COMPONENT

DISASSEMBLY





Part 1 of 2





Part 2 of 2

ASSEMBLY





Part 1 of 2





Part 2 of 2

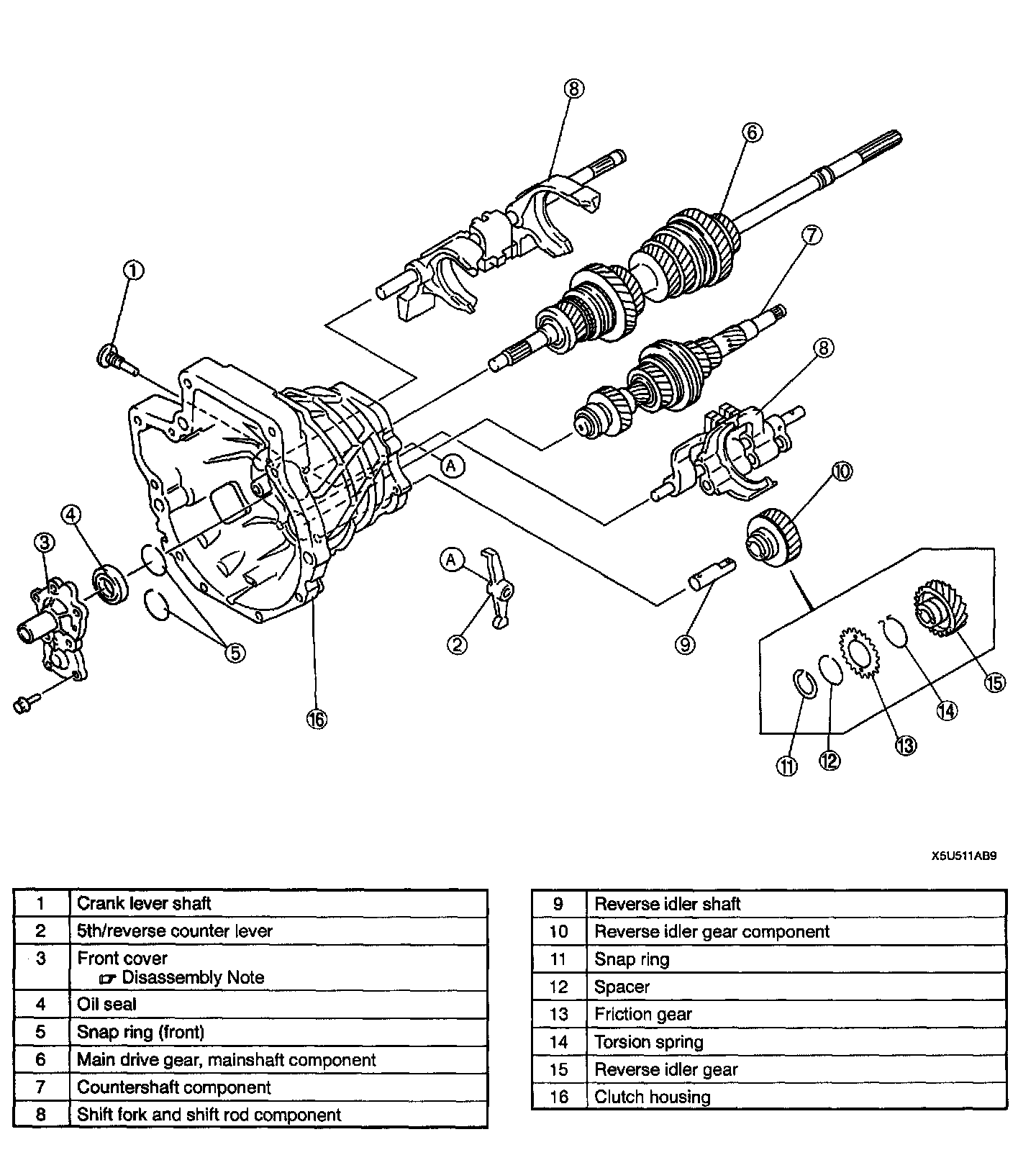

CLUTCH HOUSING COMPONENT DISASSEMBLY

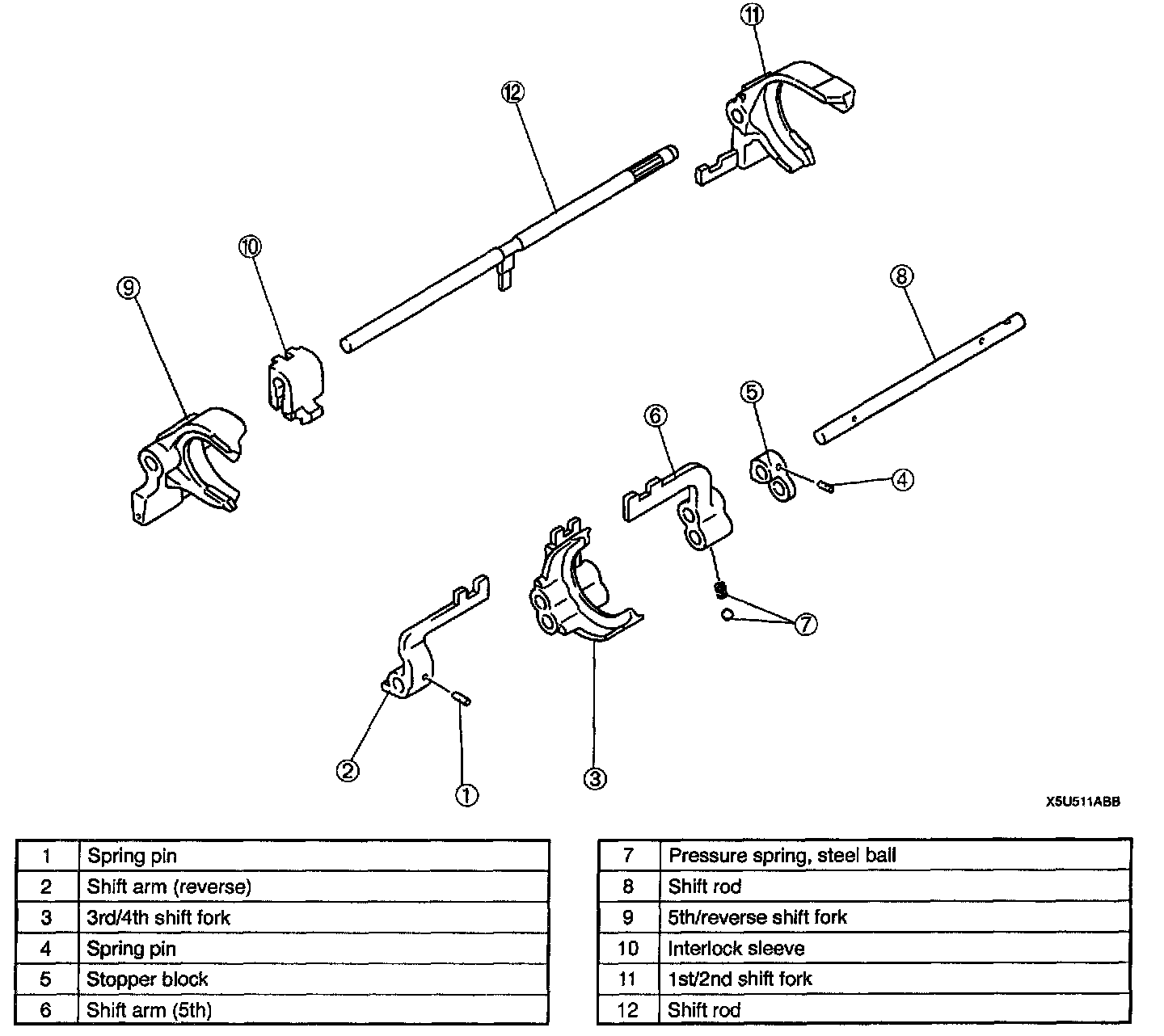

SHIFT FORK AND SHIFT ROD COMPONENT DISASSEMBLY

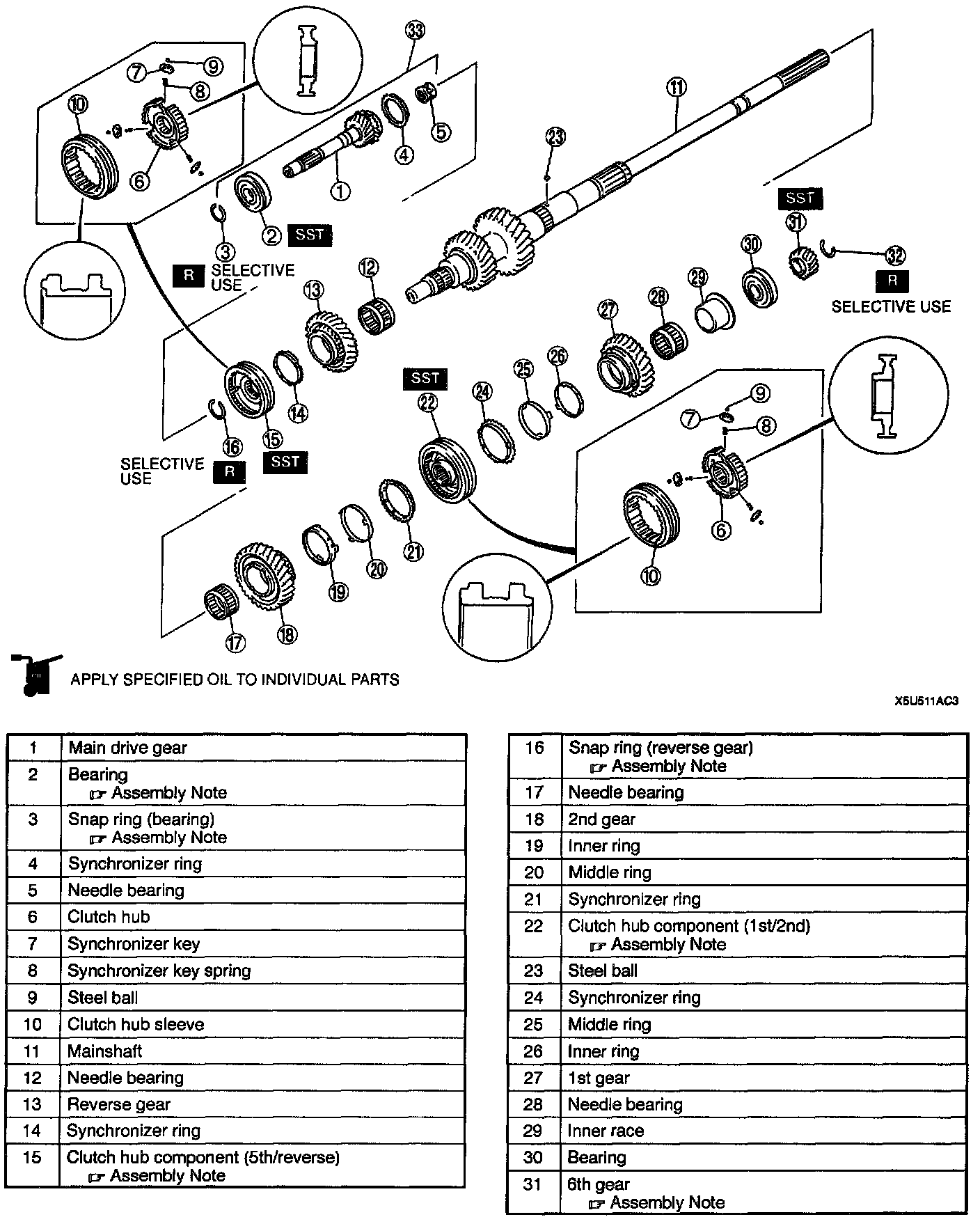

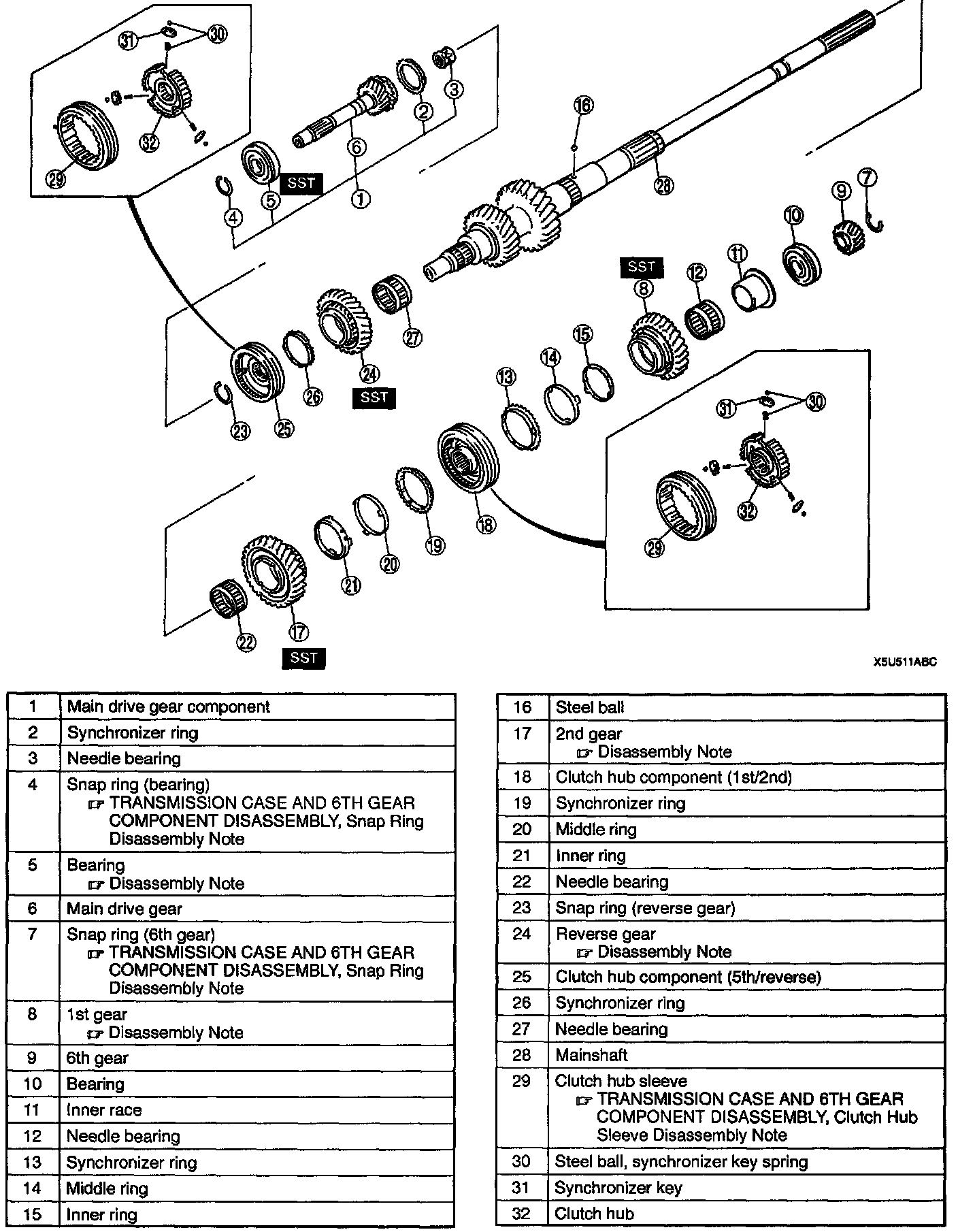

MAIN DRIVE GEAR AND MAINSHAFT COMPONENT





DISASSEMBLY

ASSEMBLY





Part 1 of 2





Part 2 of 2

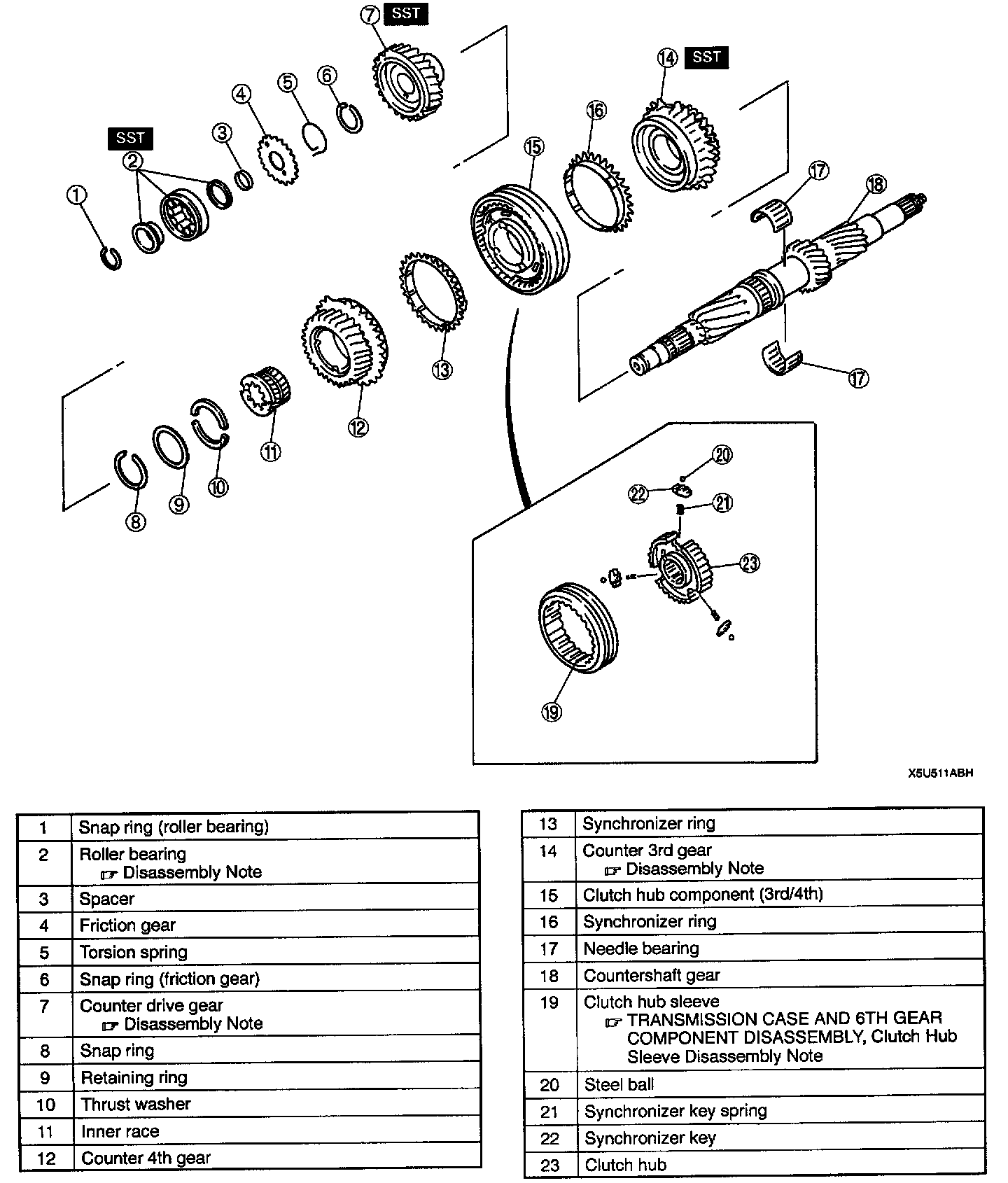

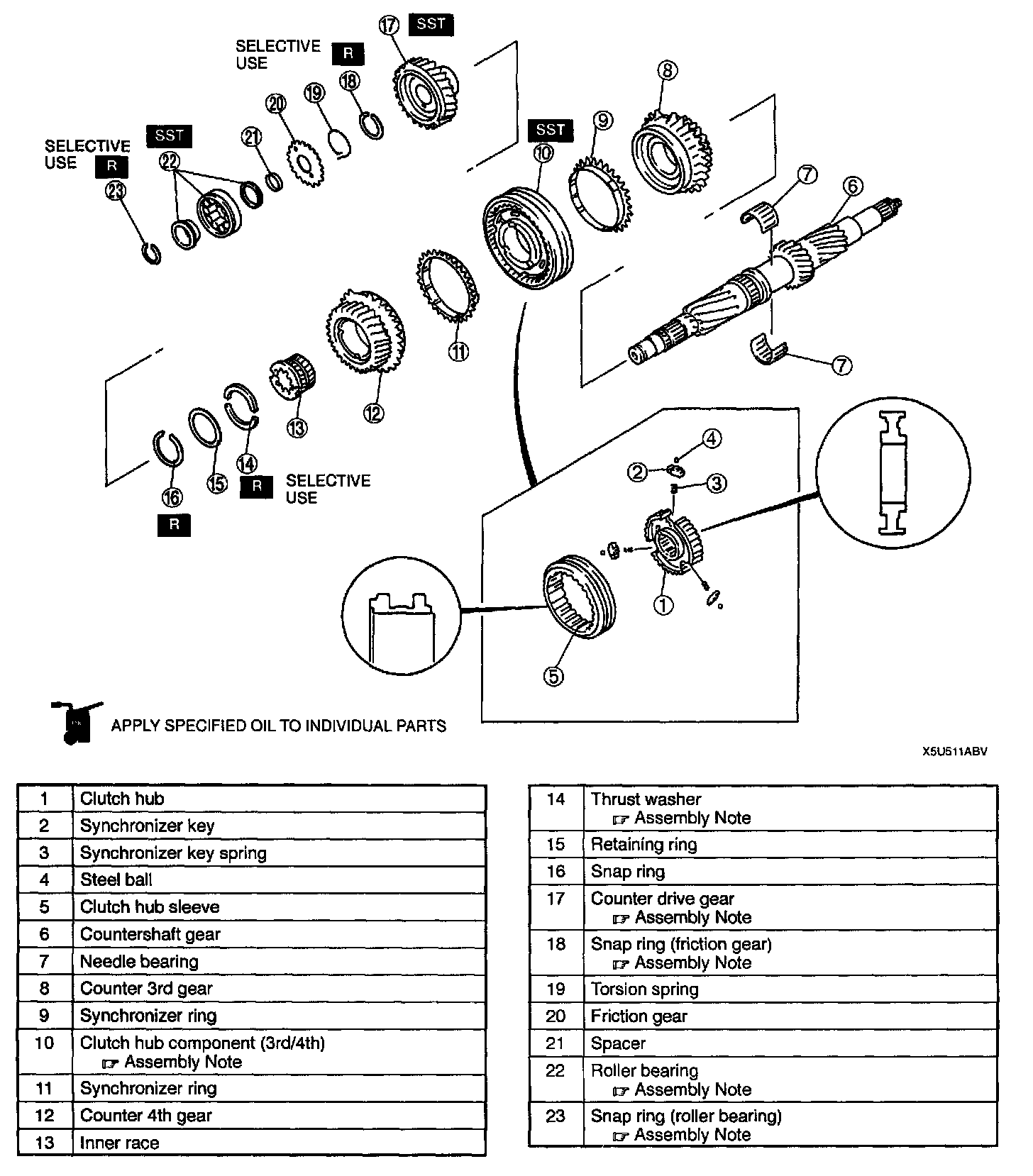

COUNTERSHAFT COMPONENT





DISASSEMBLY





ASSEMBLY

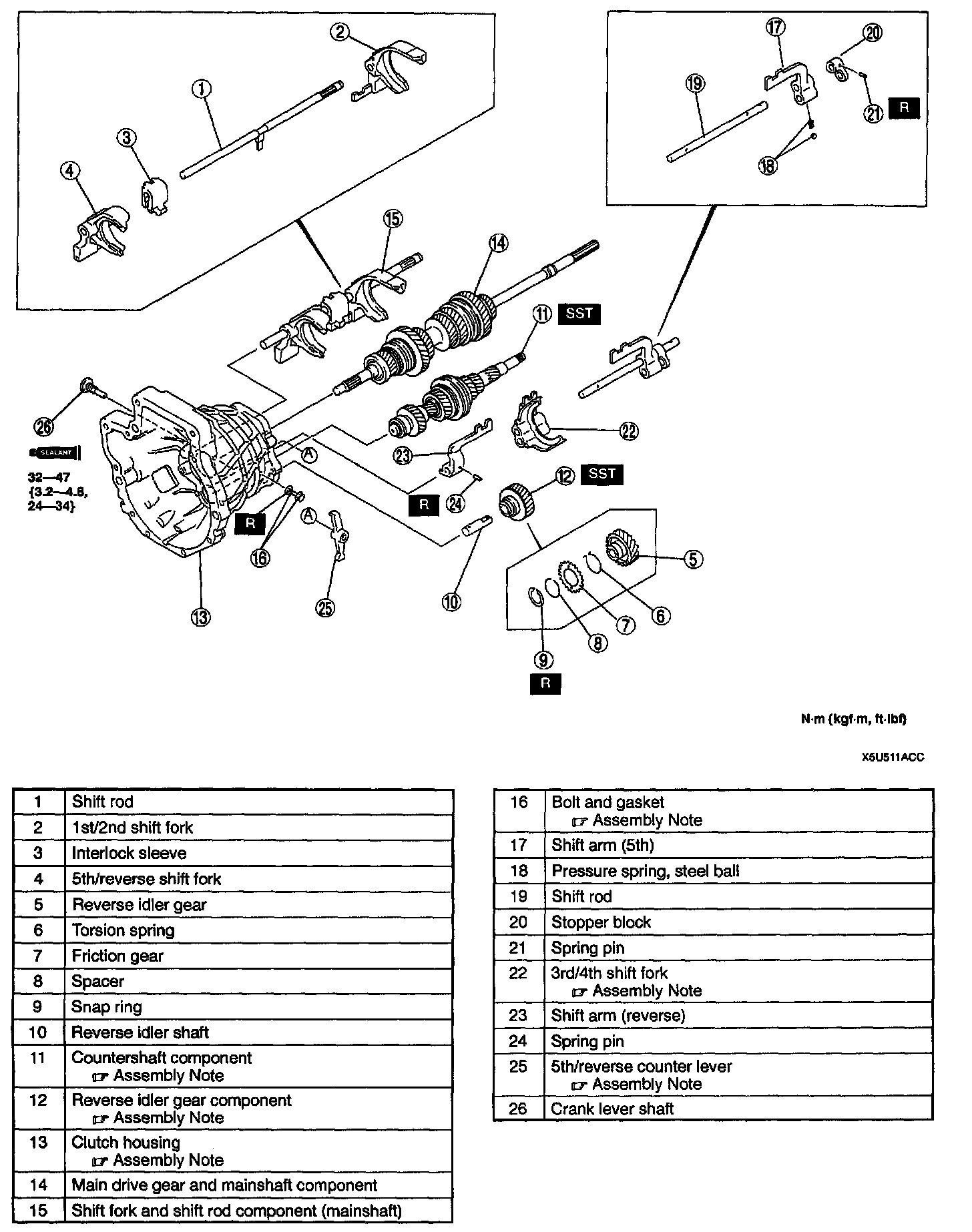

CLUTCH HOUSING COMPONENT, SHIFT FORK AND SHIFT ROD COMPONENT ASSEMBLY
