2-4 Brake Band Disassembly
Disassemble in the order indicated in the figure.

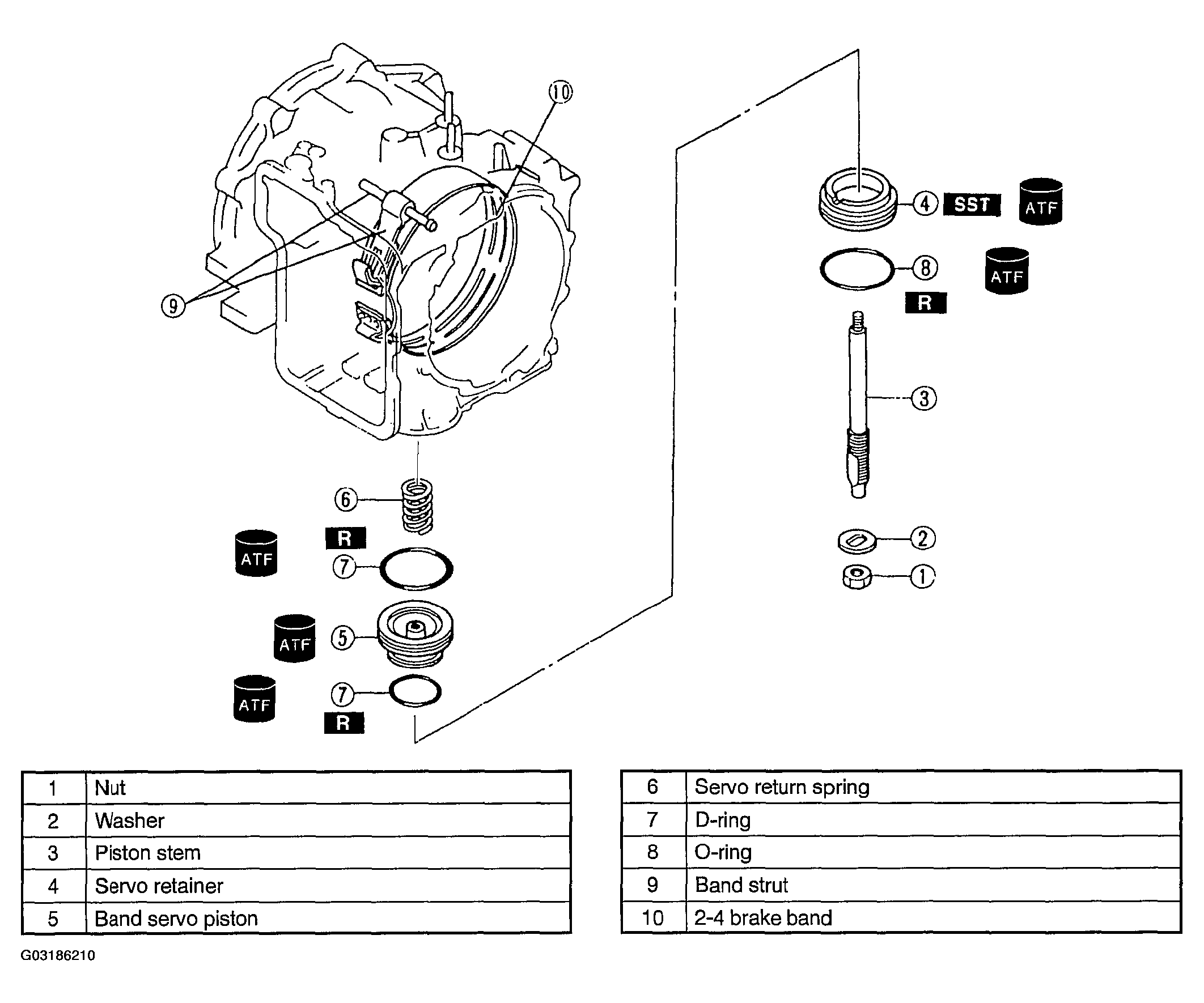

Fig 1: Disassembling 2-4 Brake Band
