Removal & Installation (Miata)

Disconnect negative battery cable. Remove front side trim. Disconnect key interlock solenoid connector. Remove key interlock solenoid. See Fig 1 . To install, reverse order of removal.

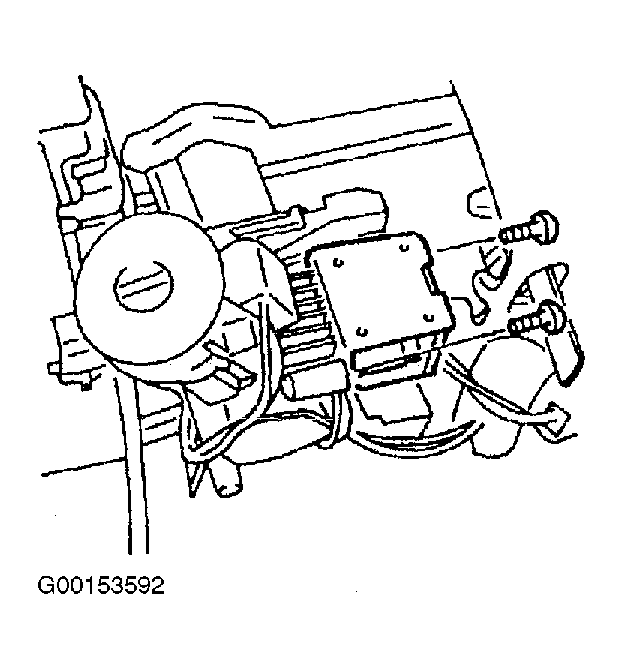

Fig 1: Removing Key Interlock Solenoid (Miata)

Courtesy of MAZDA MOTORS CORP.
