Disassembly Components

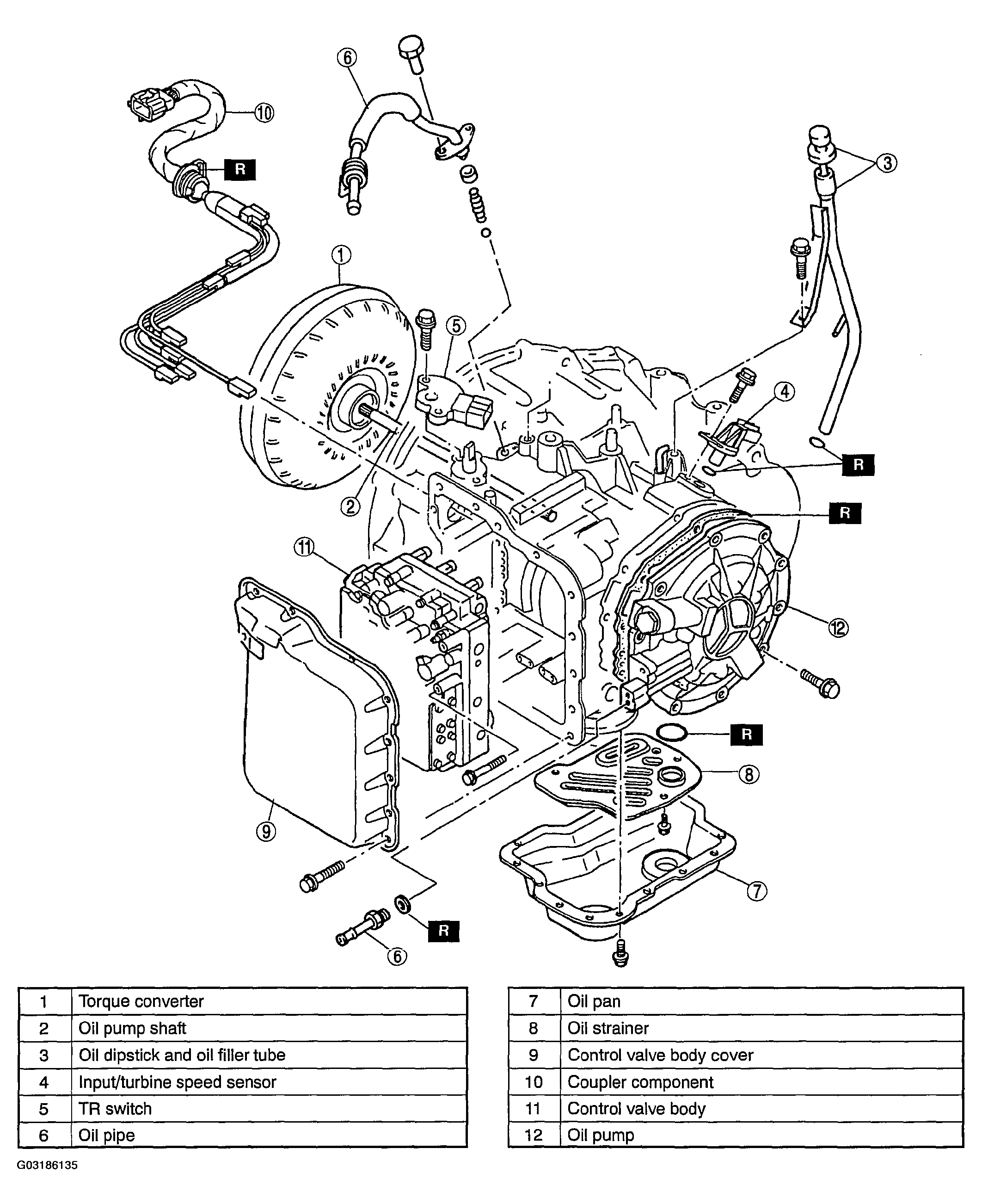

Fig 1: Removing Transaxle Components (1 Of 4)
G03186135

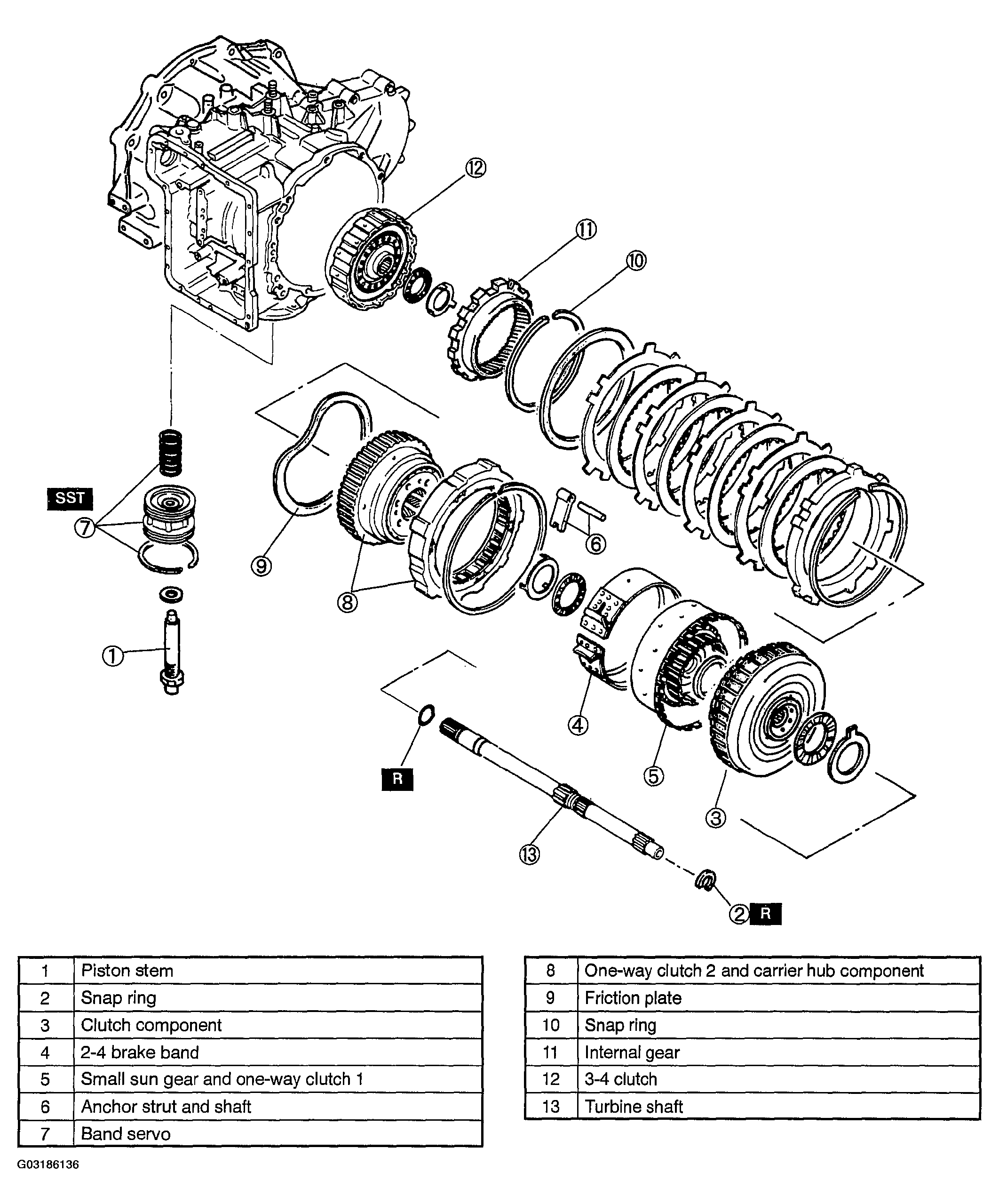

Fig 2: Removing Transaxle Components (2 Of 4)
G03186136

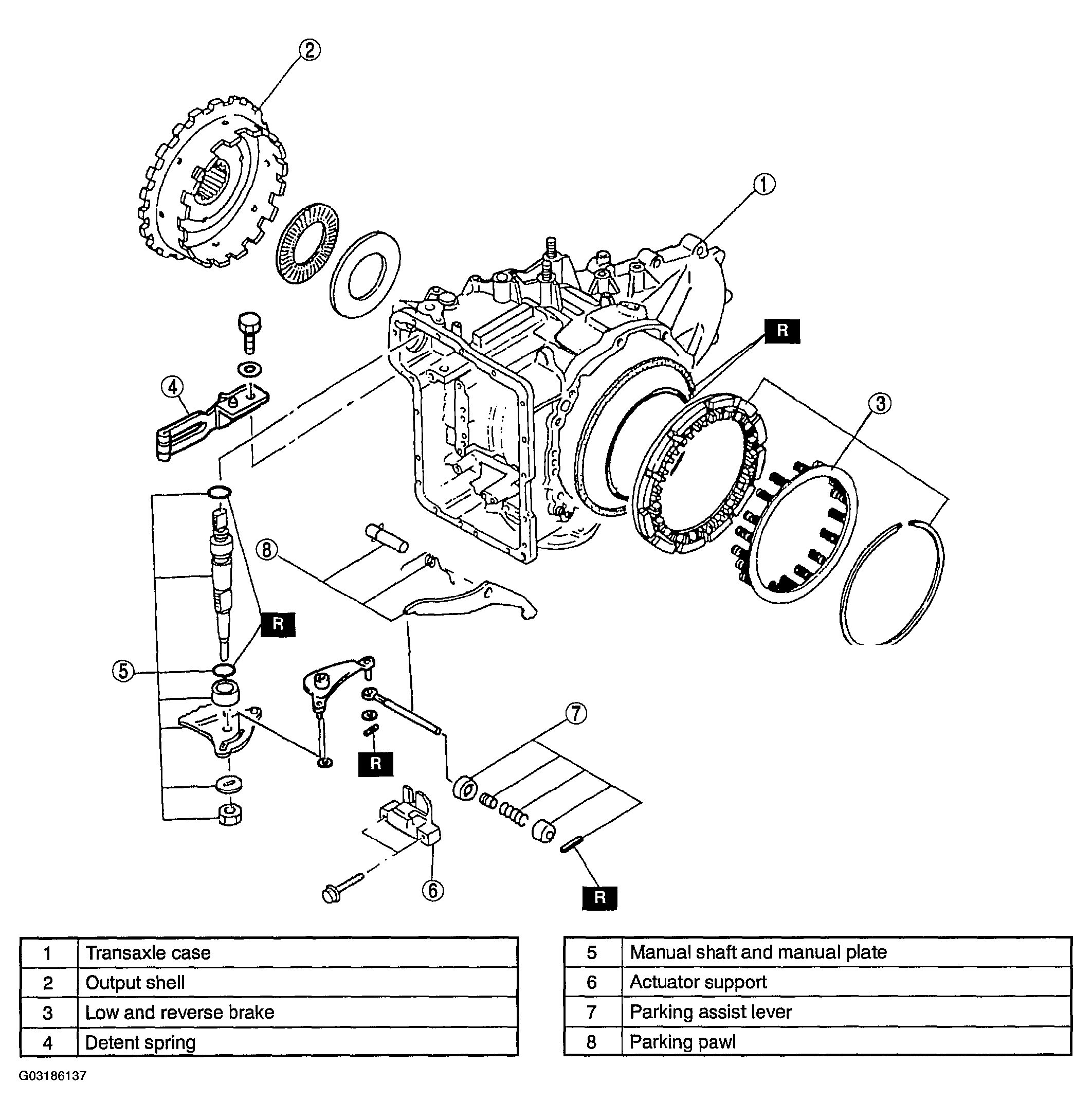

Fig 3: Removing Transaxle Components (3 Of 4)
G03186137

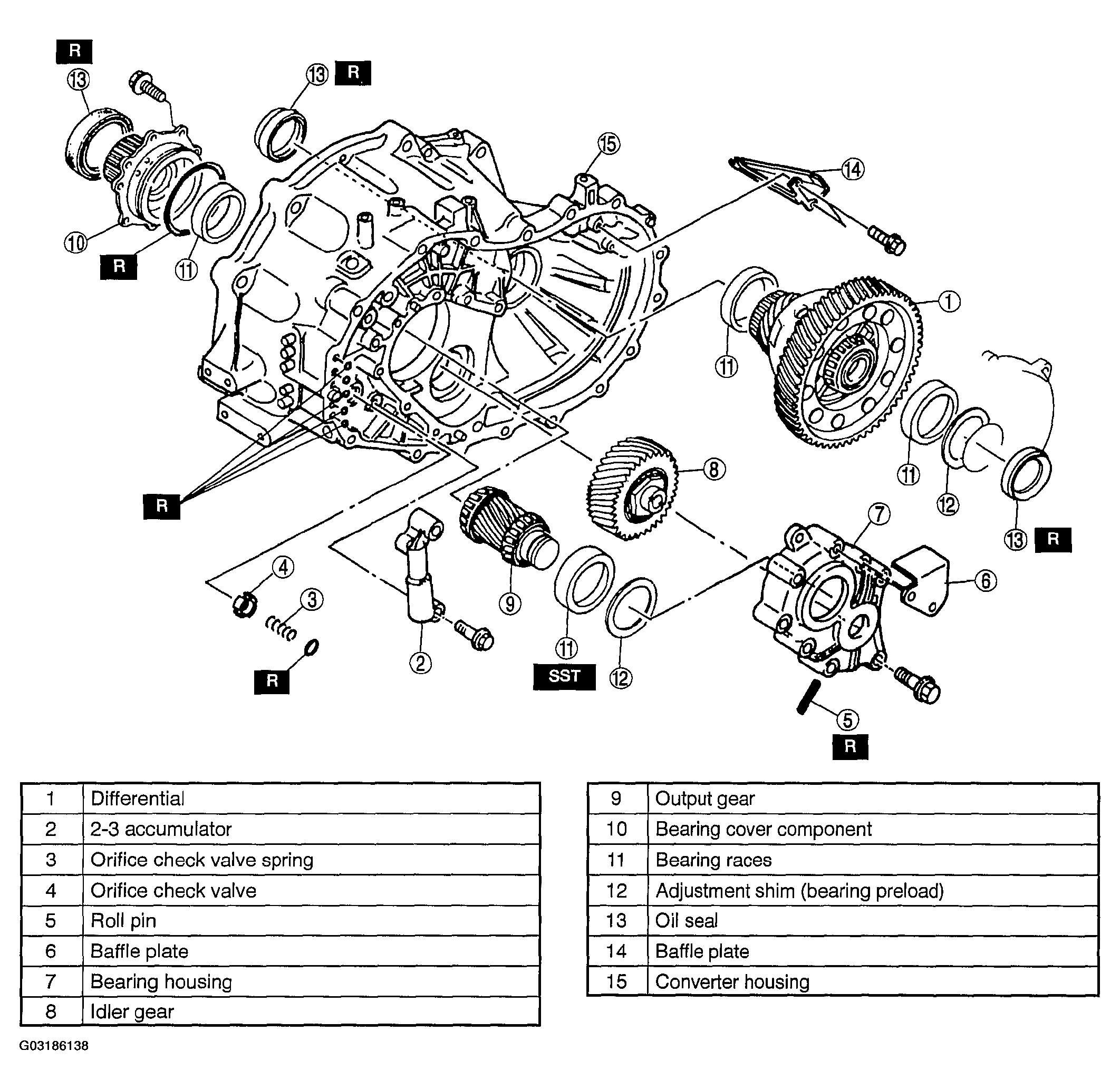

Fig 4: Removing Transaxle Components (4 Of 4)
G03186138
