Automatic Transaxle Assembly: Assembly

Bearing And Race Locations

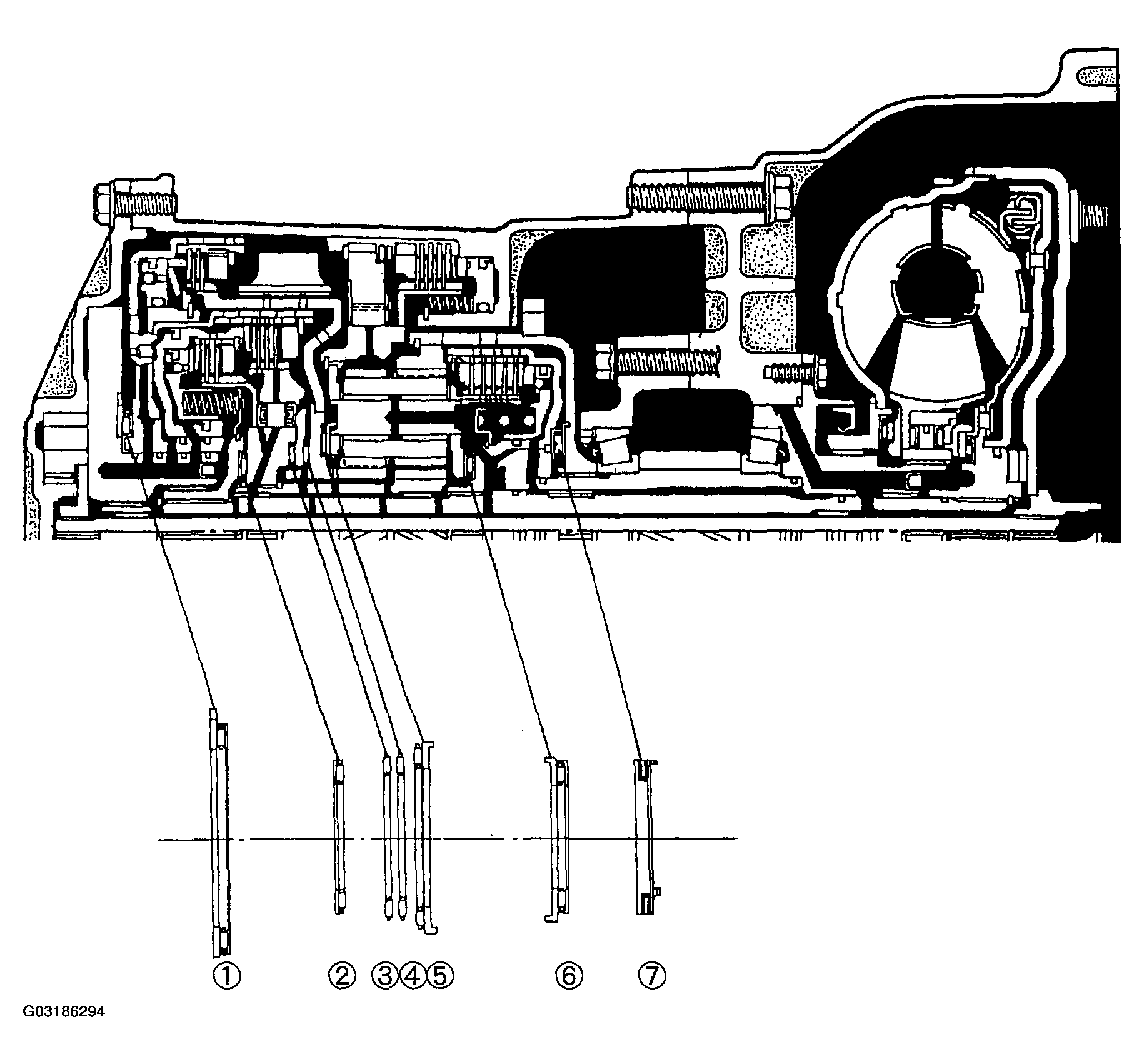

Fig 1: Bearing & Race Locations
G03186294
NOTE:
  • The bearing and race at locations 2, 3, 4, 6, and 7 are one-piece units.
