Active Command Modes Table

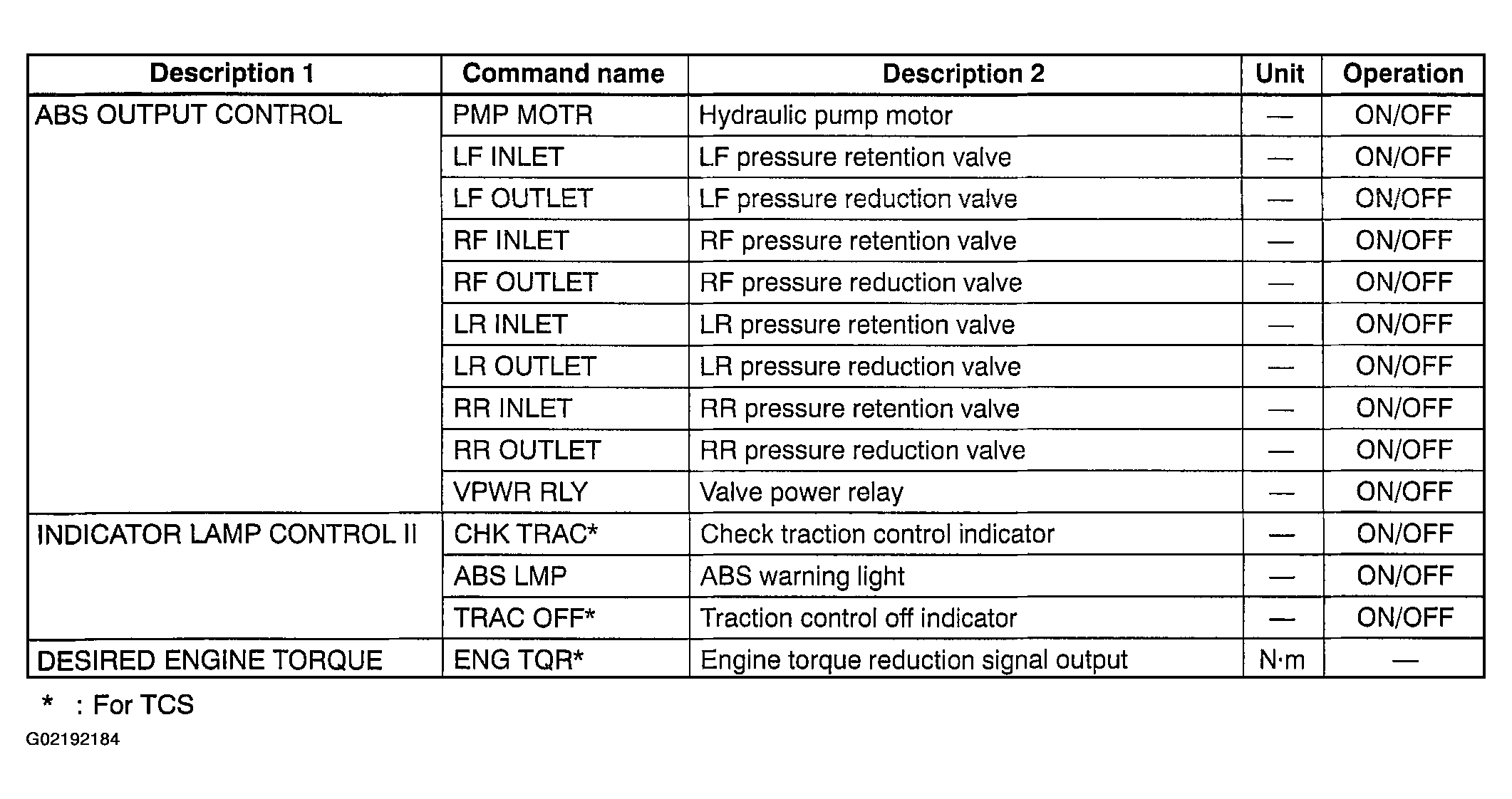

Fig 1: Active Command Modes Table
G02192184
NOTE:
  • When operating each valve forcibly, turn VPWR RLY on, and then each command on. VPWR RLY regulates the power supply for the eight valves.
