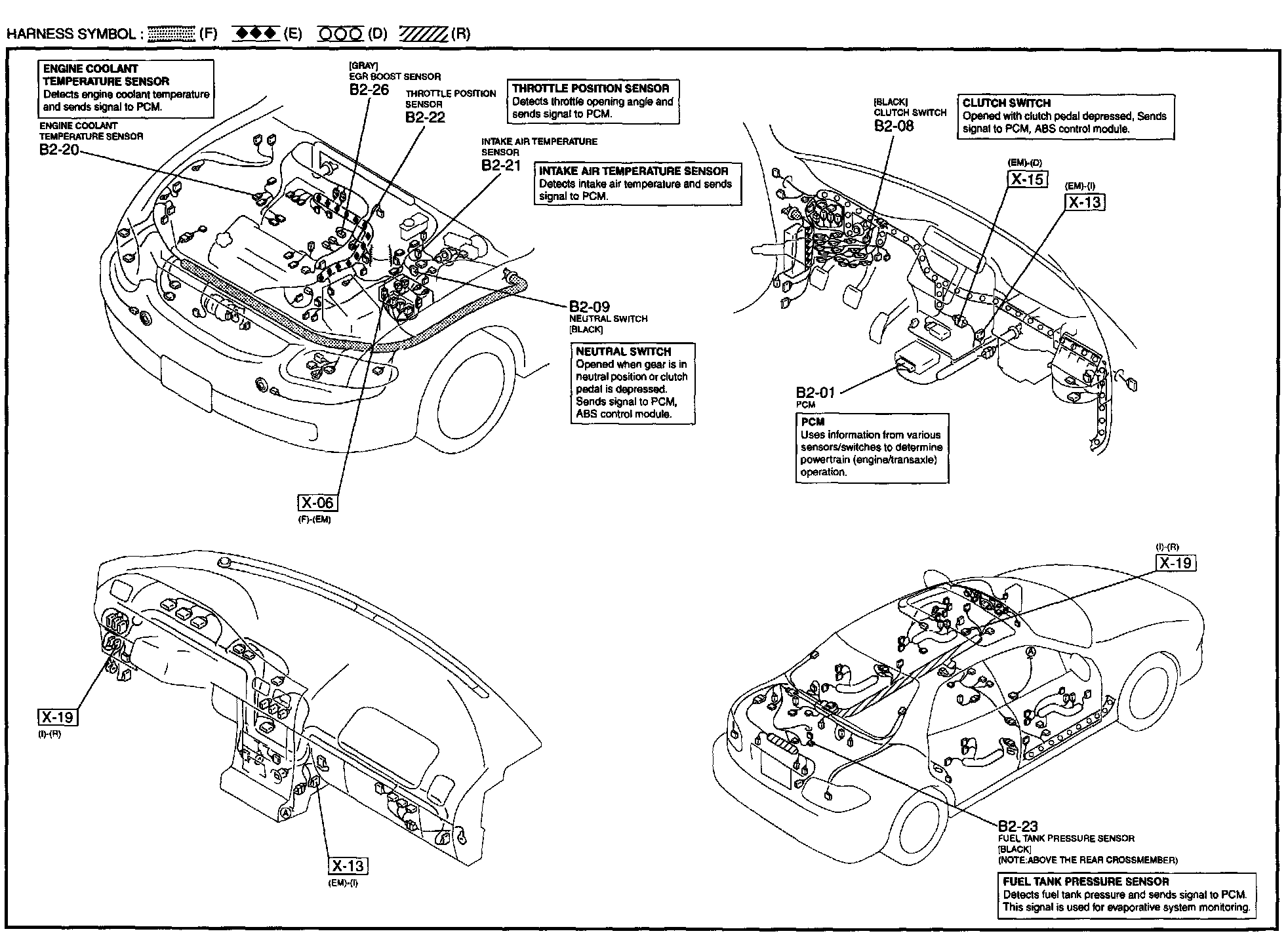

B-1 - EC-AT Control System / Engine Control System

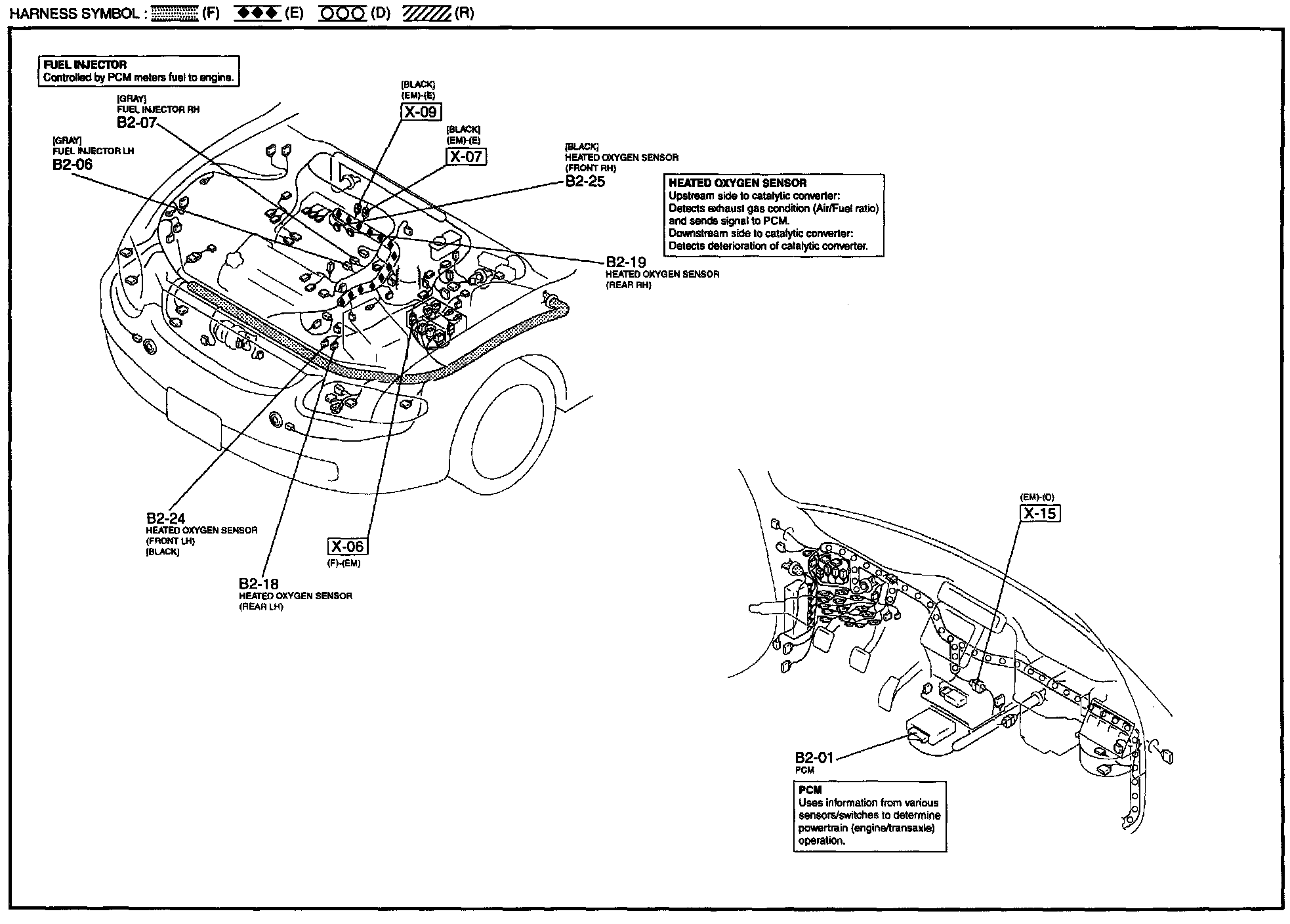

B-2a - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

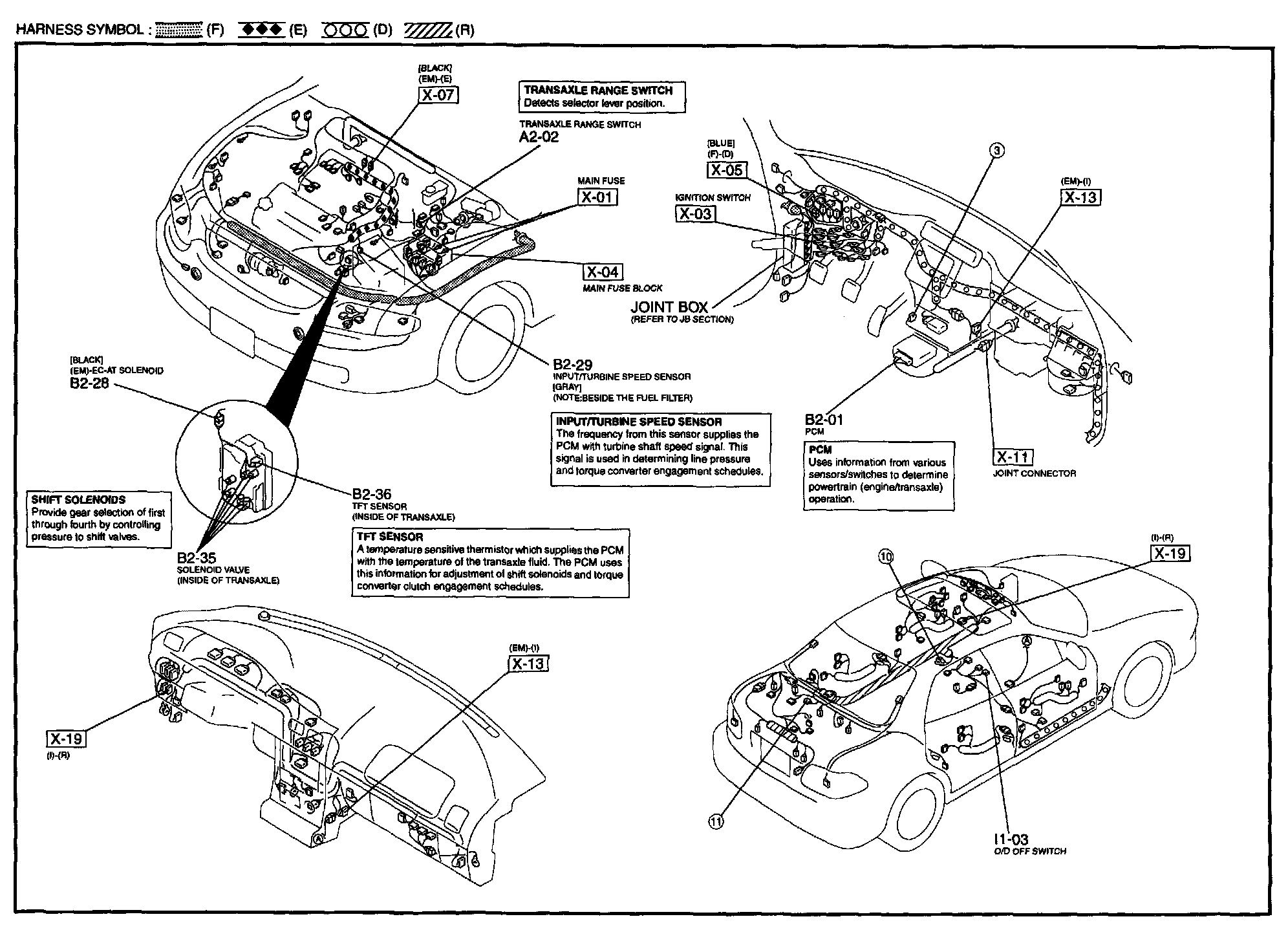

B-2b - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

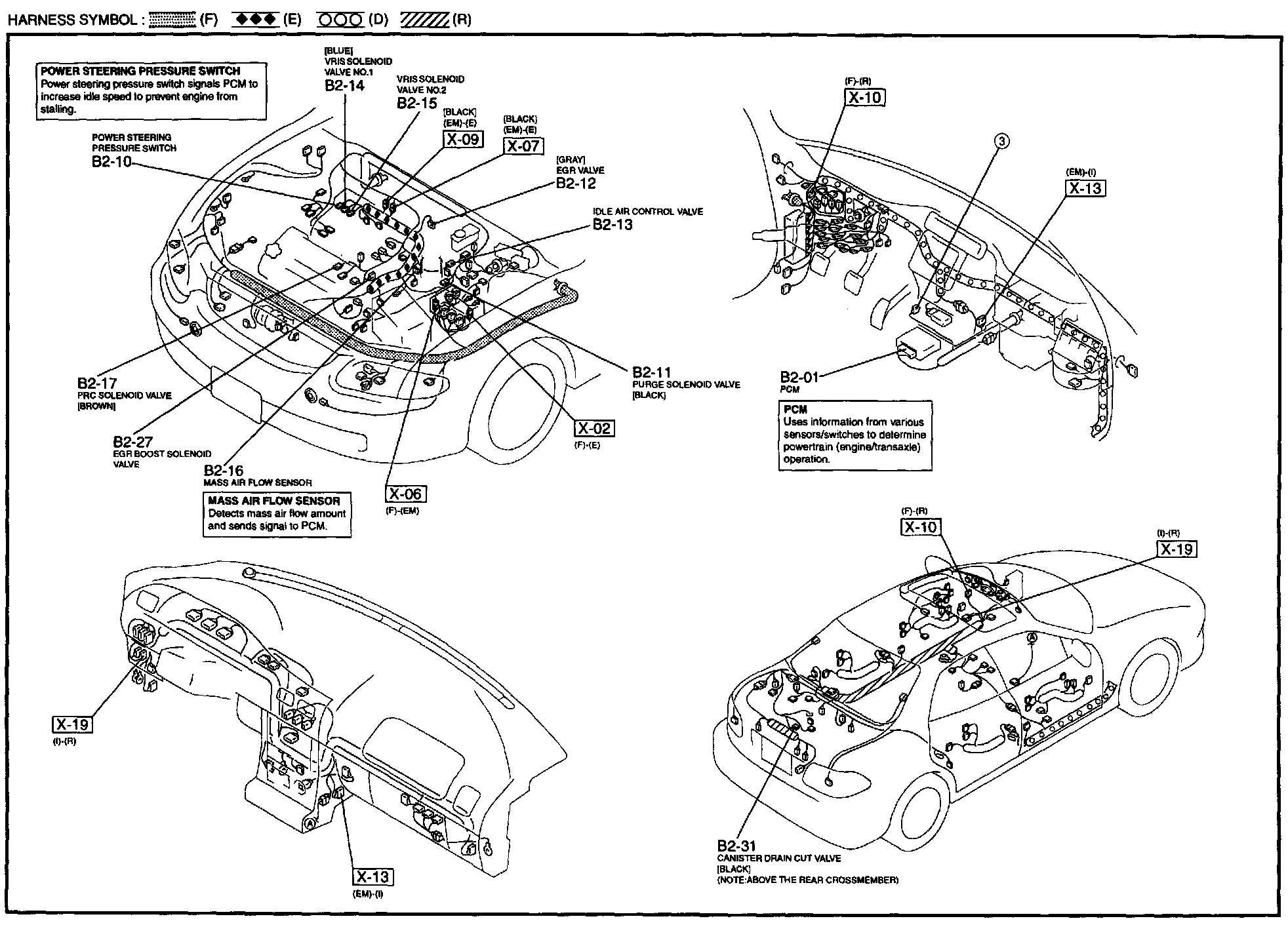

B-2c - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:

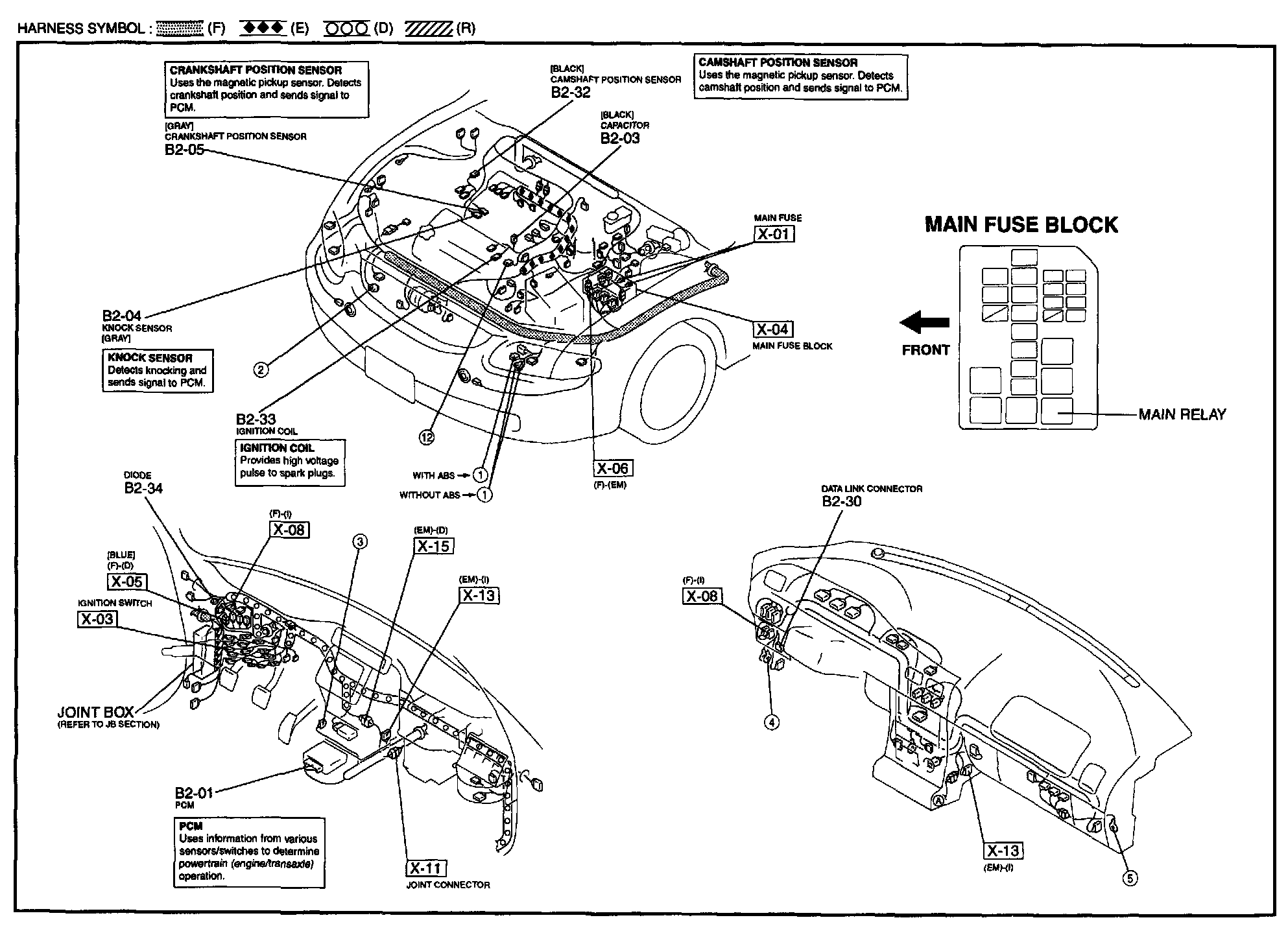

B-2d - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:



B-2e - EC-AT Control System (KL) / Engine Control System (KL) Harness / Connector Symbols:
