Control System

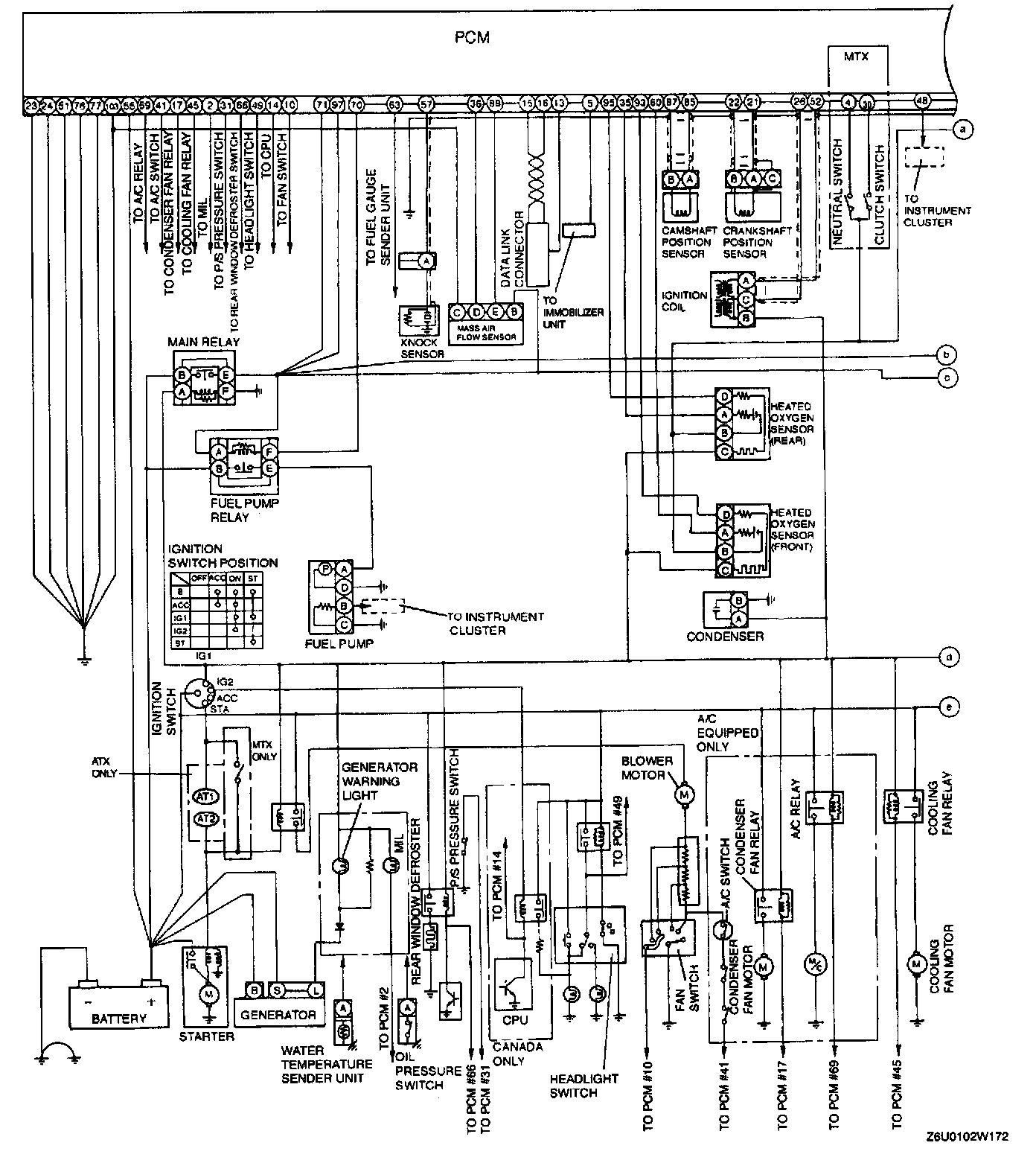

Control system Wiring Diagram - With Immobilizer System (Part 1):

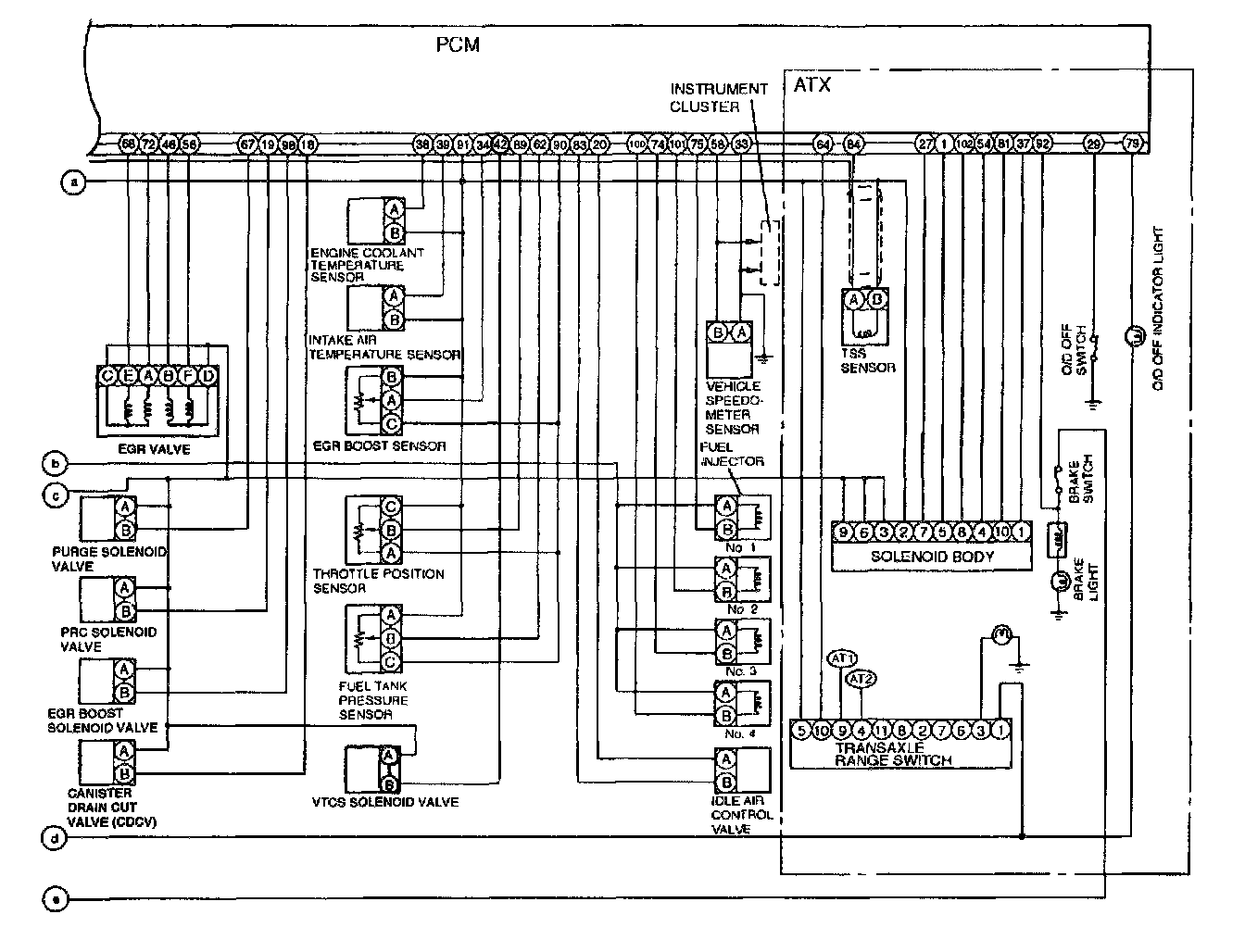

Control system Wiring Diagram - With Immobilizer System (Part 2):

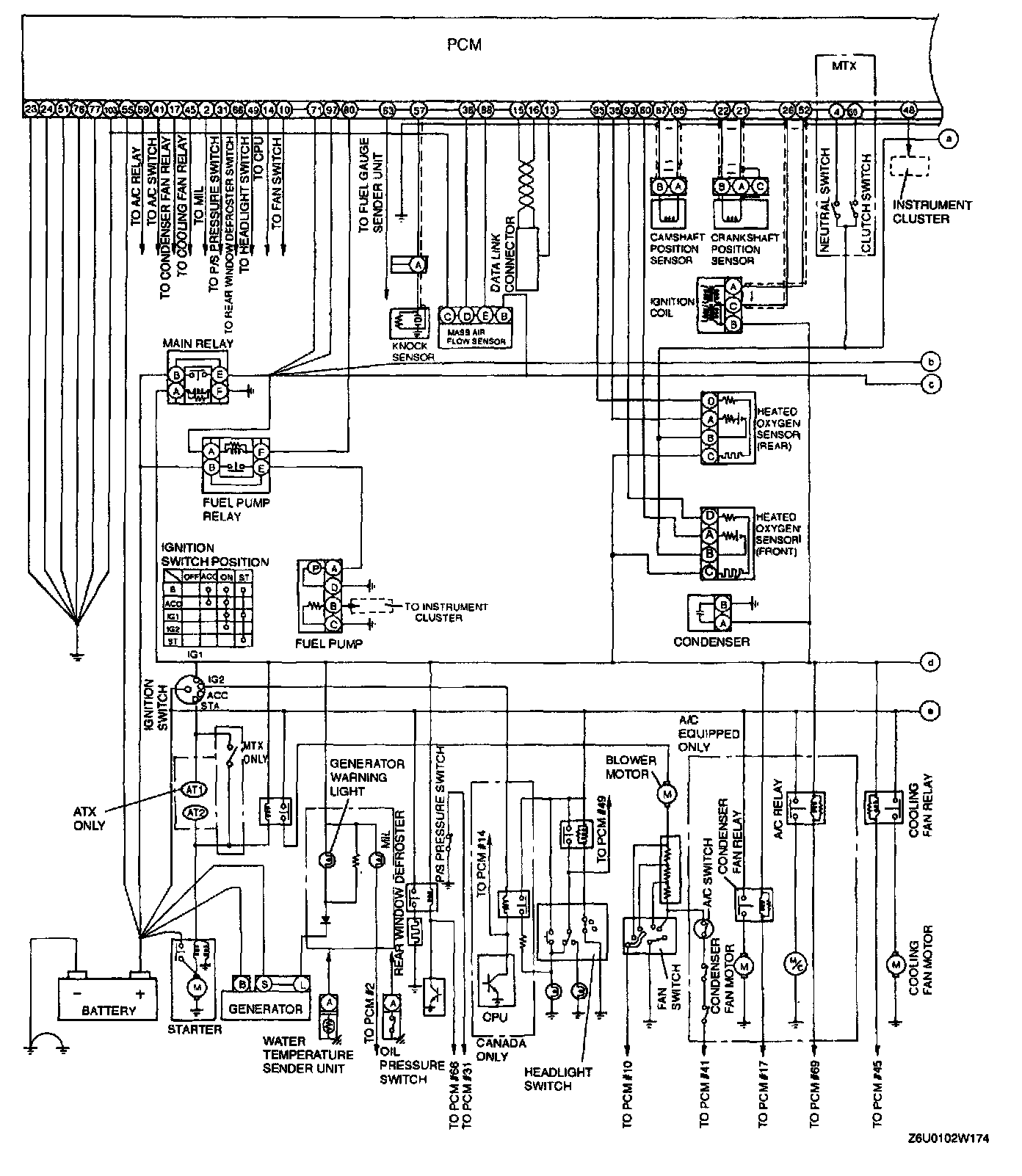

Control system Wiring Diagram - Without Immobilizer System (Part 1):

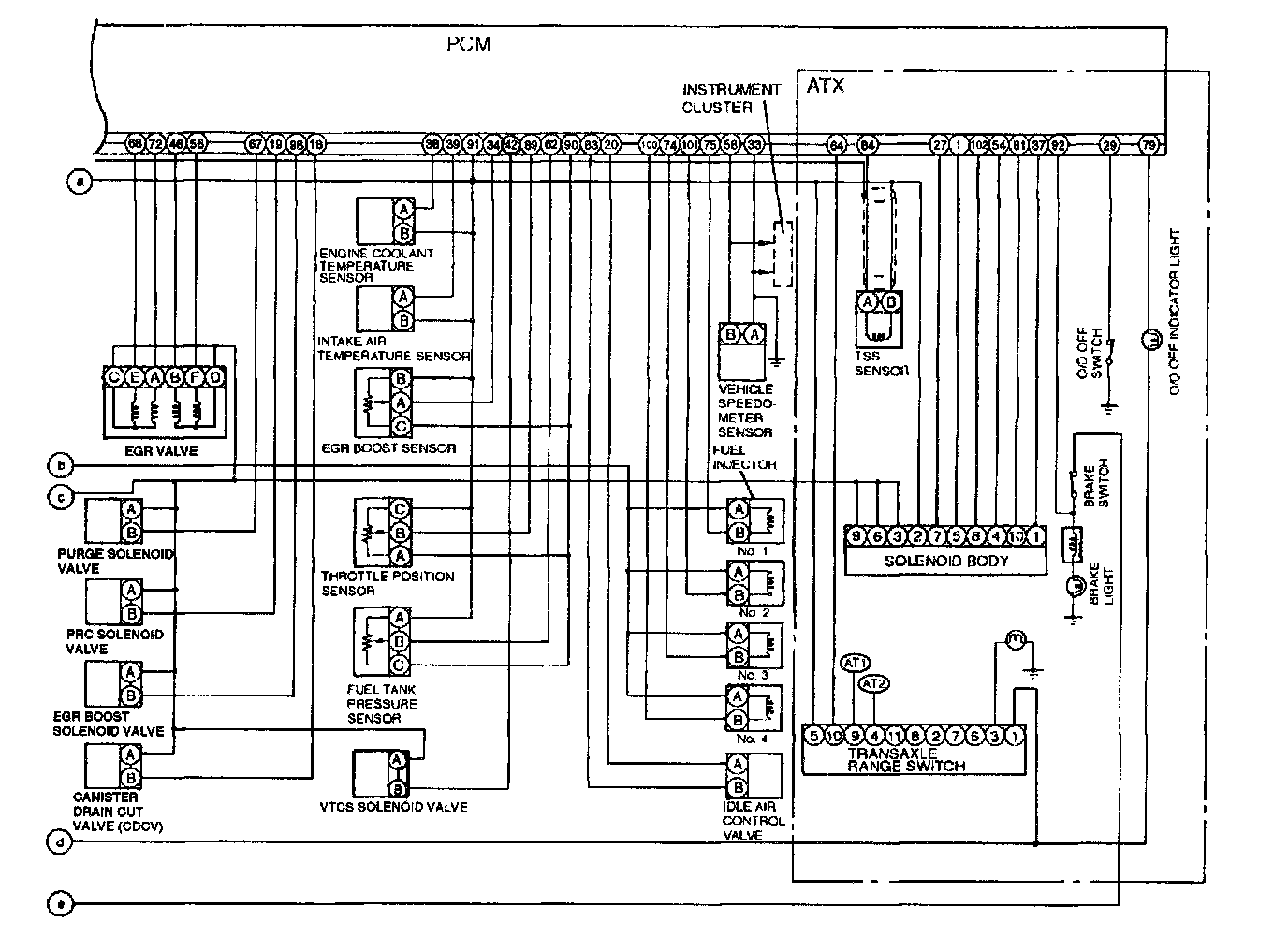

Control system Wiring Diagram - Without Immobilizer System (Part 2):

With Immobilizer (Part 1):

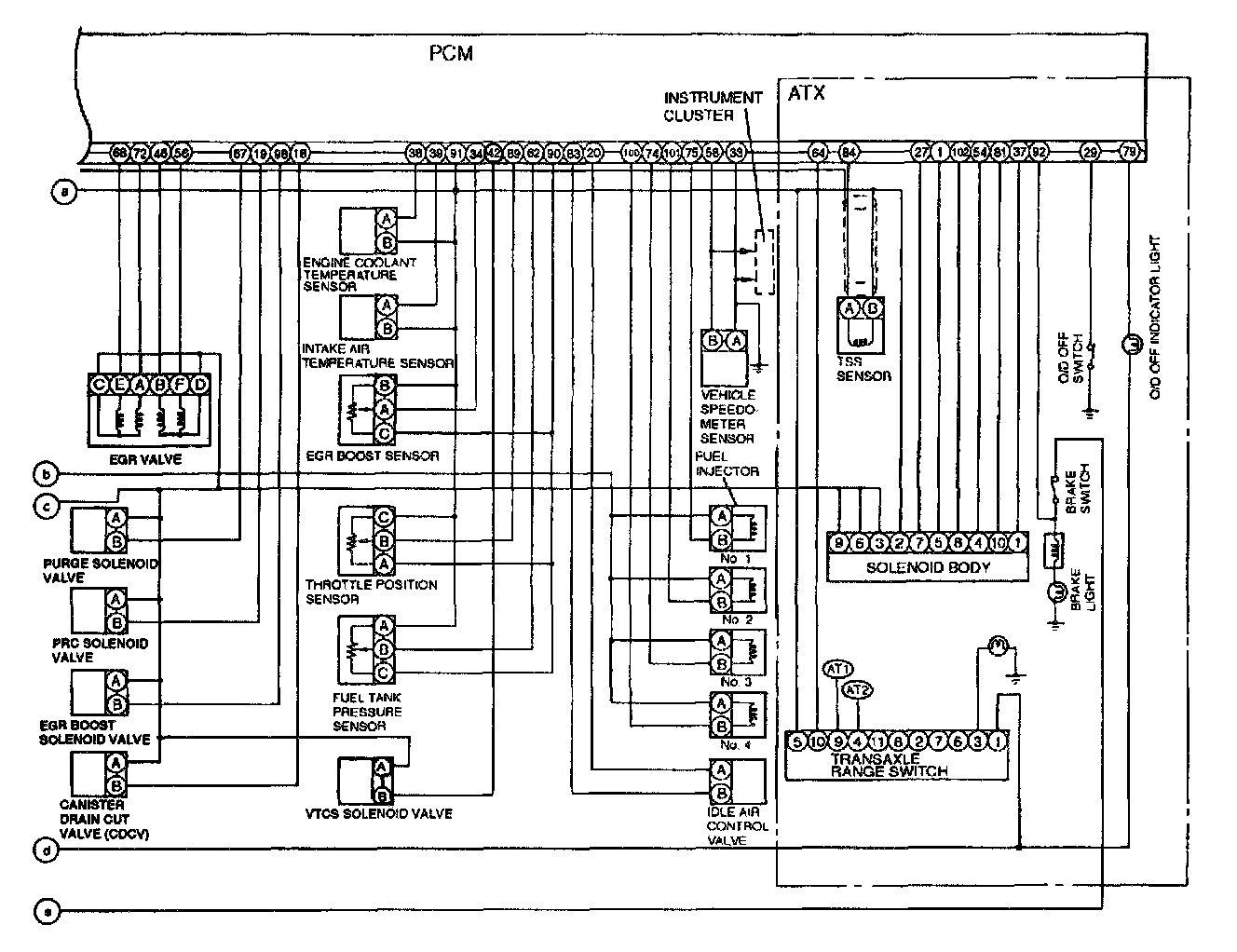

With Immobilizer (Part 2):

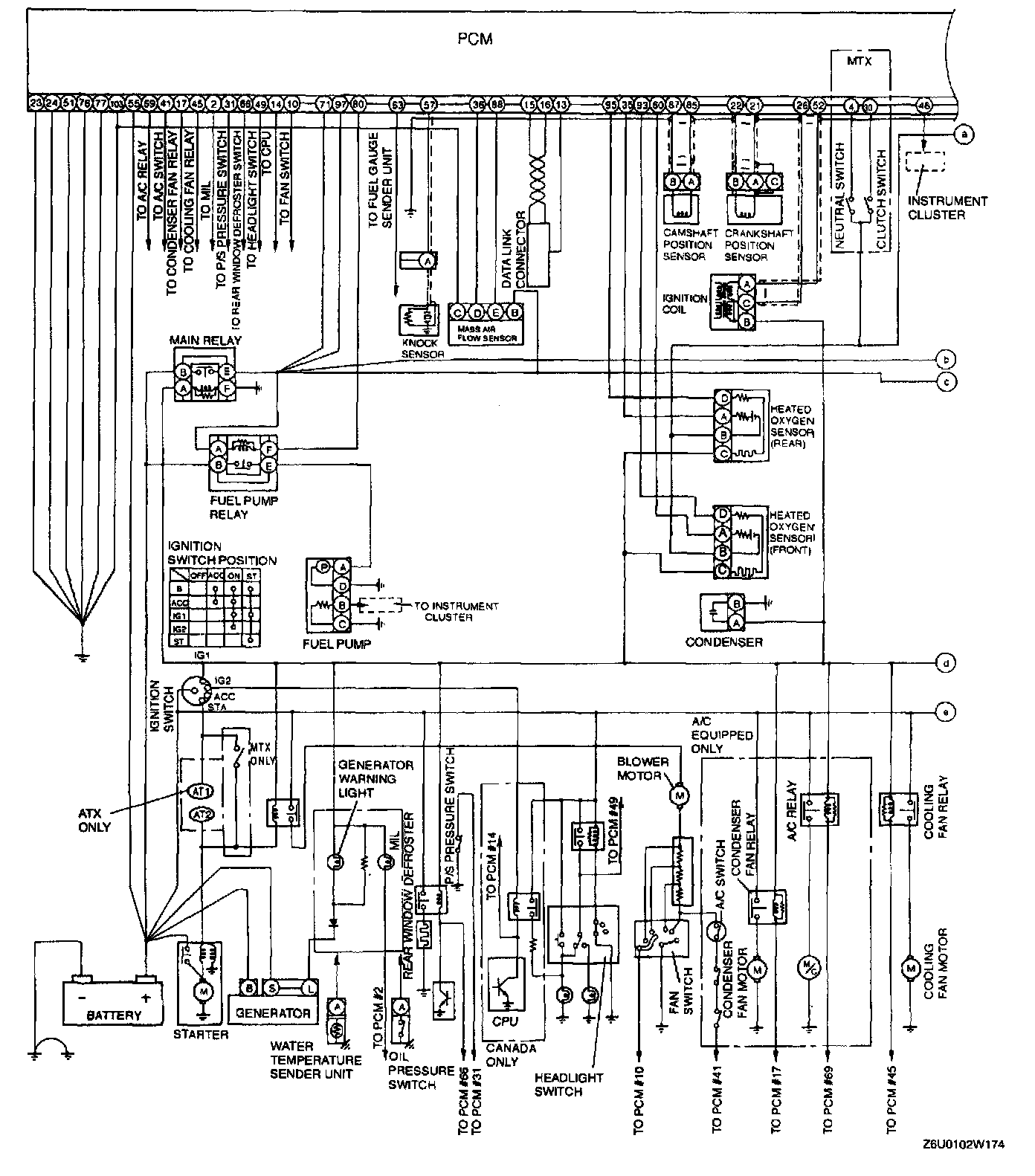

Without Immobilizer (Part 1):

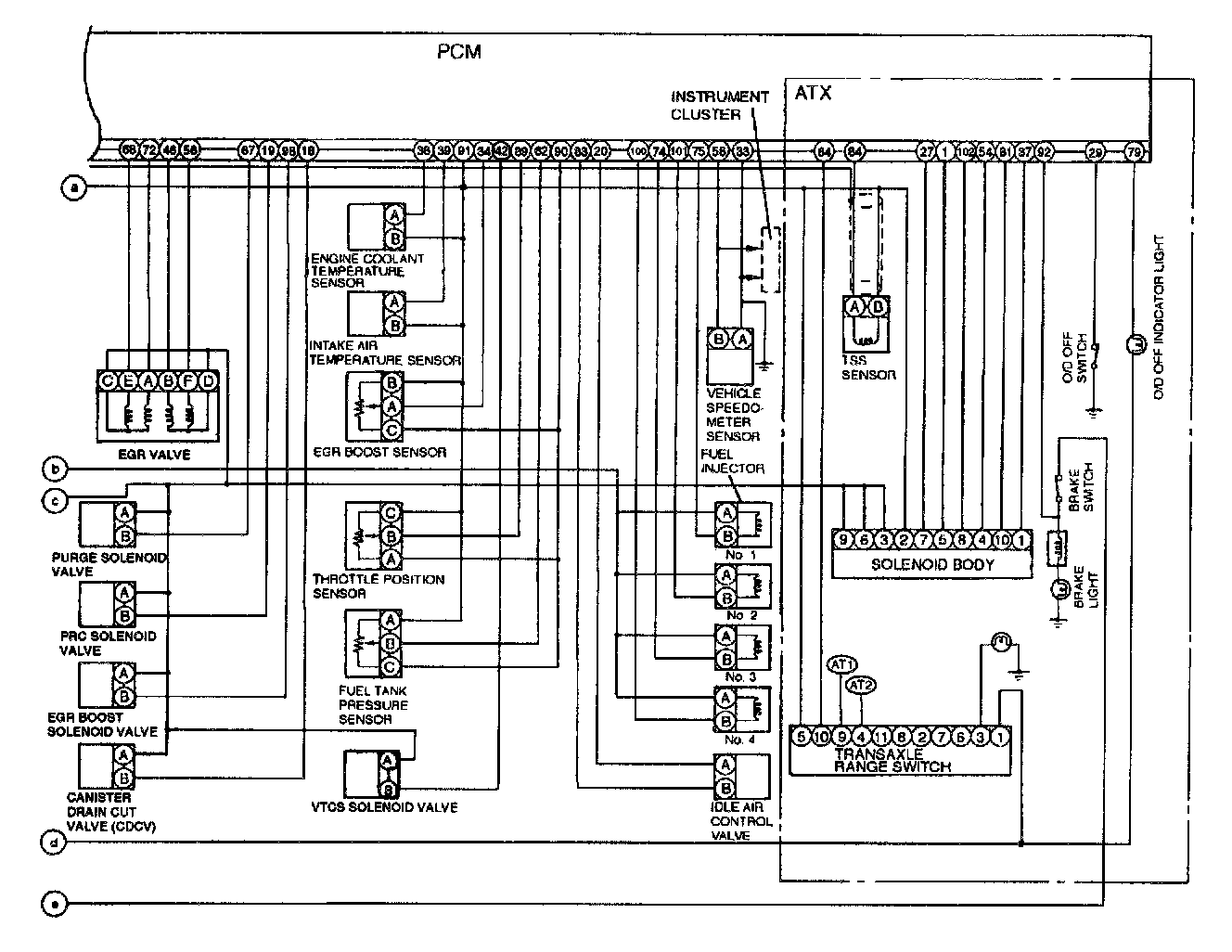

Without Immobilizer (Part 2):
