I-4 - Central Processing Unit (CPU)

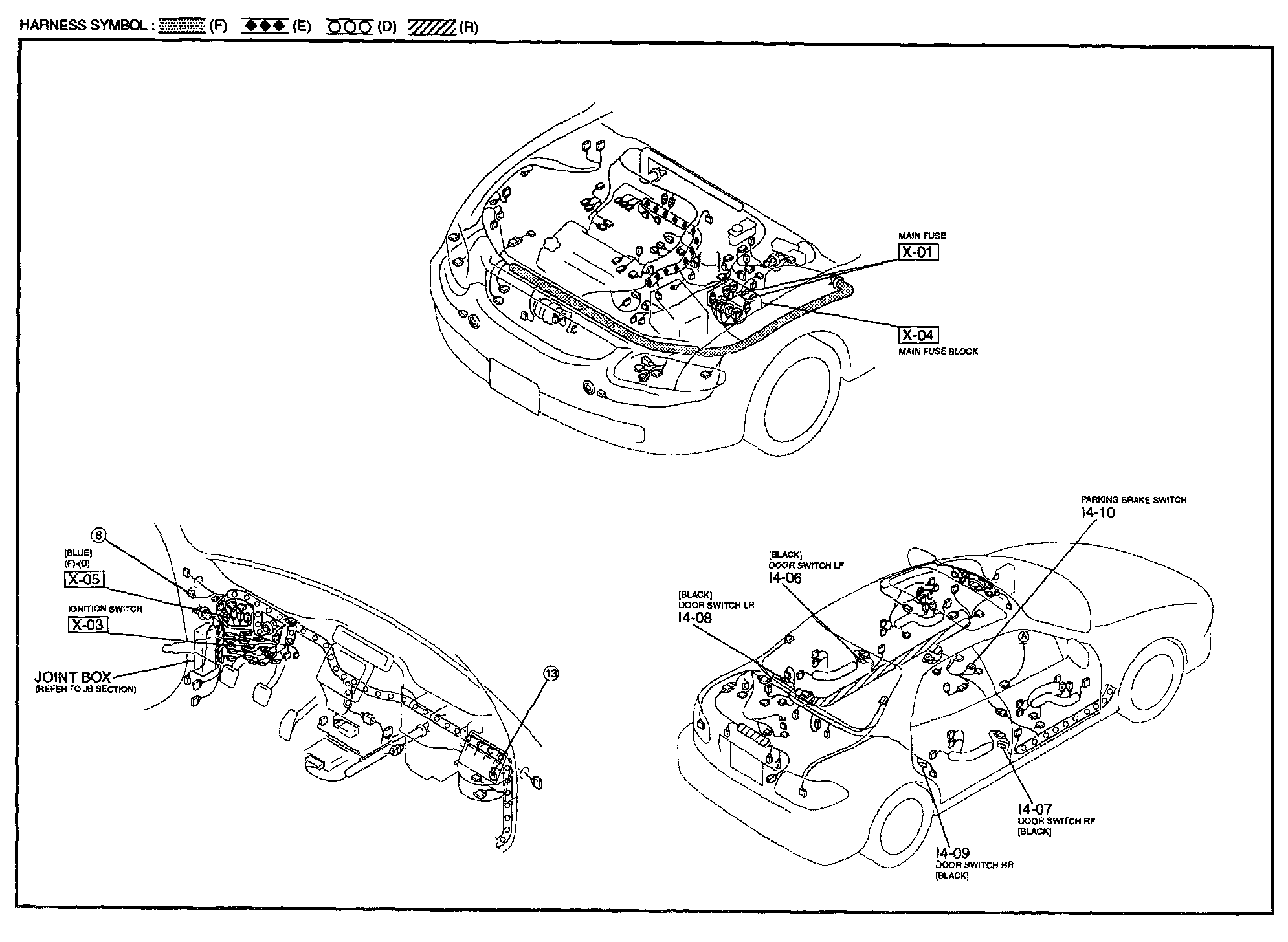

I-4a - Central Processing Unit (CPU) Harness / Connector Symbols:

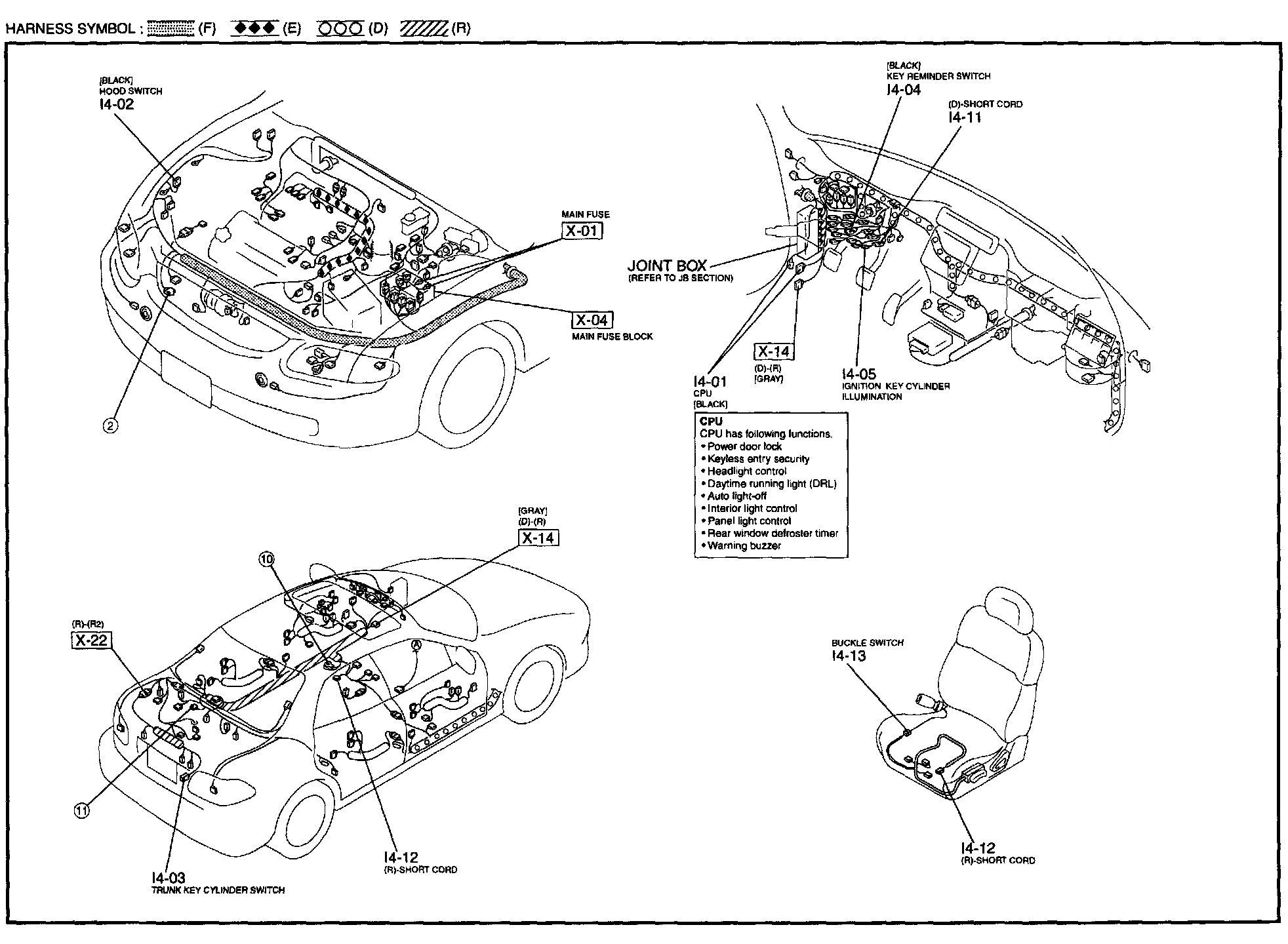

I-4b - Central Processing Unit (CPU) Harness / Connector Symbols:
