Radiator Support: Service and Repair

SHROUD PANEL ASSEMBLY

Removal

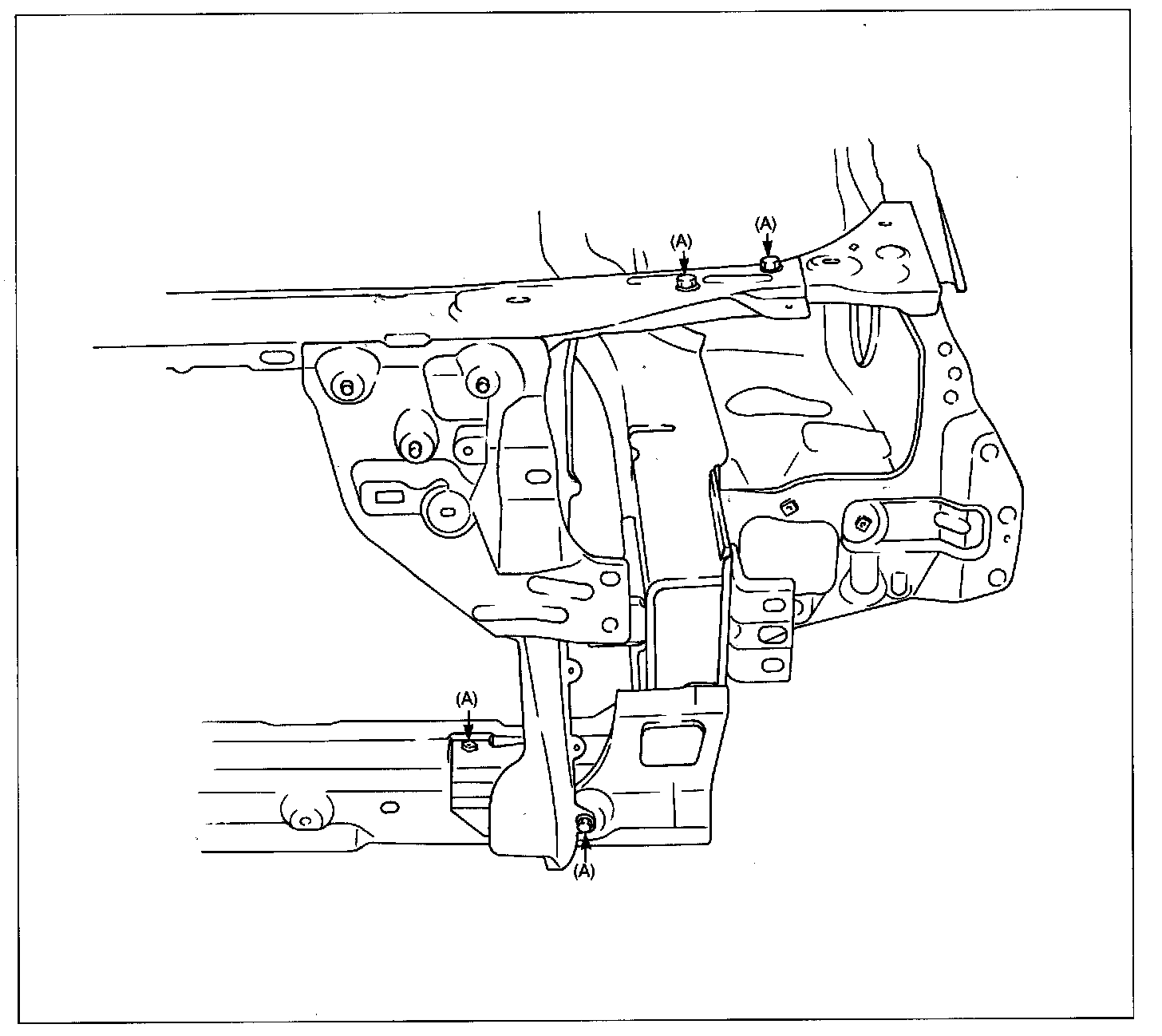

- Left side shown; right side is symmetrical.
- Loosen/tighten the bolts at points (A) to remove/install the panels.

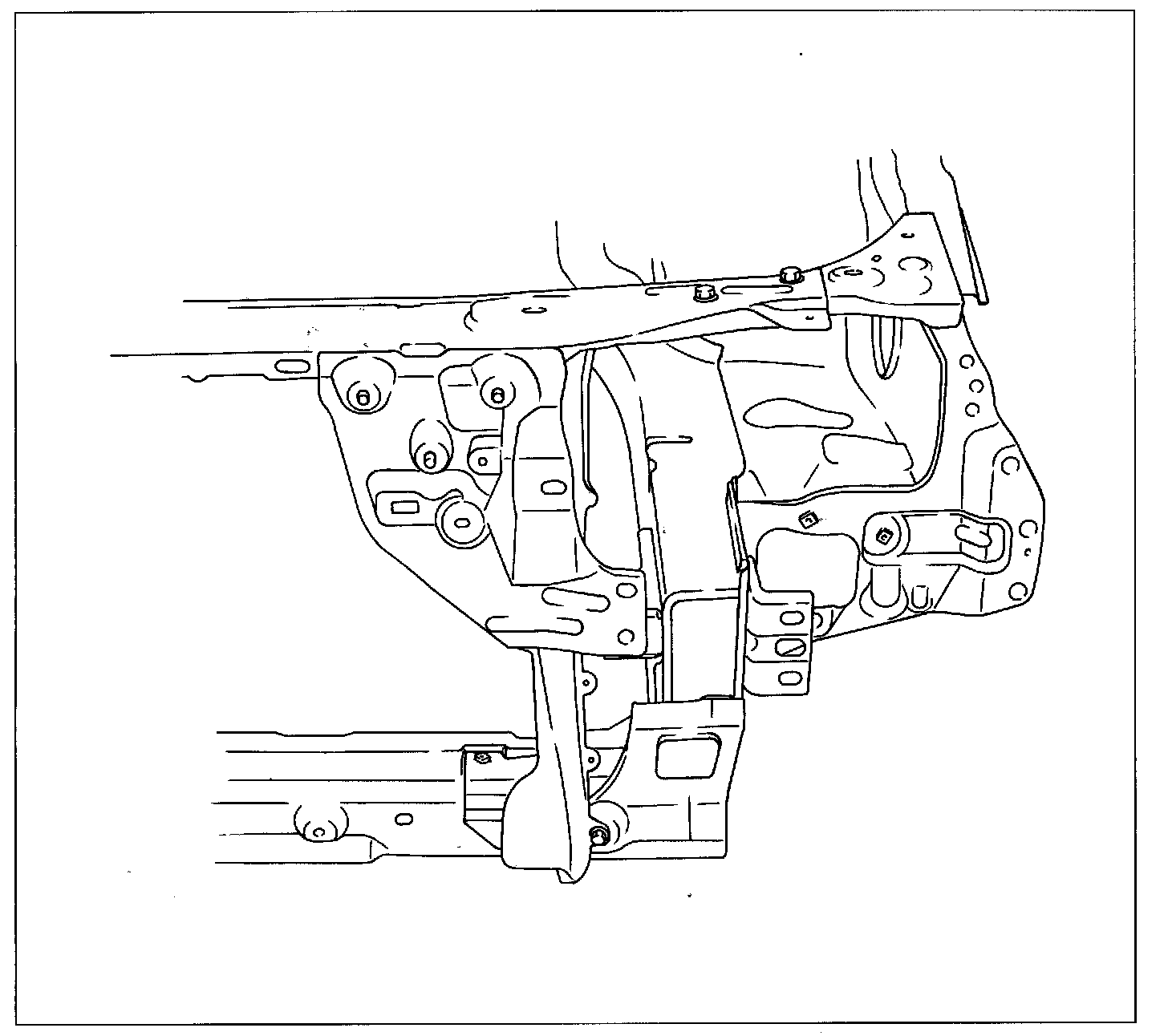

Installation




- When installing new parts, position them so that the section measurements match the body dimension drawings and standard body dimensions.
