Engine Control Module

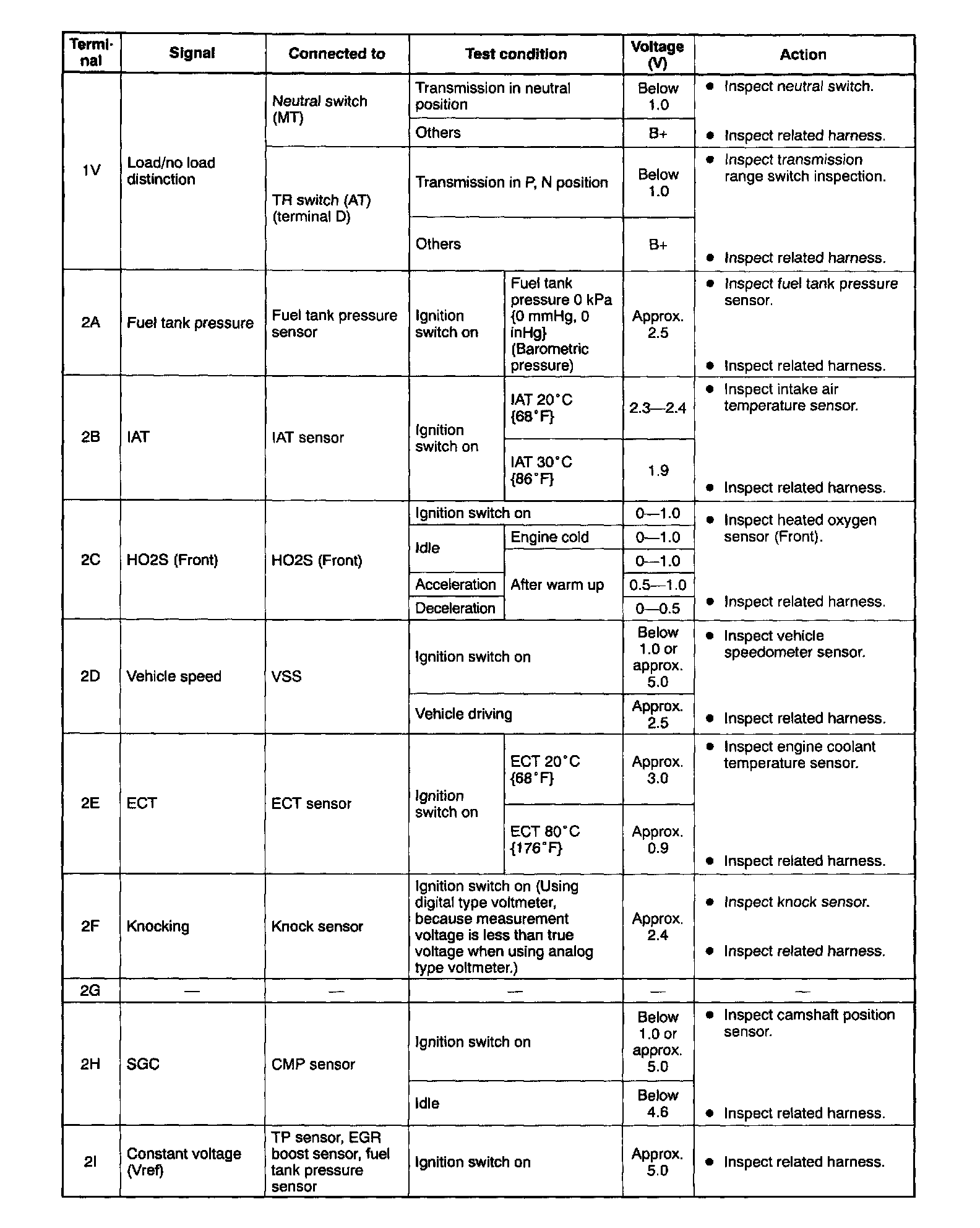

Part 1 Of 6:

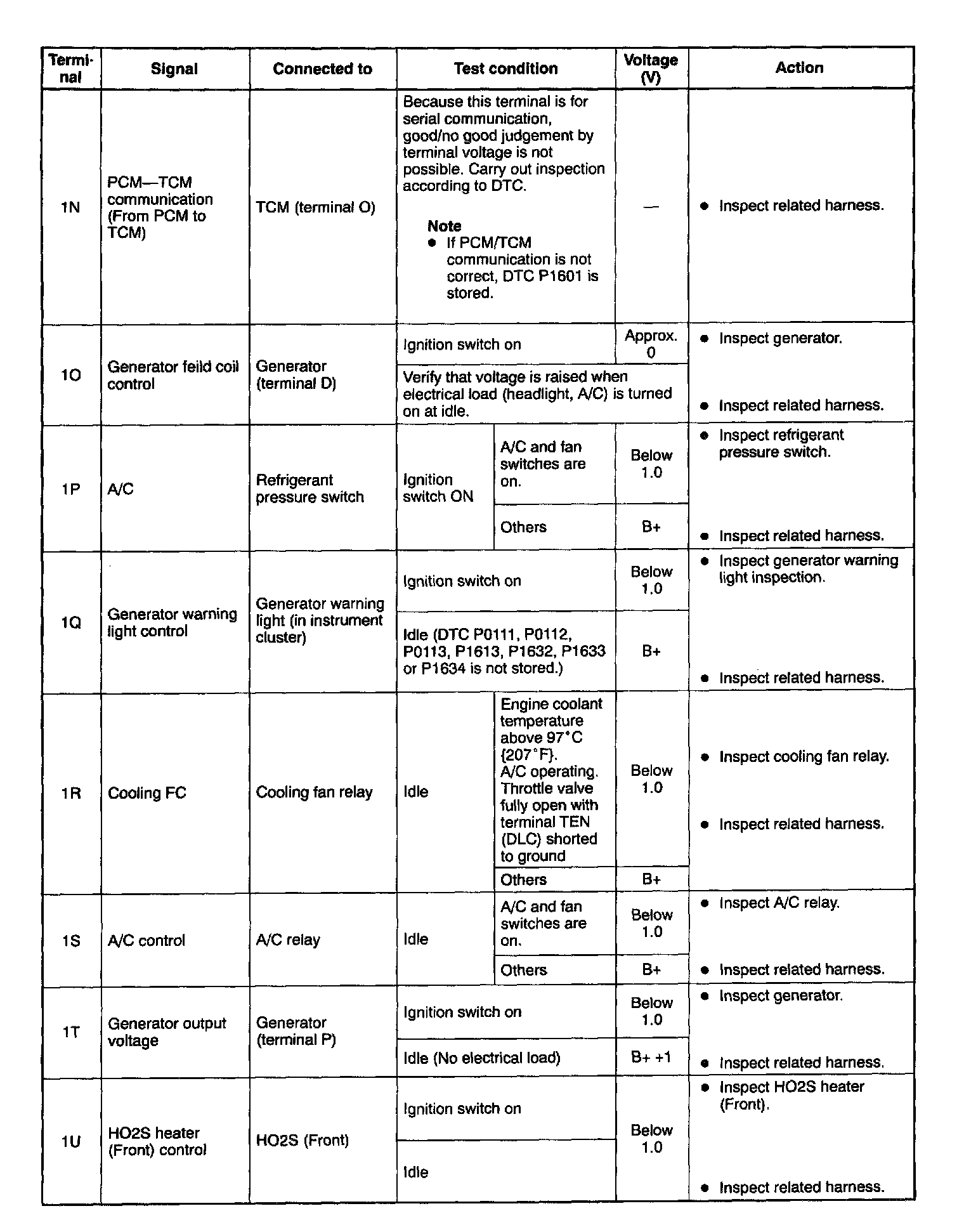

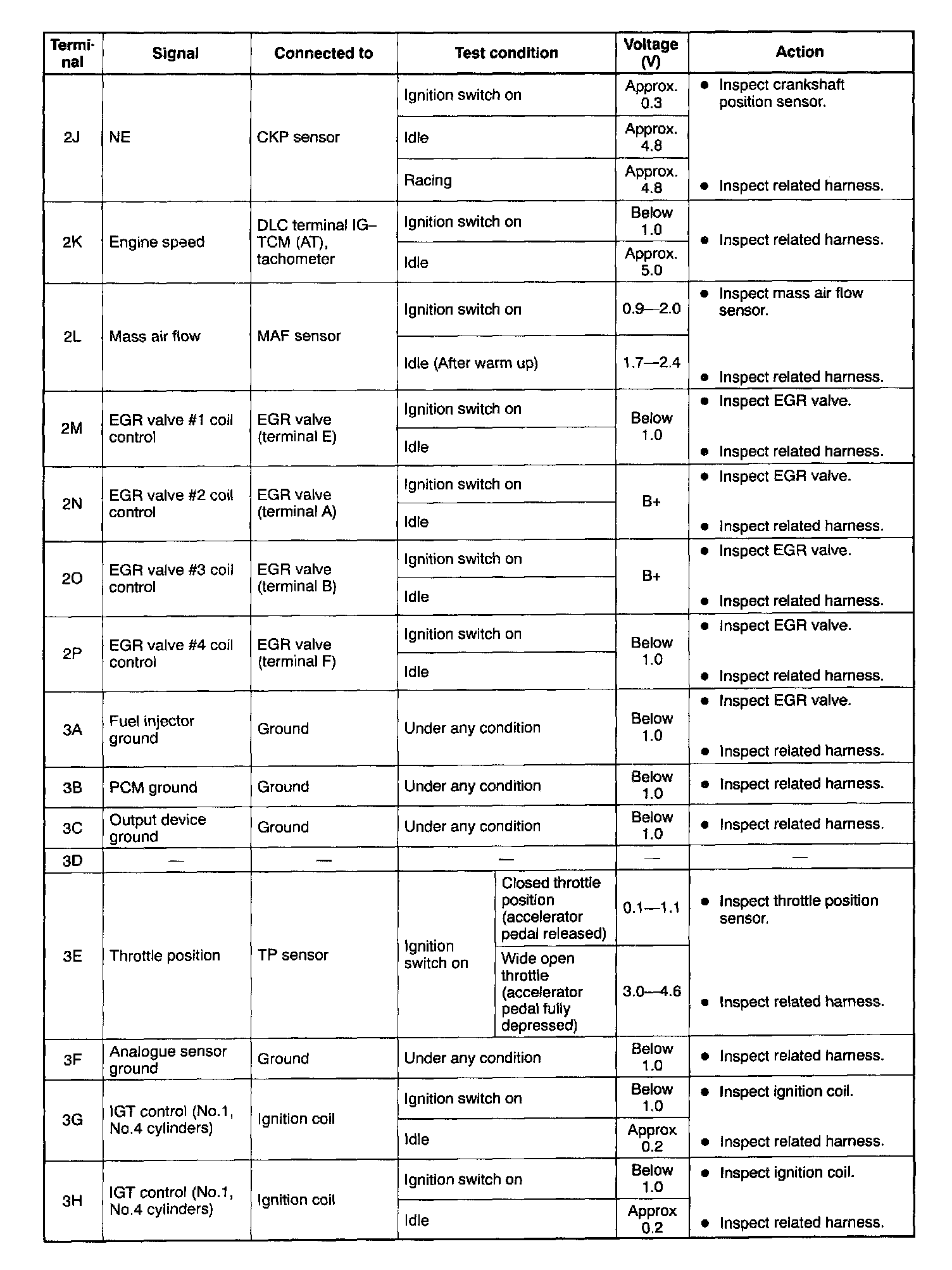

Part 2 Of 6:

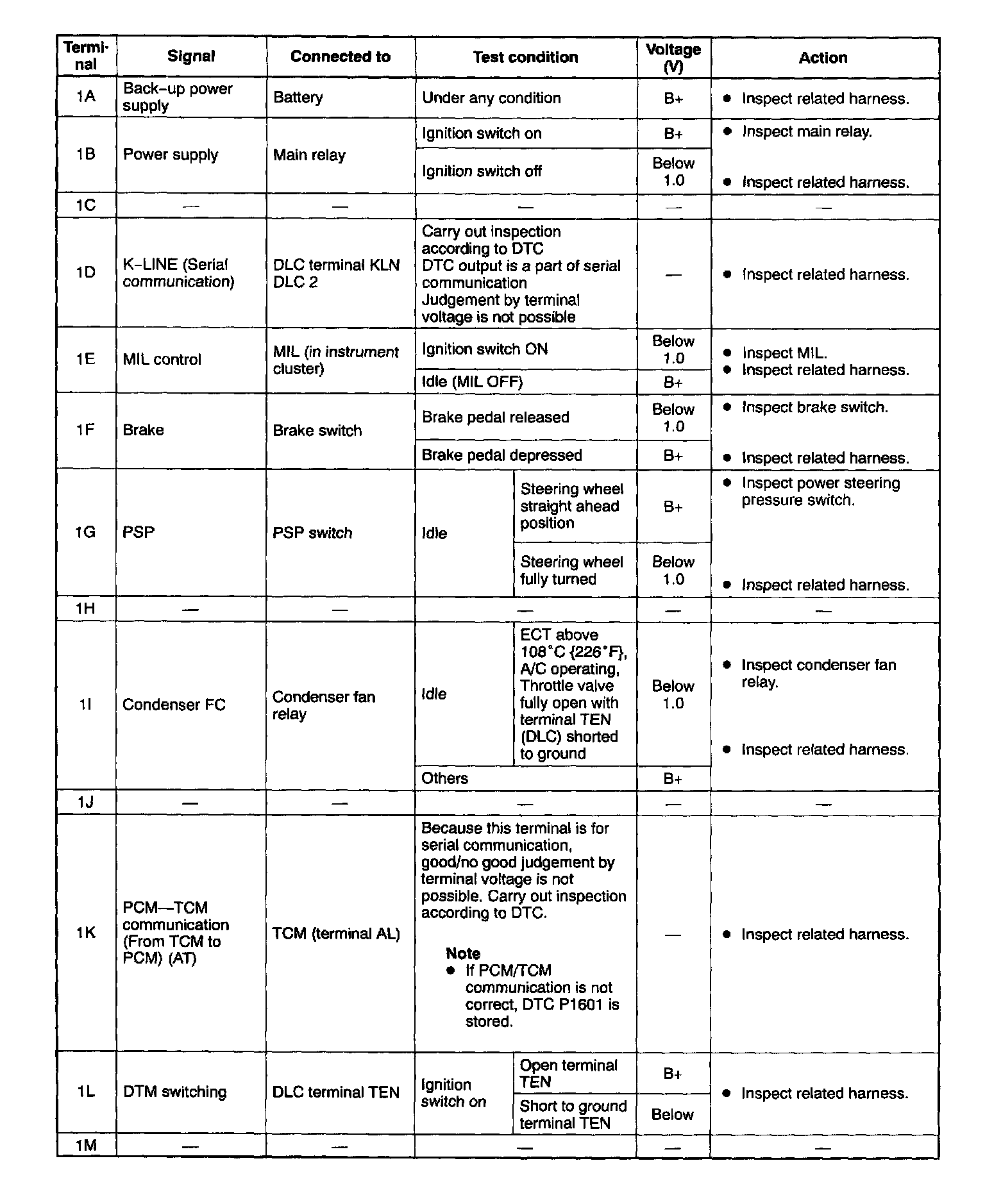

Part 3 Of 6:

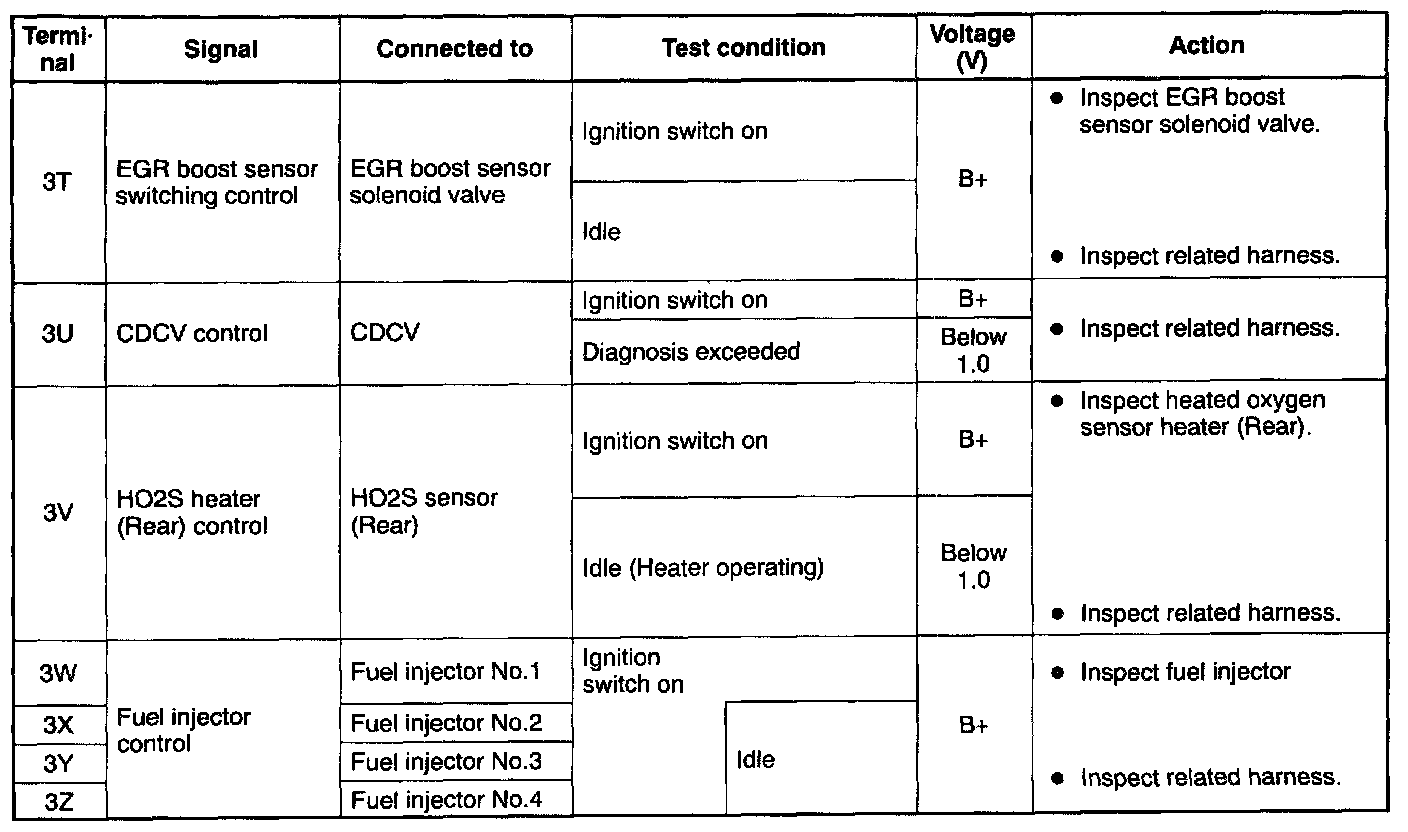

Part 4 Of 6:

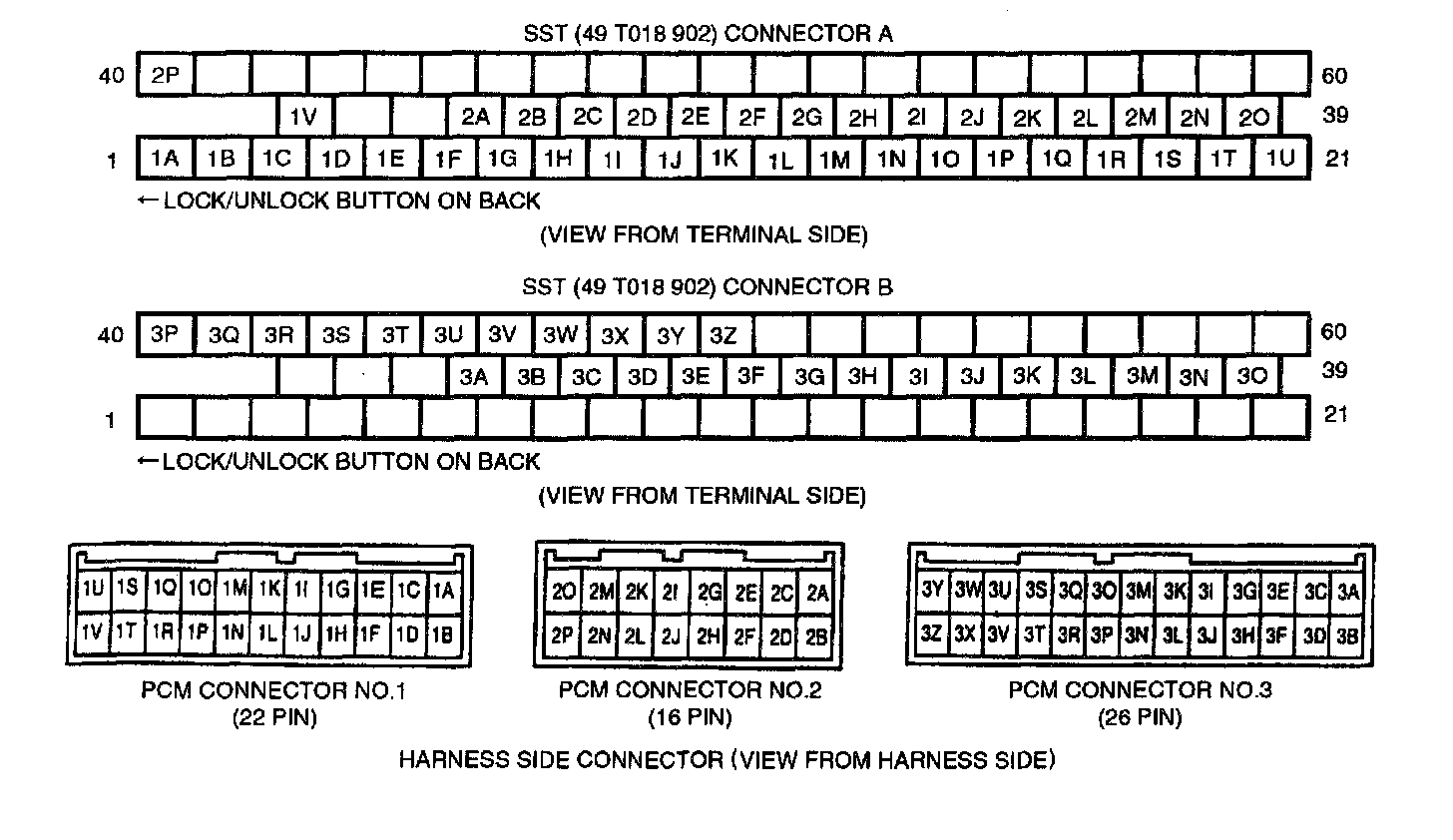

Part 5 Of 6:

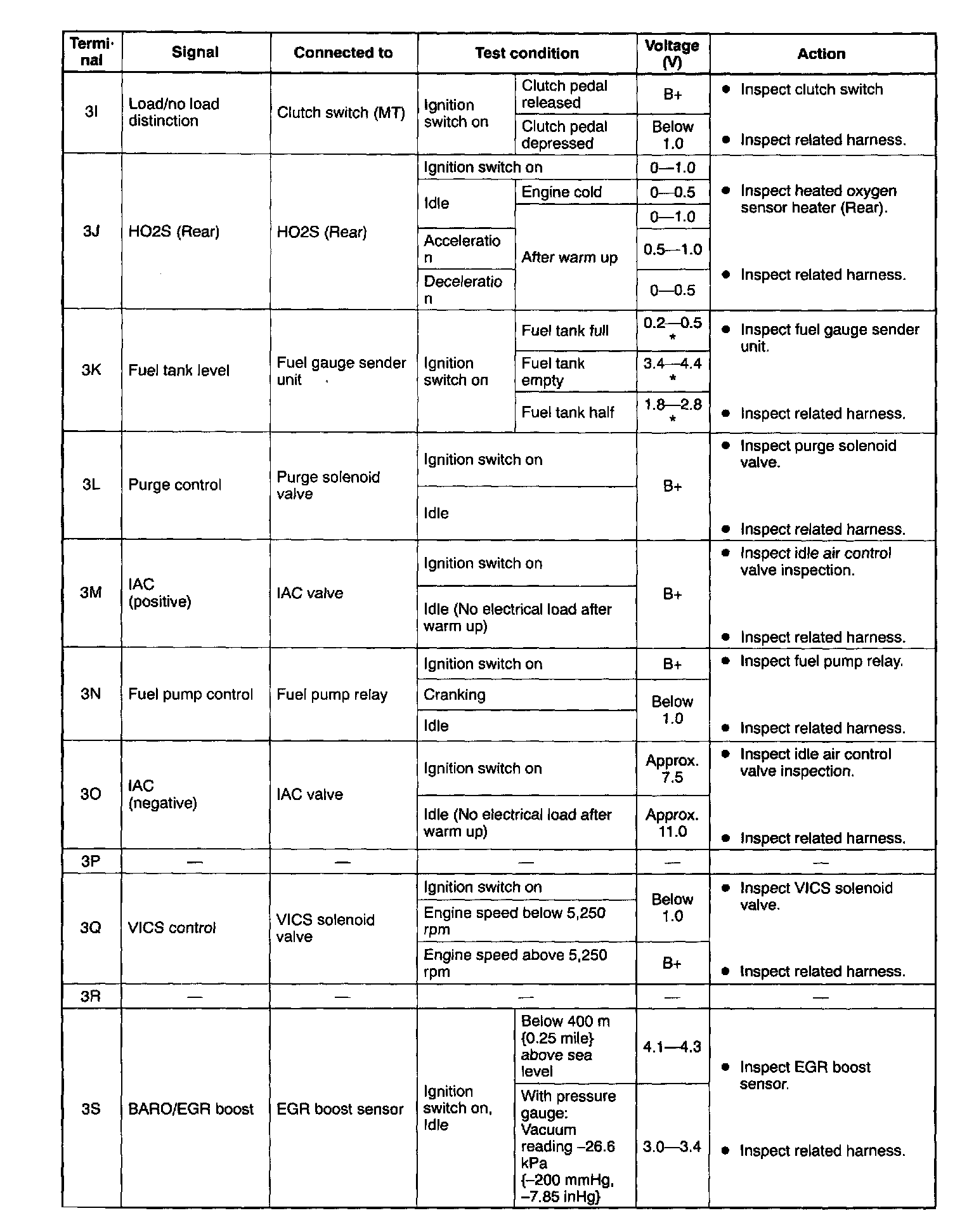

Part 6 Of 6:






*: The voltages above will be measured when the battery voltage is 12 - 14 V
