Air Intake Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

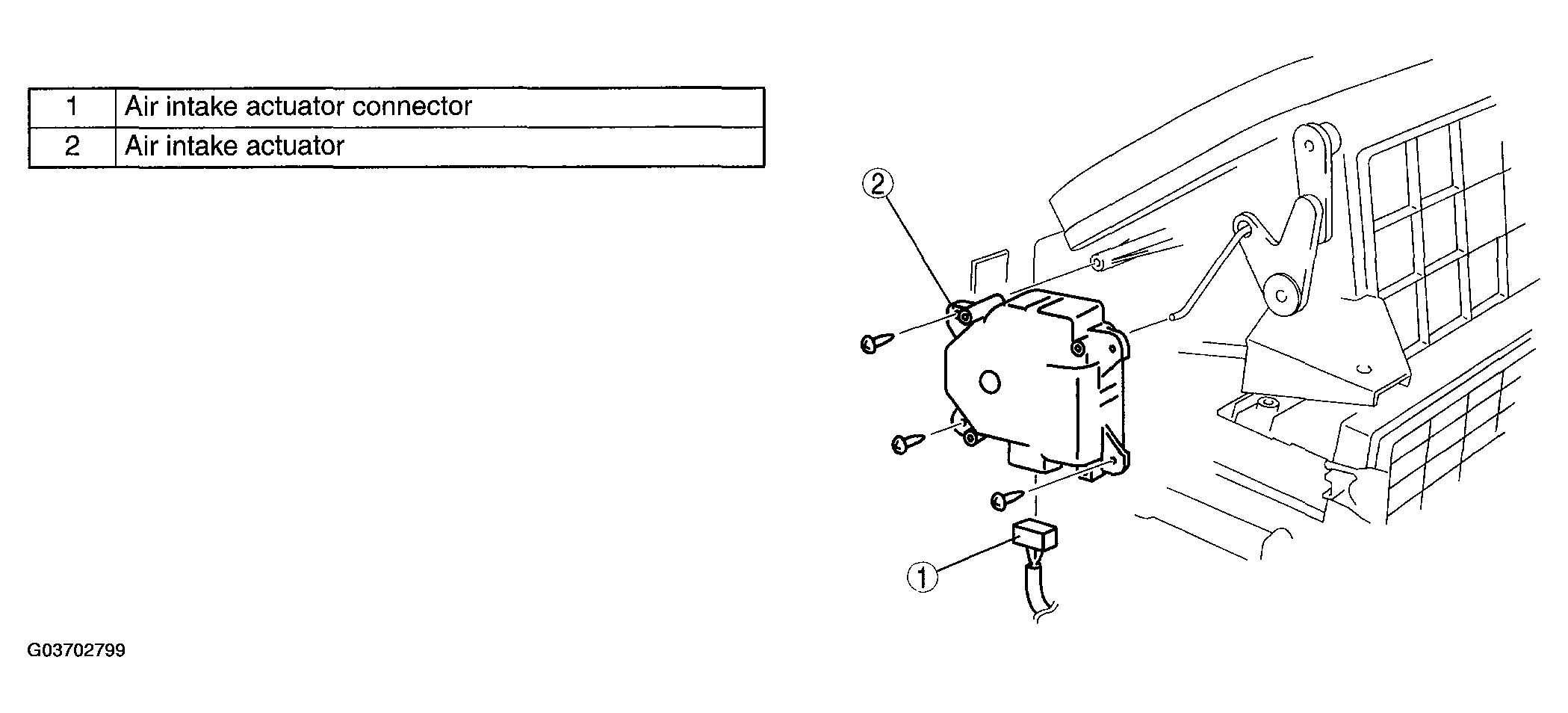

    Fig 1: Removing Air Intake Actuator
    G03702799Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
