Section 393 (Manual Transaxle Clutch)
>>
Clutch Unit Removal/Installation
>>
Clutch Cover Installation Note
>>
G35M-R manual transaxle models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
G35M-R manual transaxle models
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Install the
SSTs.
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

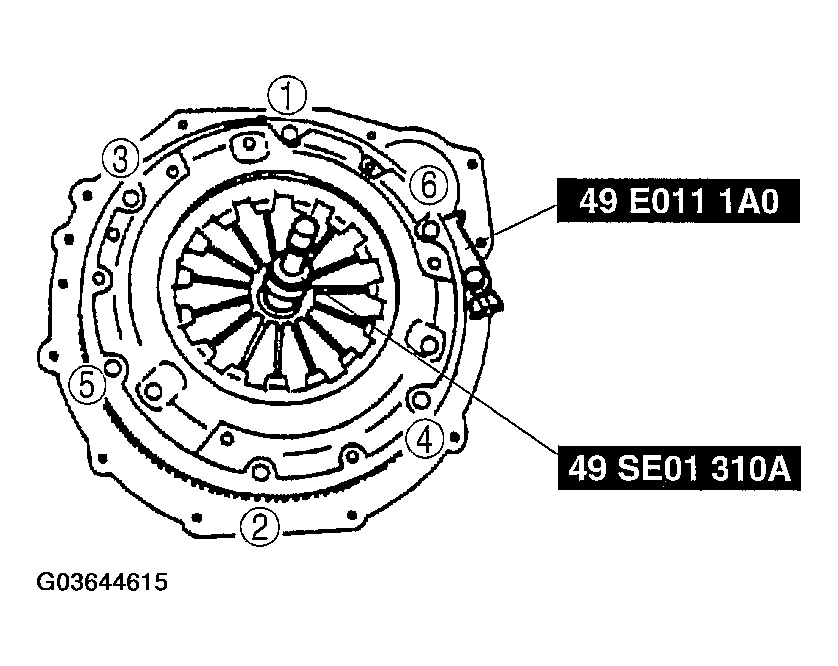

Fig 1: Clutch Cover Bolt Tightening Sequence (G35M-R)
Courtesy of MAZDA MOTORS CORP.
