Airflow Mode Actuator Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the glove compartment.
- Remove in the order indicated in the table.

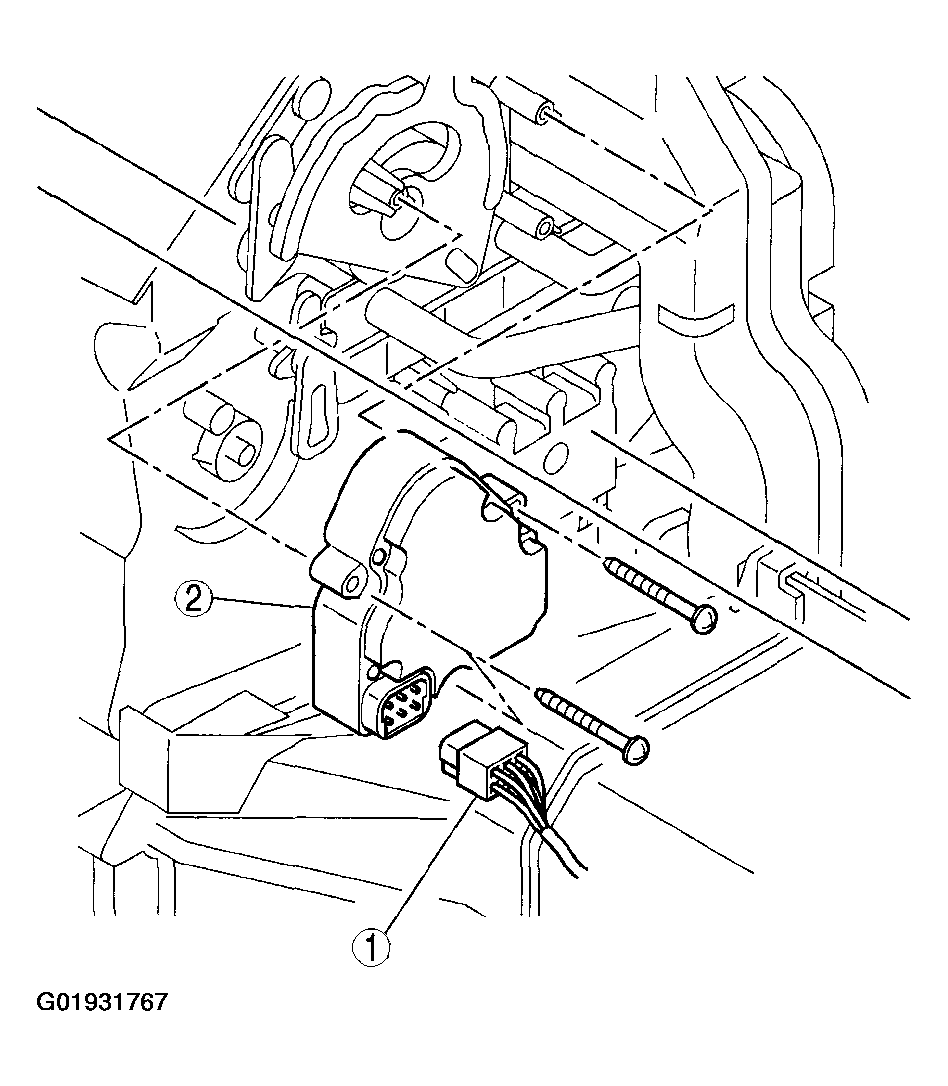

AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION
|
|
| 1 |
Airflow Mode Actuator Connector |
| 2 |
Air flow Mode Actuator |
- Install in the reverse order of removal.
