Fan Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct.
  3. Remove in the order indicated in the table.

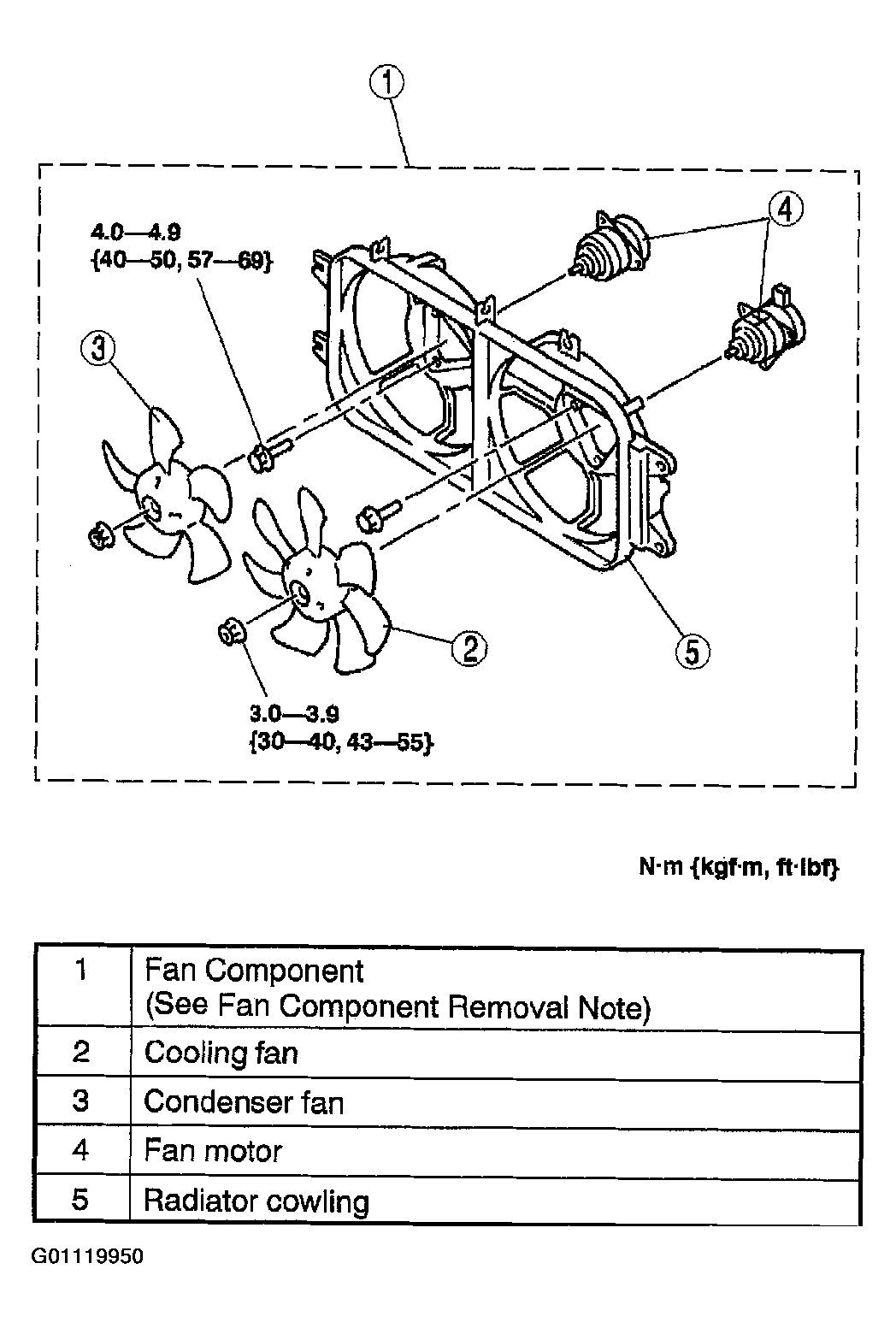

    Fig 1: Identifying Fan Motor Removal/Installation
    G01119950Courtesy of MAZDA MOTORS CORP.
