Manual Transaxle Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Set the transaxle on a jack and lift into place.
Install the transaxle mounting bolts.

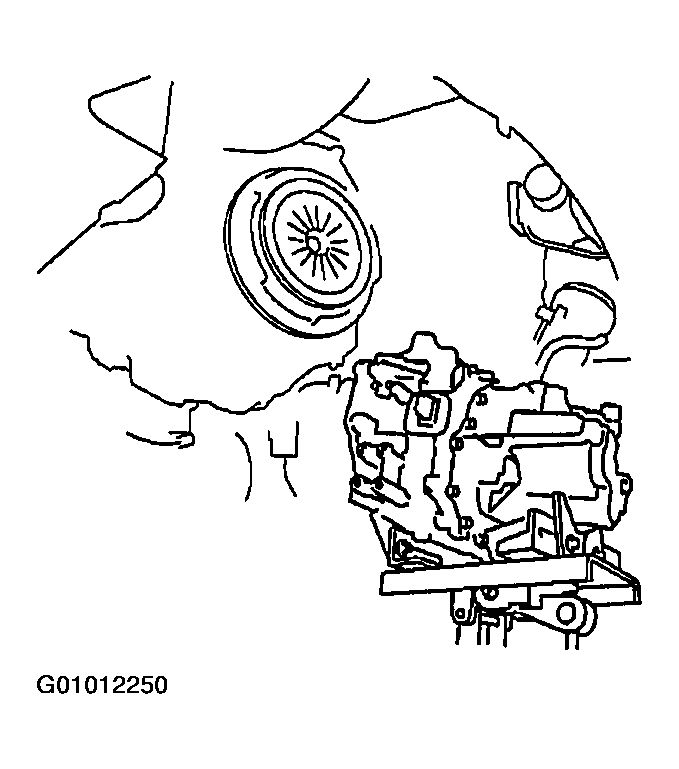

Fig 1: Setting Transaxle On A Jack And Lifting It Into Place
Courtesy of MAZDA MOTORS CORP.
Install the stud of the No. 4 engine mount.
Tightening torque

27.4-40.2 N.m

(2.8-4.0 kgf.m, 20.2-29.6 ft. lb)
Tighten the SST (49 E017 5A0) so that the engine is located at the specified position.

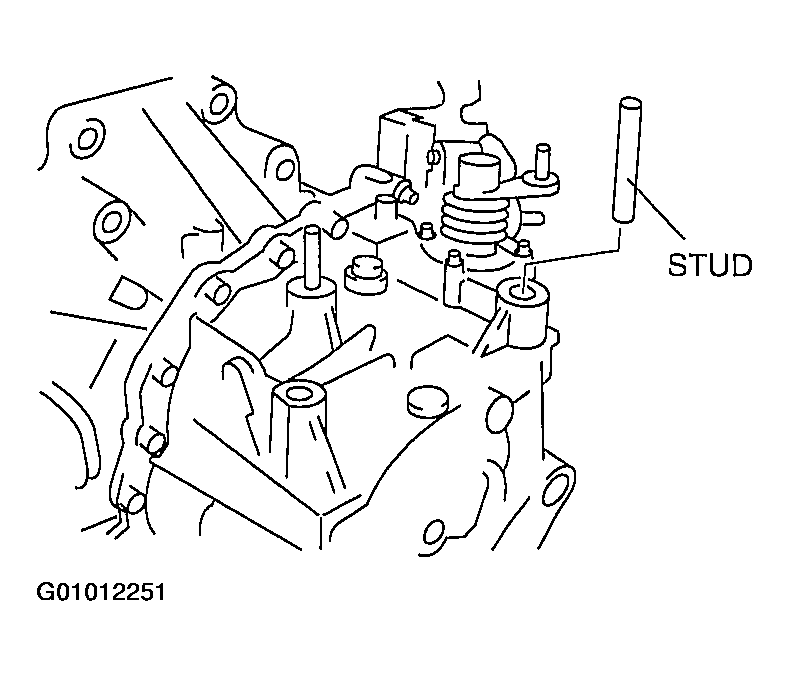

Fig 2: Installing Stud Of No. 4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
