Section 198 (Manual Transaxle Clutch)
>>
Clutch Unit Removal/Installation
>>
Clutch Disc Installation Note
>>
A65M-R Manual Transaxle Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A65M-R Manual Transaxle Models
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Hold the clutch disc position using the clutch aligner.

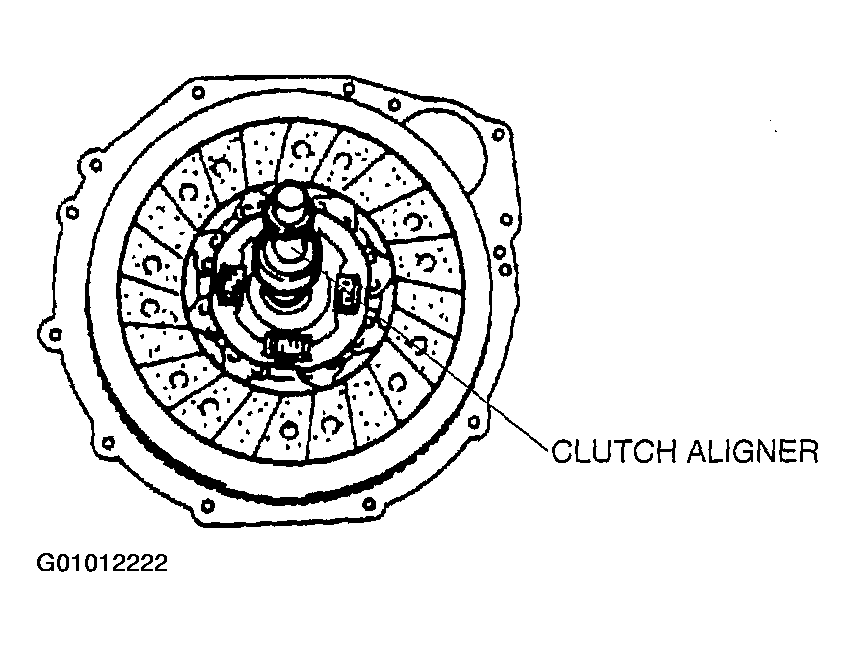

Fig 1: Installing Clutch Disc - A65M-R Manual Transaxle
Courtesy of MAZDA MOTORS CORP.
