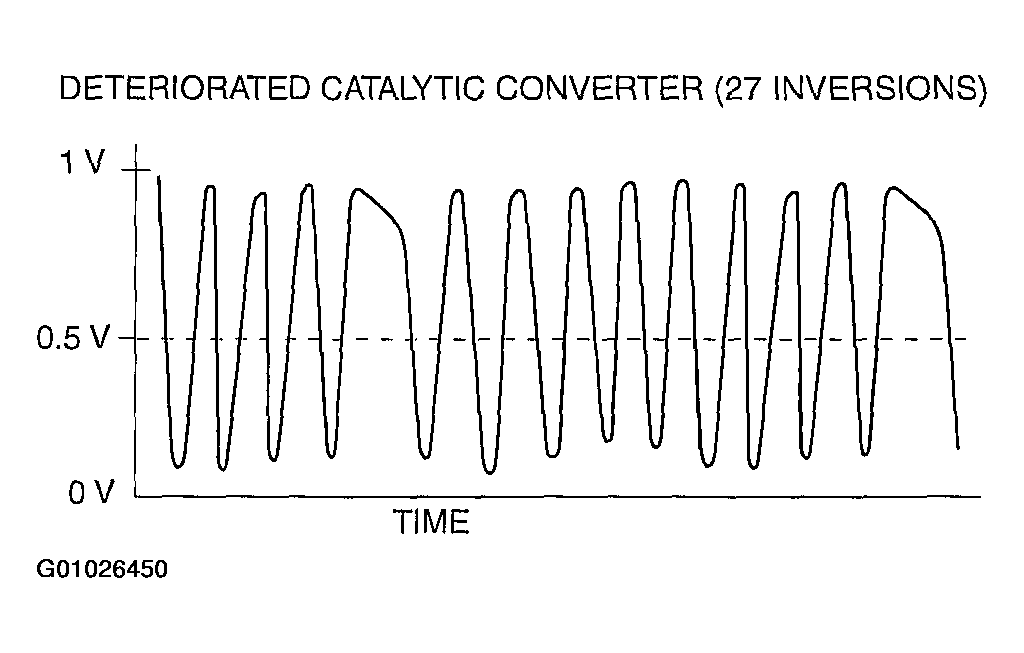

Downstream HO2S Graph Line Example 3
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Equation
RATIO = 30 inversions (upstream HO2S inversions) / 27 inversions (downstream HO2S inversions) = 1.1 (bad converter)
Courtesy of MAZDA MOTORS CORP.
