Removal And Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH wheel and tire.

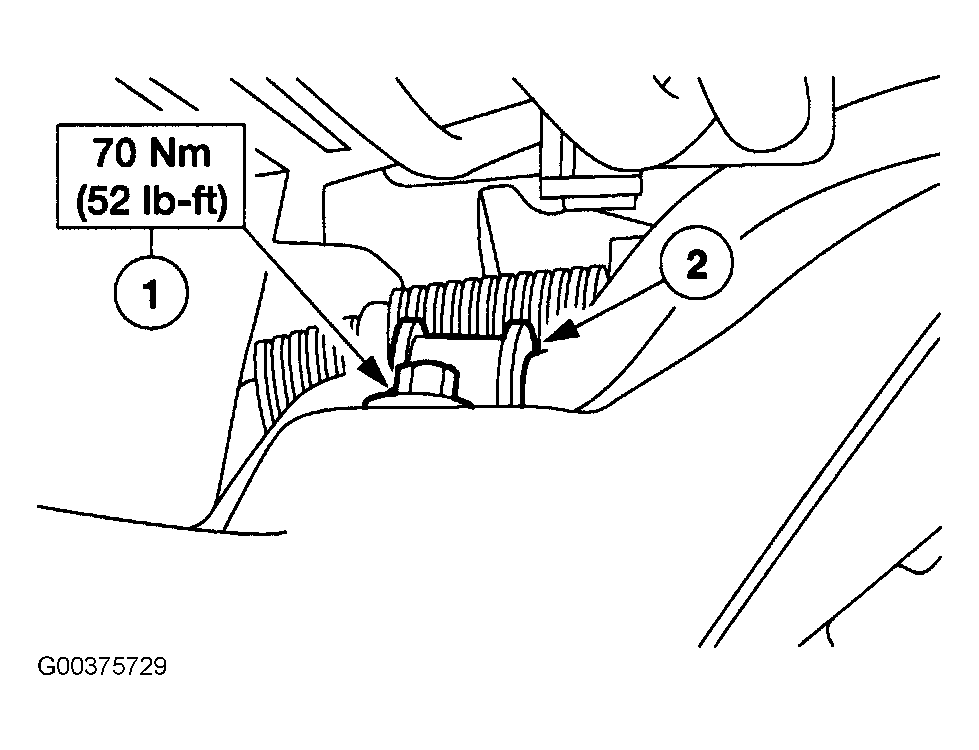

Fig 1: Removing Stabilizer Bushings
Courtesy of MAZDA MOTORS CORP.
Remove the two stabilizer bushings.
1. Remove the four bolts.
2. Remove the two stabilizer bushings.

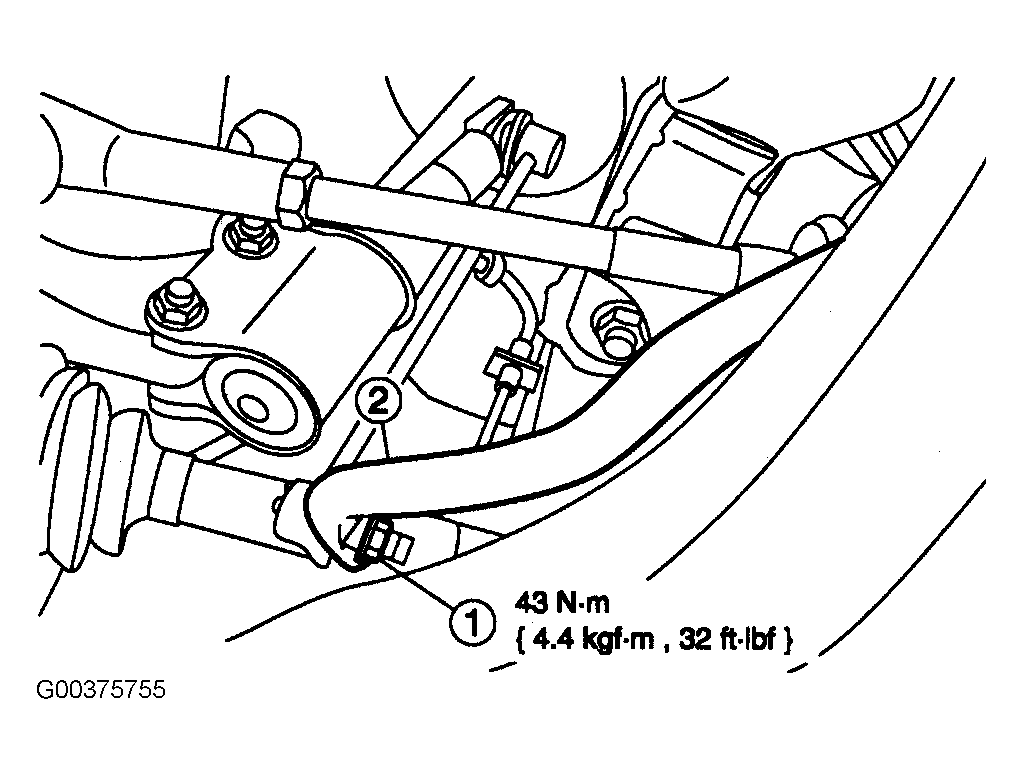

Fig 2: Removing Stabilizer Bar
Courtesy of MAZDA MOTORS CORP.
Remove the stabilizer bar.
1. Remove the two stabilizer bar links lower nut.
2. Remove the stabilizer bar.
To install, reverse the removal procedure.
