Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery positive voltage to magnetic clutch terminal B and ground to terminal A.

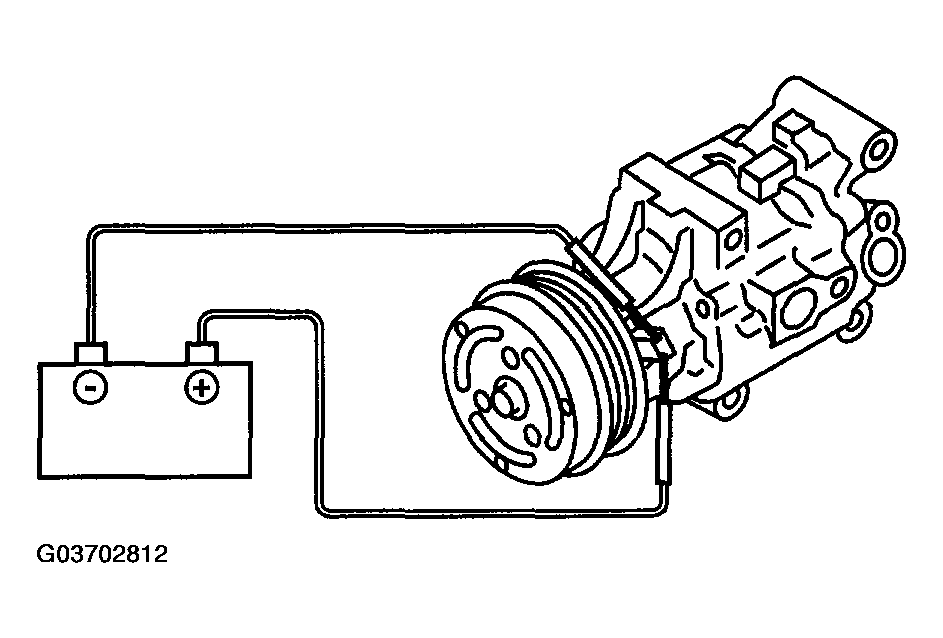

    Fig 1: Testing Magnetic Clutch
    G03702812Courtesy of MAZDA MOTORS CORP.

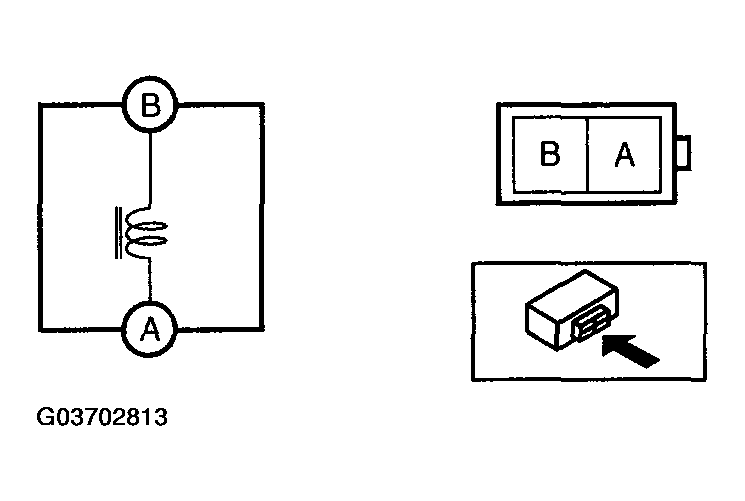

    Fig 2: Checking Magnetic Clutch Terminals
    G03702813Courtesy of MAZDA MOTORS CORP.
  2. Verify that the magnetic clutch turns on.
    • If the magnetic clutch does not turn on, replace the A/C compressor.
