Clip Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the clip slowly in the direction shown in the figure.
  2. Confirm that the clip tab is caught correctly.

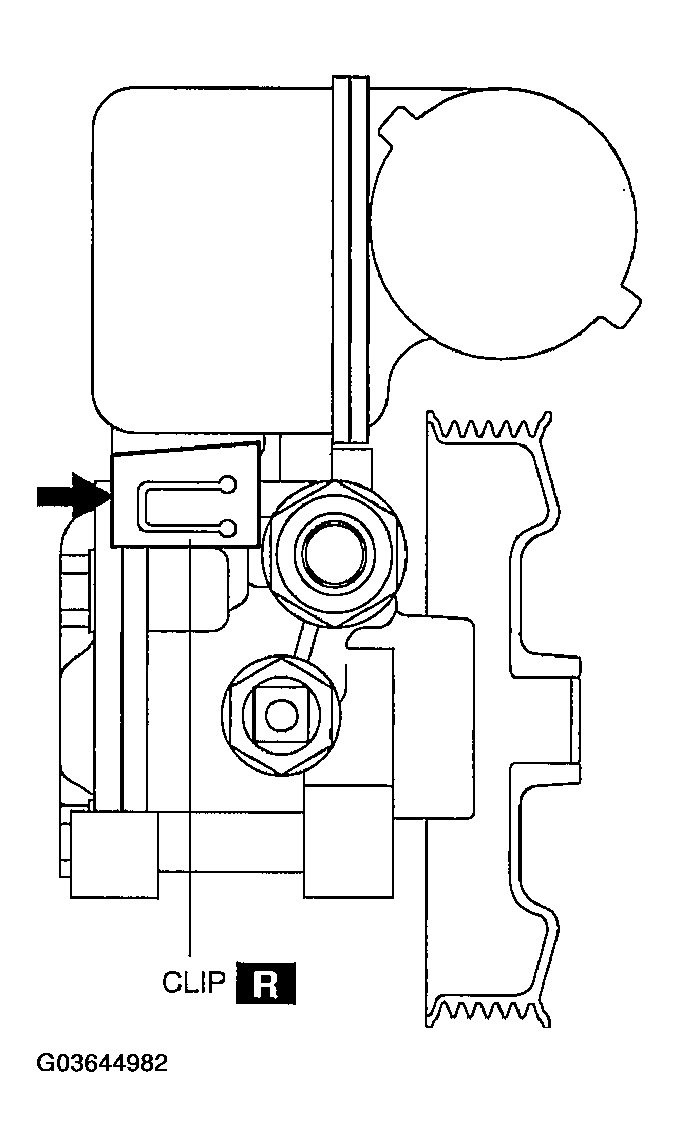

    Fig 1: Assembling Clip
    G03644982Courtesy of MAZDA MOTORS CORP.
