Engine Compartment Area

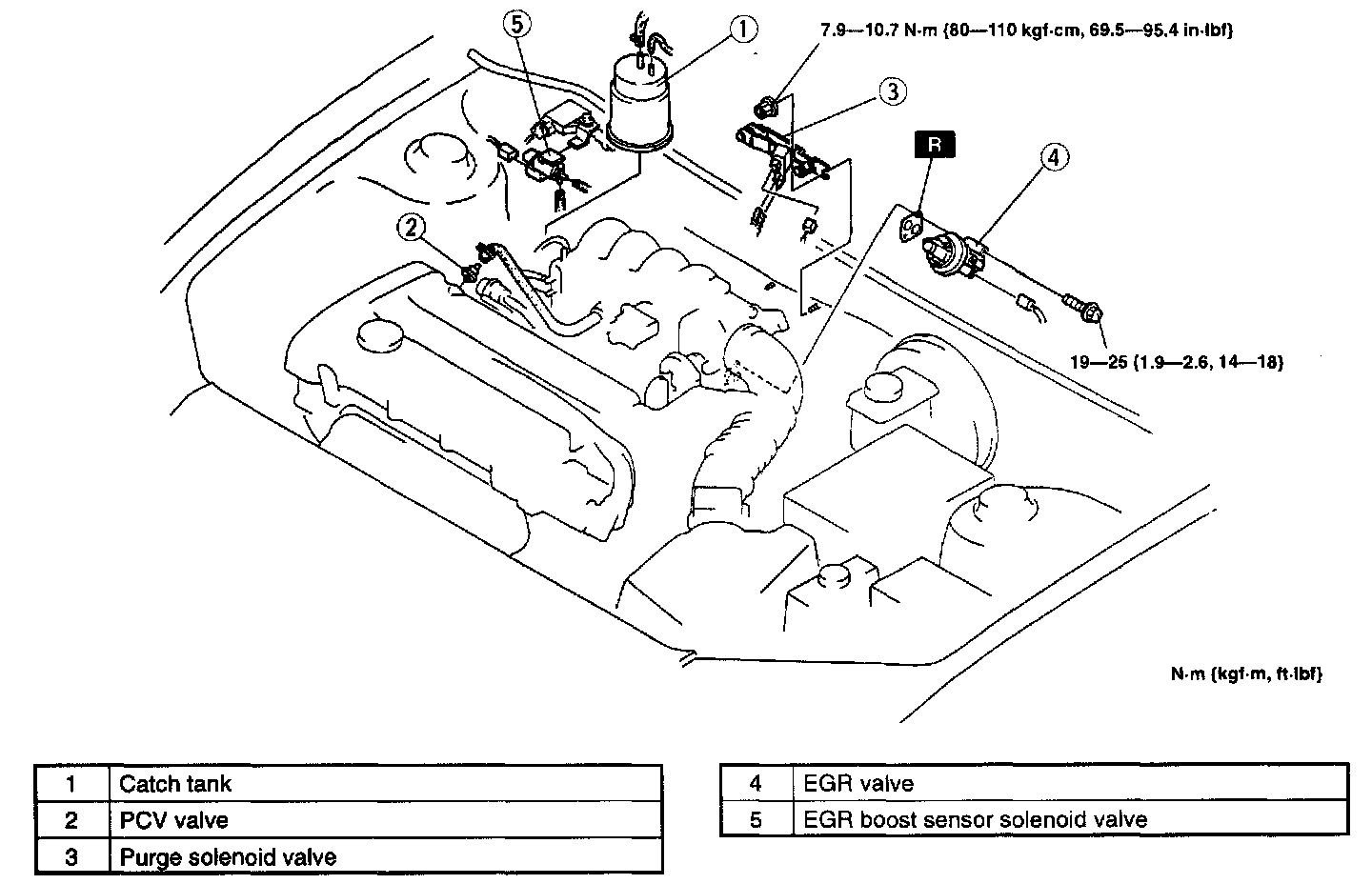

EMISSION SYSTEM COMPONENT REMOVAL AND INSTALLATION (ENGINE COMPARTMENT SIDE)

1. Disconnect the negative battery cable.




2. Remove the components indicated in the table.
3. Install in the reverse order of removal.
