Ignition System: Testing and Inspection
Spark Test1. Remove the rear seat cushion.
2. Disconnect the fuel pump connector.
3. Verify that each high-tension lead and connector is connected properly.

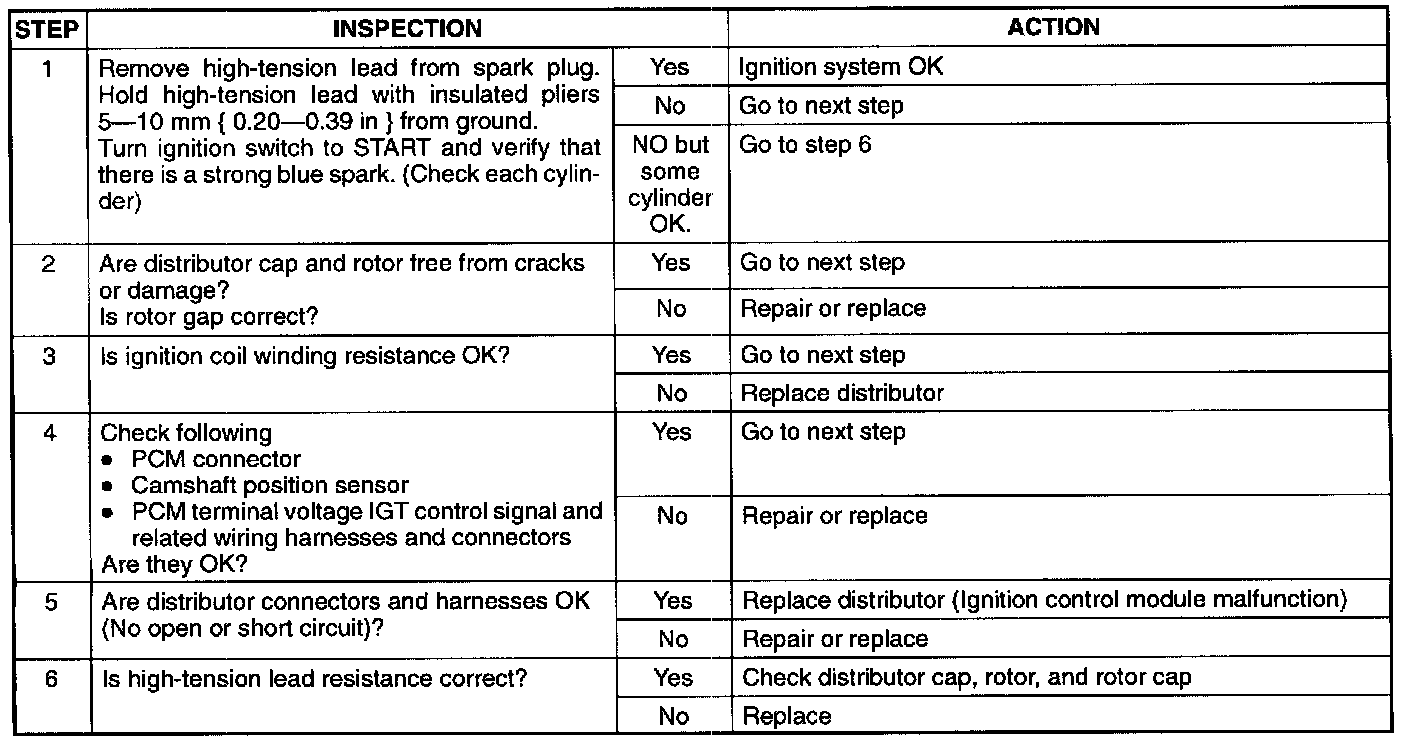

4. Inspect the ignition system in the following procedure.
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
