Distributor: Service and Repair




DISTRIBUTOR REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the air cleaner.

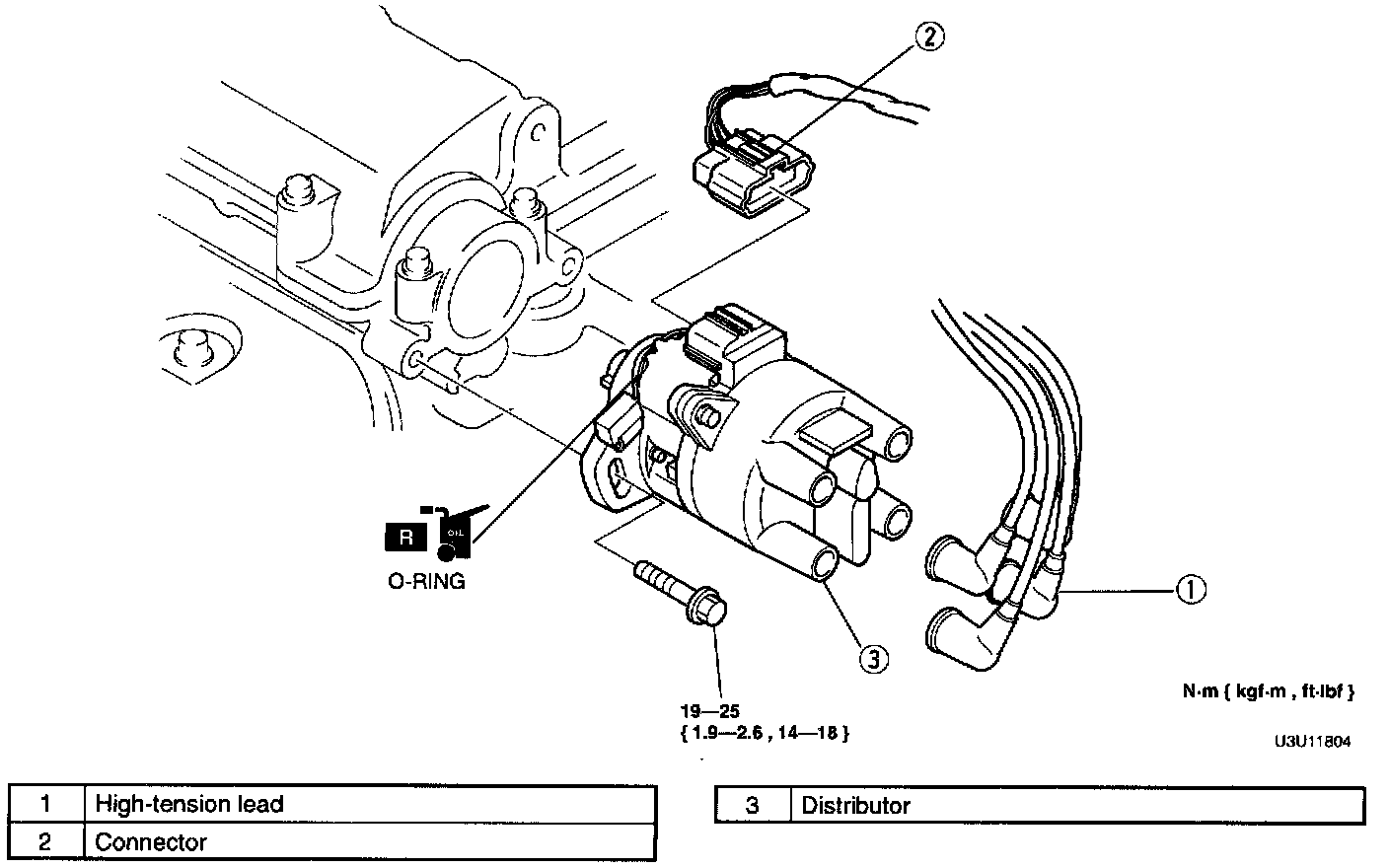

3. Remove in the order indicated in the image.
4. Install in the reverse order of removal indicated in the image.
5. Adjust the ignition timing.
