Using This Section

Diagnostic Index
- The diagnostic index is for quick reference of all trouble symptoms in the symptom troubleshooting.
- Detailed description of each symptom enables correct inspection.

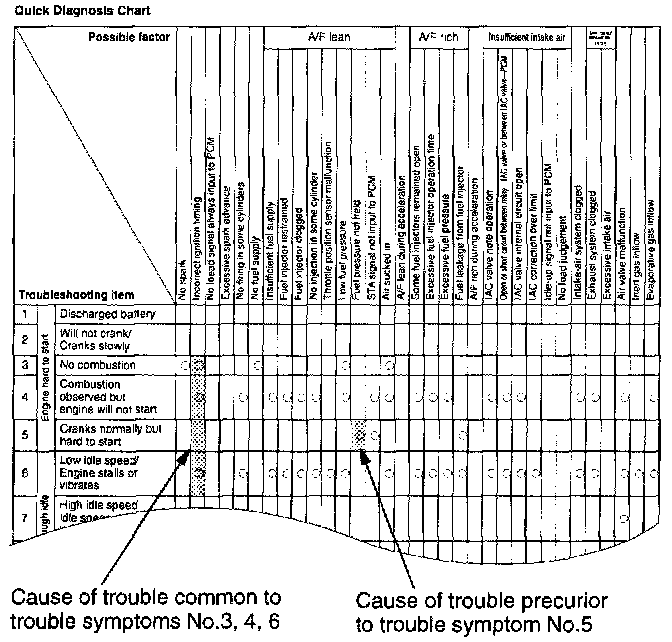

Quick Diagnosis Chart
- Troubleshooting index shows relationship between trouble symptoms and suspected faulty parts.
- This index is for quick location of the cause of trouble. In case several problems exist, a common cause that may be related to them can also be easily found.



Symptom Troubleshooting
- Symptom troubleshooting shows diagnosis procedure, inspection method, and proper action to take for each trouble symptom.

Diagnostic Inspection
- Inspection methods necessary for troubleshooting are shown per each trouble symptom.
- Efficient troubleshooting is made possible by following this inspection method.

System Inspection
- Inspection items necessary for troubleshooting are shown per each system.
- Efficient troubleshooting is made possible by this system inspection.
