Home >> Mazda >> 1997 >> Protege ES L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Trailing Arm

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

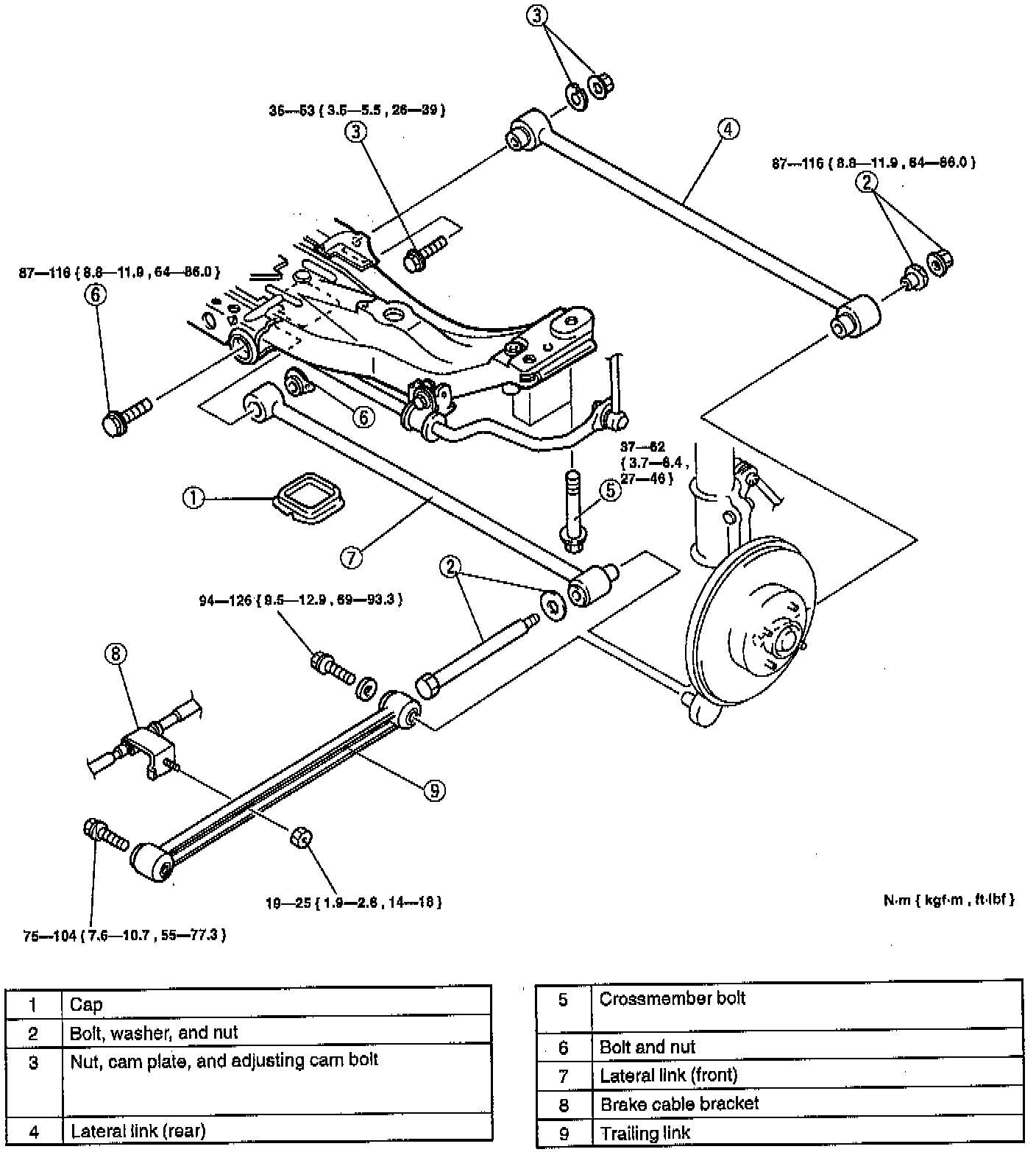

Trailing Arm
