Engine Lubrication System: Notes

NOTE: Oil pump is inside of front cover. See cross-sectional view of engine oil circuit. See Fig 1.

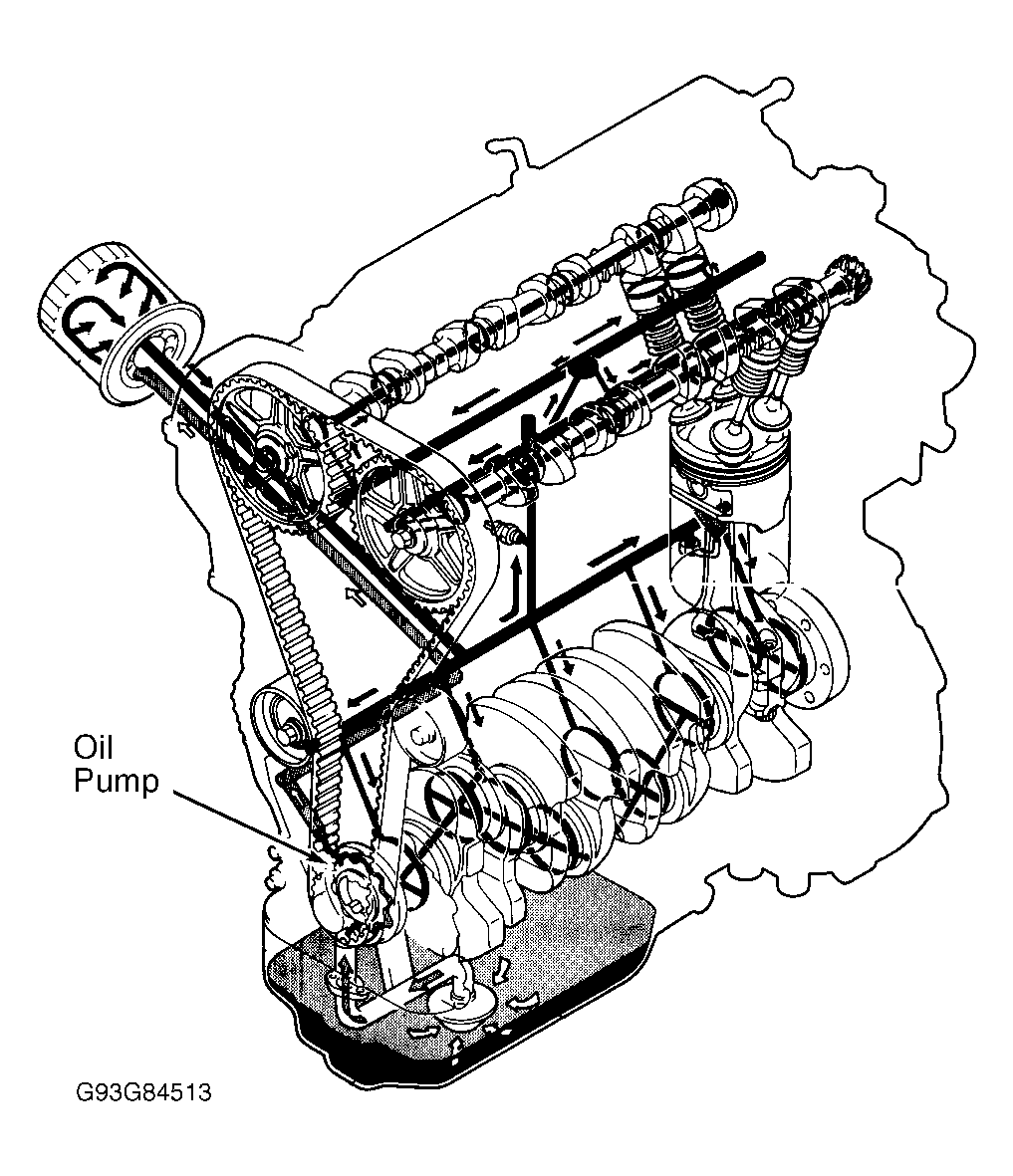

Fig 1: Cross-Sectional View Of Engine Oil Circuit
G93G84513Courtesy of MAZDA MOTORS CORP.
