Heater Control Unit Disassembly / Assembly




1. Remove the heater control unit.

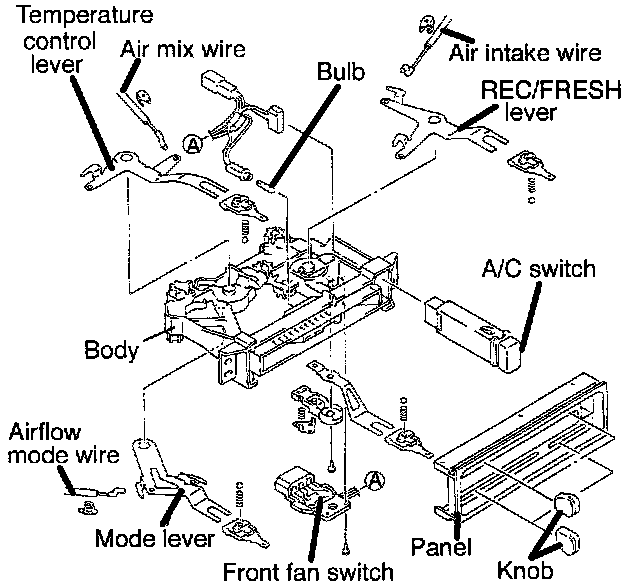

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
