Cruise Control Servo: Service and Repair




1. Disconnect the negative battery cable.
2. Disconnect the actuator cable and vacuum hose from the cruise actuator.

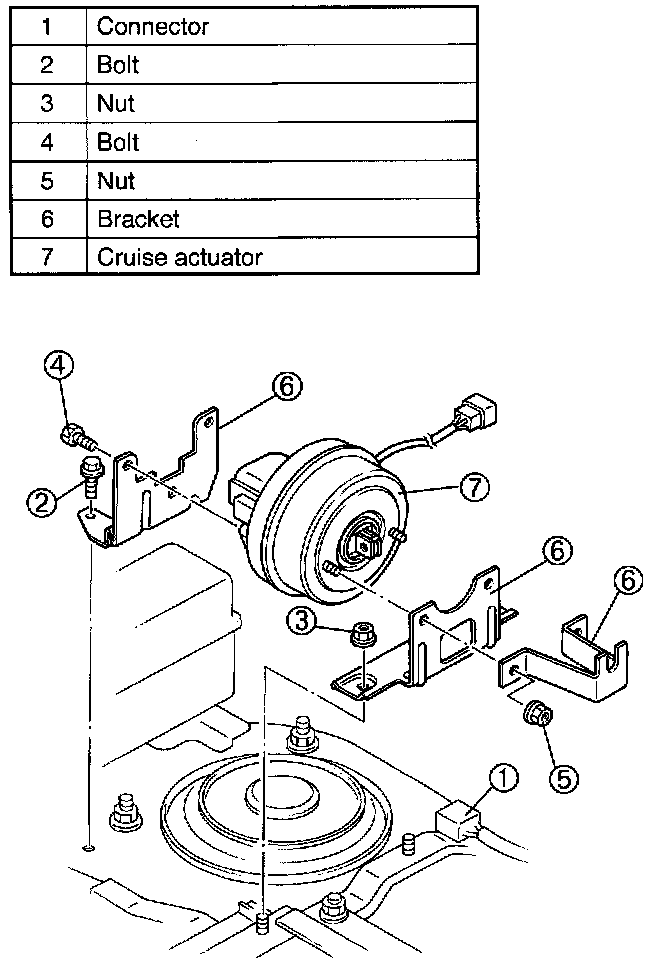

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Connect the actuator cable and vacuum hose.
6. Connect the negative battery cable.
7. Adjust the actuator cable.
